2 ZONE2 STEREO/MONO system
• When two speakers are being used in ZONE2, select “STEREO” for the ZONE2 channel setting at “7-1. Channel Setup” in the System
Setup Menu. Stereo sound can be enjoyed in ZONE2.
• When only one speaker is being used in ZONE2, select “MONO” for the ZONE2 channel setting at “7-1. Channel Setup” in the System
Setup Menu. In this case, monaural sound can be enjoyed in ZONE2.
AVR-5805DVD player
Input
RC-616
Monitor
MAIN ZONE 9.1-channel system
ZONE2 AUDIO OUT
(VARIABLE OUT)
ZONE2
VIDEO OUT
SYSTEM REMOTE
CONTROL UNIT RC-995
Integrated amplifier or
power amplifier
Monitor

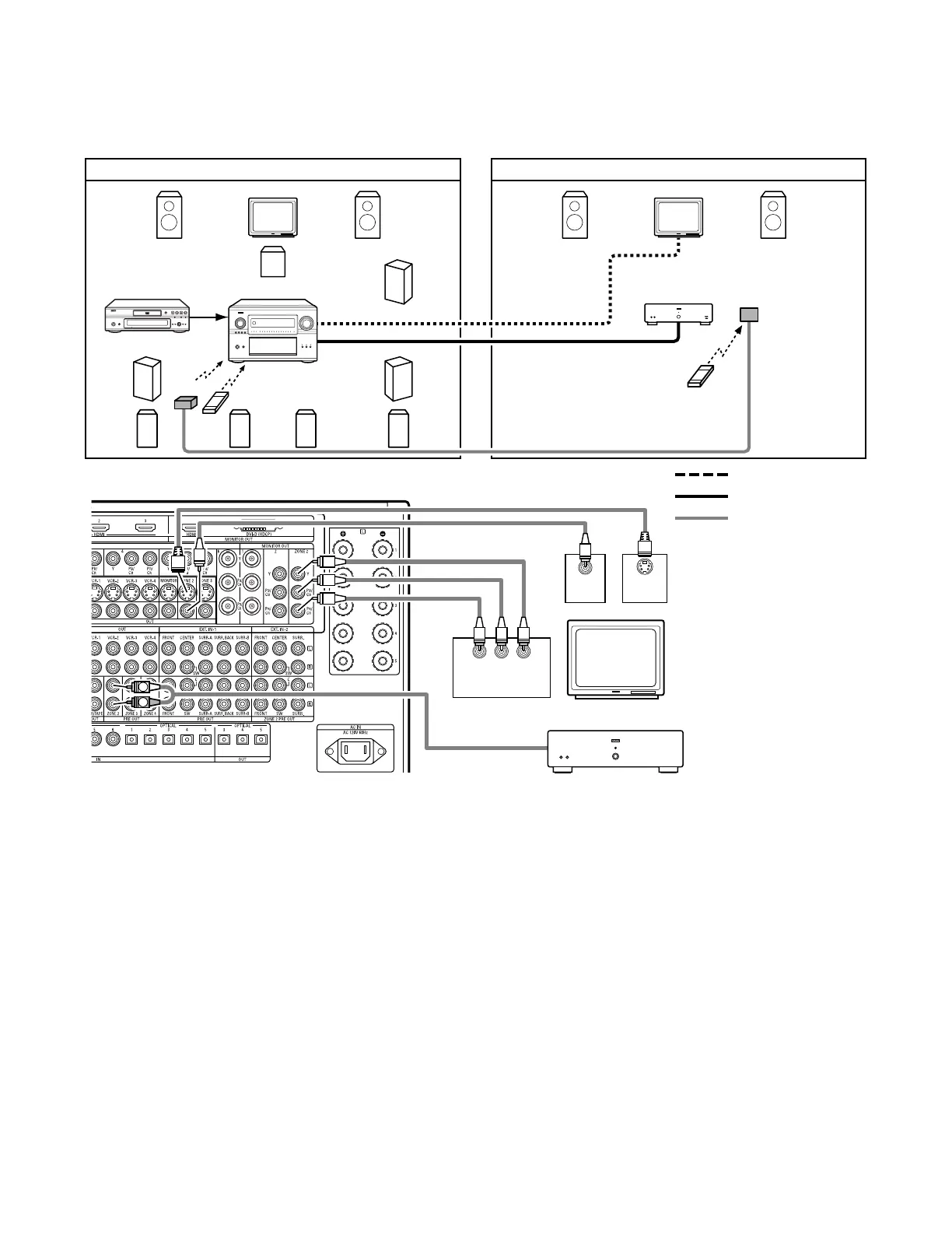

ZONE2 STEREO/MONO system
RC-617
PROGRAMMABLE
REMOTE CONTROL UNIT
C
FL FR
SL
A
SW
SR
A
FL FR
B
SB
R
SR
B
SB
L
SL
B
PB
COMPONENT
VIDEO IN
YPR
VIDEO
IN
S-VIDEO
IN
L
R
Monitor TV
Integrated amplifier or
power amplifier
MULTI SOURCE AUDIO signal cable
ZONE2 VIDEO signal cable
ROOM-TO-ROOM REMOTE CONTROL
SYSTEM (separately sold) control line
