Controller to Controller with Fiber Optic
Link, Signal Line Circuit Classication
Class B or X per NFPA 72.
Up to twelve EQP controllers (single or
redundant pair) can be inter-connected via
a fiber optic link. This communication link is
classified as a signaling line circuit per NFPA
72 to allow safety information to be transferred
between controllers.
The fiber optic link incorporates media
converters to convert from copper to fiber
optic cable. The converter must be located in
the same cabinet as the controller and cannot
use ground fault monitoring. The approved
supported converters are shown in Table
3-9. The link budget for the listed fiber optic
converters is 10dB.
WARNING
The fiber converters must be mounted
inside the same enclosure as the
controllers to conform to NFPA 72.
1
P25
3
1
P26
3
P24
1
3
RS-232 Receive LED (Green)
RS-232 Receive LED (Green)
RS-485 Transmit LED (Amber)
RS-485 Transmit LED (Amber)
RS-485 Termination Jumper
P25: RS-485 Termination Jumper
P3: RS-485 Ground Fault
MonitorJumper
A B
Channel
Indicators
RS-485 Receive LED (Green)
RS-485 Receive LED (Green)
RS-232 Transmit LED
(Amber)
RS-232 Transmit LED (Amber)
LON COM 2
Termination Jumper
LON COM 1
P25
1
3
P3
1
3
P12
PORT 4
P11
PORT 3
P10
PORT 2
P
O
R
T
1
EAGLE QUANTUM PREMIER
Safety System Controller
Fire Alarm
Inhibit
Power
SuprHigh Gas
Trouble
Cntrl Flt
Lon FaultLow Gas Ack Silence
Out Inhibit
Eagle Quantum Premier
Time & Date
Cancel Enter Next Previous Reset Acknowledge Silence
DET-TRONICS
®

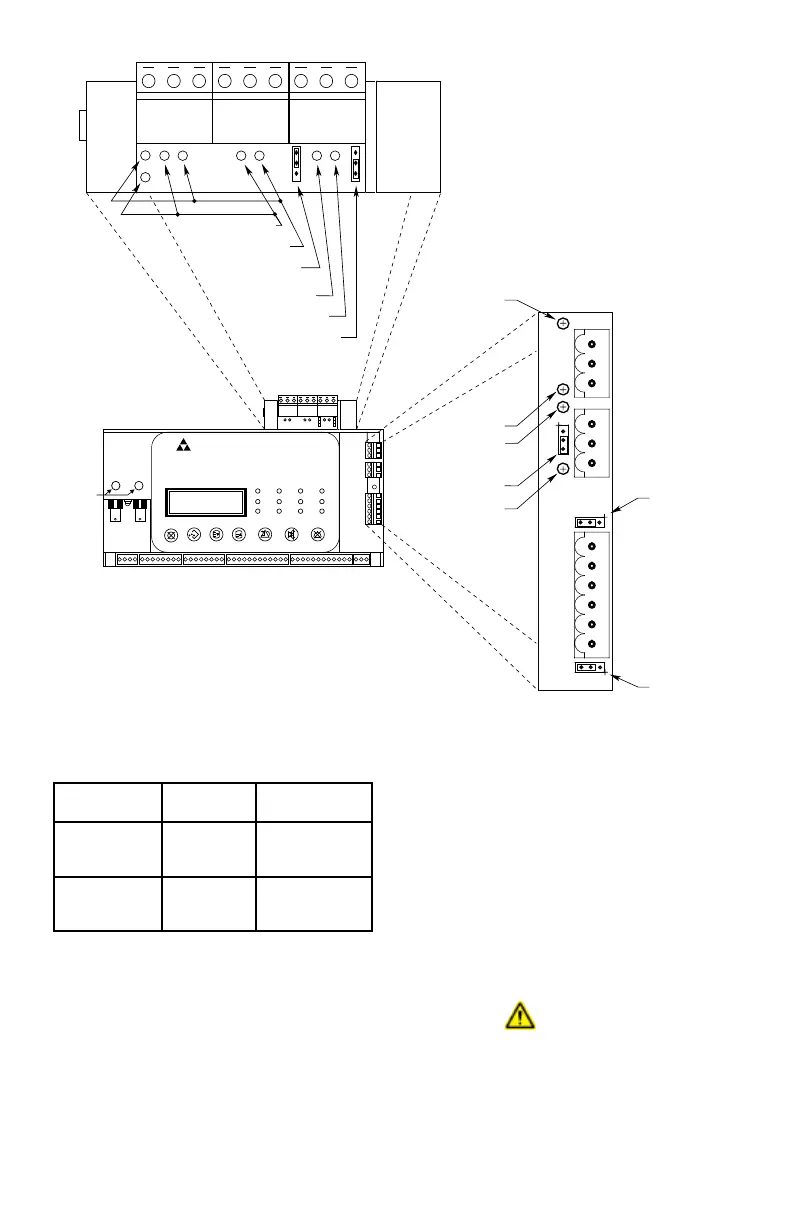

Figure 3-10A—Location of Termination Jumpers, Communication Indicator LEDs, and Communication Ports
for Controller with Serial Interface Board
Table 3-9—Approved Supported Media Converters
for Fiber Optic Link
Manufacturer
Model
Number
Description
Moxa
(www.moxa.com)
TCF-142-S
RS-485 to Single-
mode Fiber Optical
Converter
Phoenix Contact
PSI-MOS-
RS-485W2/
FO
RS-485 to Multi-
mode Fiber Optical
Converter
