Develop ineo 161 - Image Reading Section: Uneven Image Density

17. Image quality problem Field Service Ver. 1.0 Apr. 2005
162
ineo 161 ineo 210
Troubleshooting

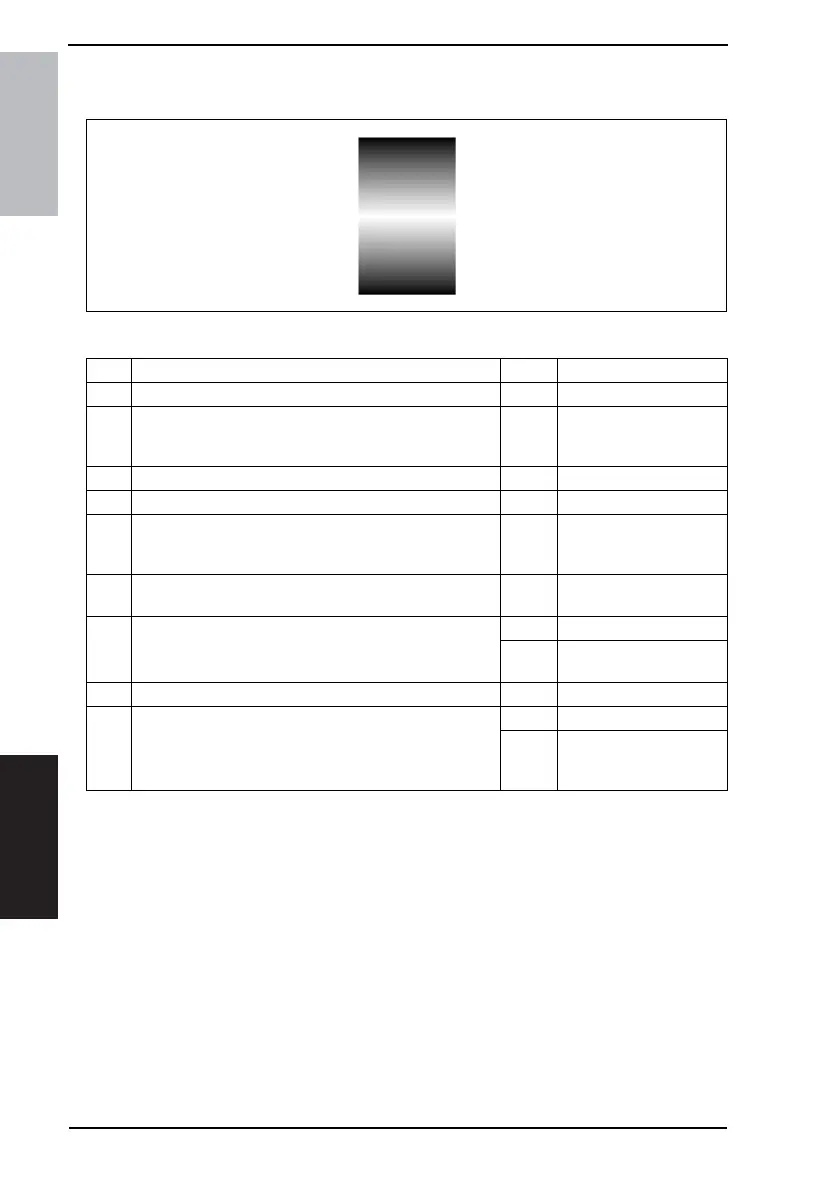

17.2.8 Image Reading Section: Uneven image density
A. Typical Faulty Images
B. Troubleshooting Procedure
4011T525AA
Step Check Result Action
1 Original Glass is dirty, scratchy, worn, or damaged. YES • Clean or change.
2
Shading sheet reading portion (the portion on the back-
side of the Original Glass to which Original Width Scale is
affixed) is dirty.
YES • Clean.
3 Scanner mirrors are dirty, scratchy, or damaged. YES • Clean or change.
4 Exposure Lamp (LA2) is dirty. YES • Clean or change.
5
CCD Unit lens and CCD surface are dirty or scratchy.
<Check Procedure>
Remove lens cover to check for possible contamination.
YES • Clean or change.
6
Exposure Lamp is abnormally lit (flickers or abnormally
dark) when the Power Switch is turned ON.
NO • Go to step 8.
7 Inverter Board (PU2) connector CN1PU2 is loose.
YES • Reconnect.
NO
• Change Exposure
Lamp (LA2).
8 CCD Board (PWB-J) connector is loose. YES • Reconnect.
9 Control Board (PWB-C/C) connector is loose.
YES • Reconnect.
NO
• Change CCD Unit.
• Change Control Board
(PWB-C/C).
