ineo 161 ineo 210
Maintenance

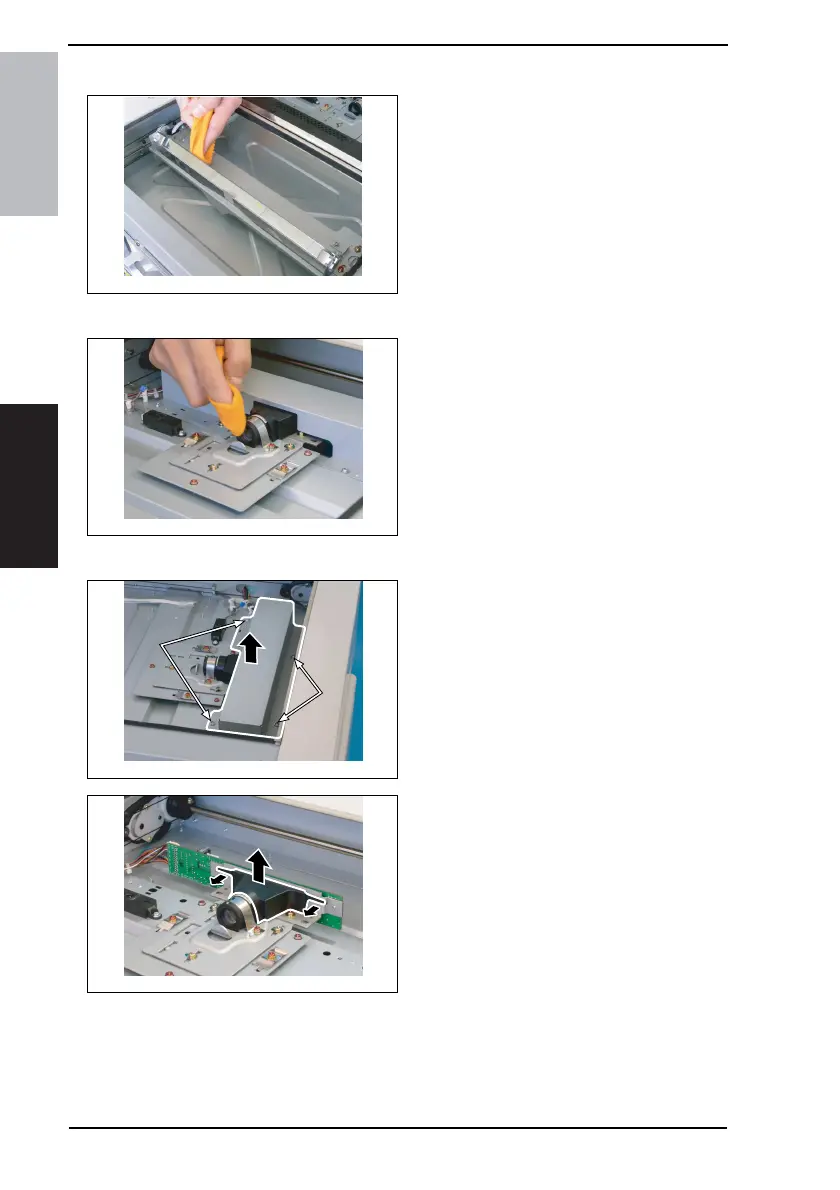

6.4.6 Mirrors
1. Remove the Original Glass.
☞ 31
2. Using a soft cloth dampened with
alcohol, wipe the mirrors clean of
dirt.
6.4.7 Lens
1. Remove the Original Glass.
☞ 31
2. Using a soft cloth dampened with
alcohol, wipe the Lens clean of dirt.
6.4.8 CCD Sensor
1. Remove the Original Glass.
☞ 31
2. Remove four screws and the CCD
Unit Cover.
3. Pulling the tabs on both sides of the
Lens Cover, remove the Lens Cover.
4035D014AB
4035D015AA
4035D016AA
4035D017AA
