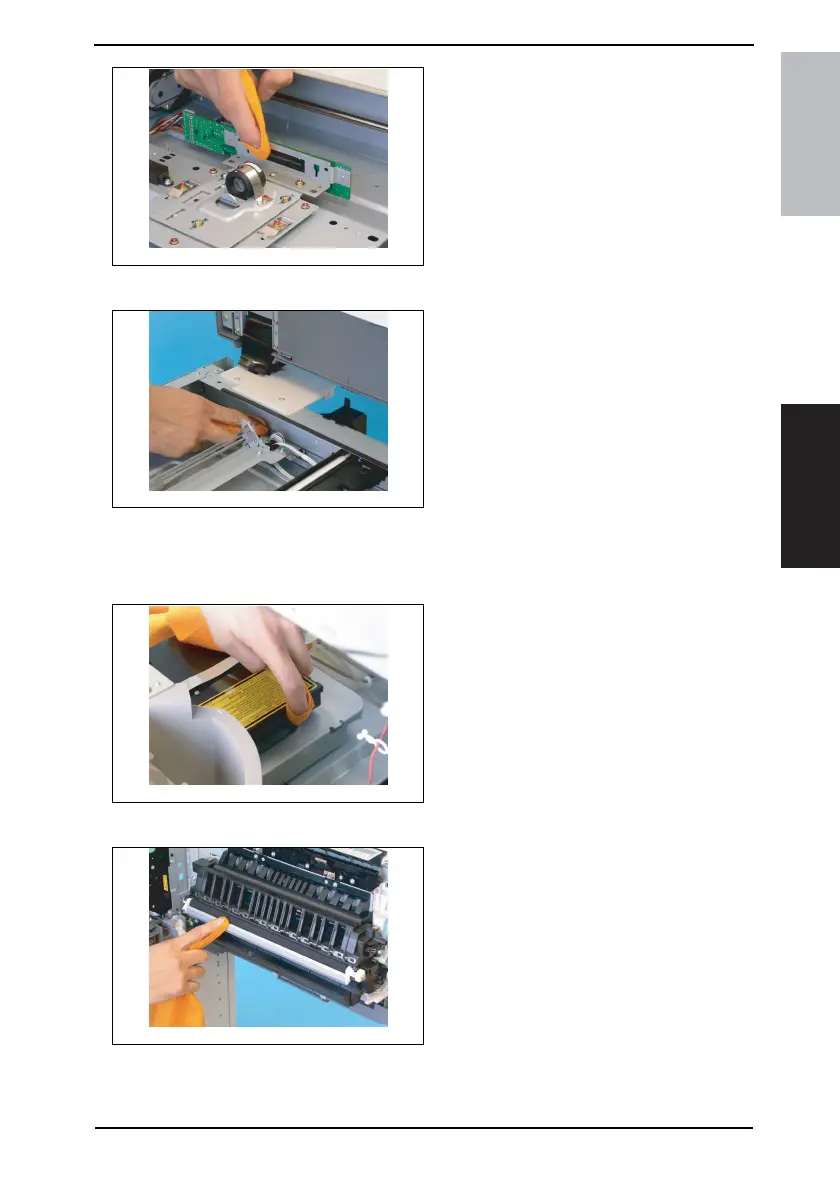

Develop ineo 161 - PH Window; Pre-Image Transfer Lower Guide Plate; Scanner Rails;Bearings

Field Service Ver. 1.0 Apr. 2005 6. Other
63
ineo 161 ineo 210
Maintenance
4. Using a soft cloth dampened with
alcohol, wipe the CCD Sensor clean
of dirt.
6.4.9 Scanner Rails/Bearings
1. Remove the Original Glass.
☞ 31
2. Using a soft cloth dampened with
alcohol, wipe the Scanner rails and
Bearings clean of dirt.
NOTE
• After the Scanner rails and Bear-
ings have been cleaned, apply oil
(copier lubricant A or FLOIL 947P).
6.4.10 PH Window
1. Remove the Front Cover, Left Cover, and Exit Tray.
☞ 31
2. Using a soft cloth dampened with
alcohol, wipe the PH window clean
of dirt.
6.4.11 Pre-Image Transfer Lower Guide Plate
1. Open the Right Door.
2. Using a soft cloth dampened with
alcohol, wipe the Pre-image Trans-
fer Lower Guide Plate clean of dirt.
