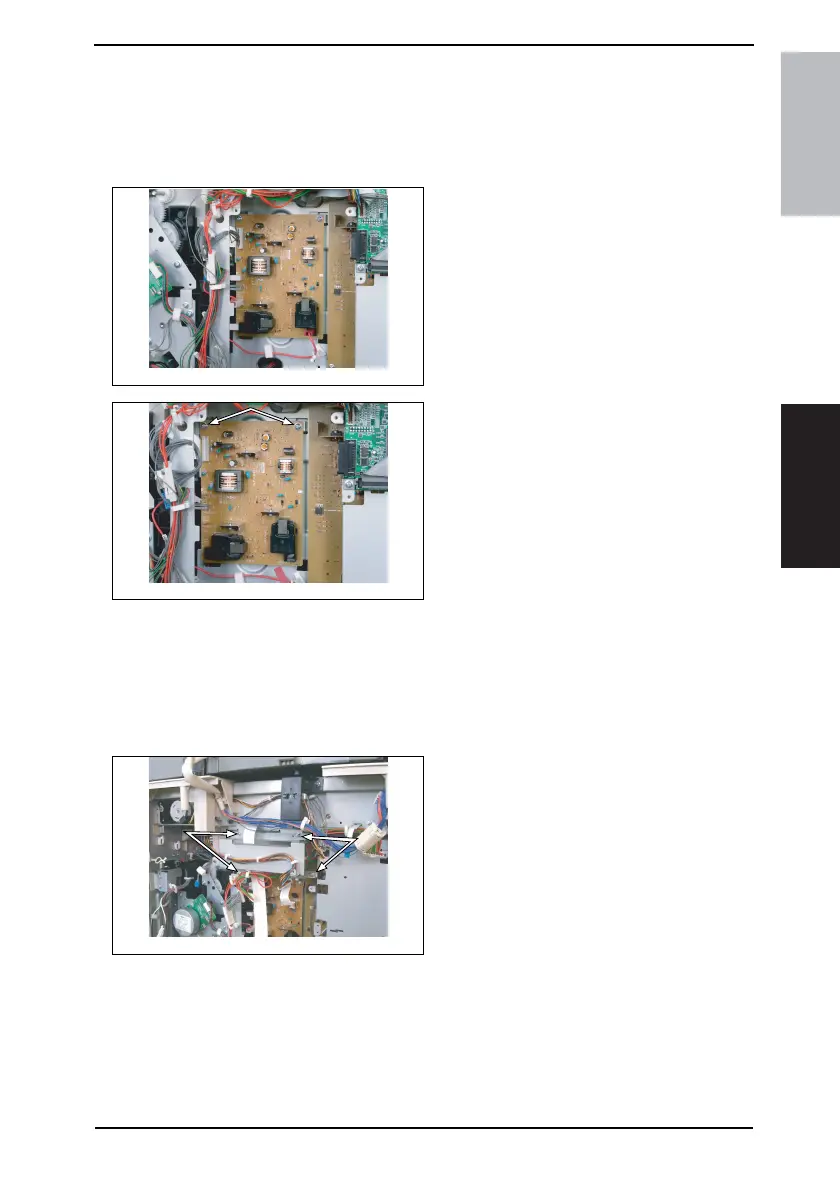

6.3.4 High Voltage Unit (HV1)
1. Remove the Rear Cover.
☞ 31
2. Remove the Master Board.
☞ 33
3. Unplug all connectors from the High
Voltage Unit.
4. Remove two screws and the High
Voltage Unit.
6.3.5 Power Supply Unit (PU1)
1. Remove the Left Cover, Rear Cover, and Upper Rear Cover.
☞ 31
2. Remove the Master Board.
3. Remove the Control Board.
☞ 33
4. Remove the harness from four wiring
saddles and one edge cover.
5. Remove four screws and protective
cover 1.
4035D054AA
4035D055AA
4035D522AA
