Field Service Ver. 1.0 Apr. 2005 6. Other
39
ineo 161 ineo 210
Maintenance

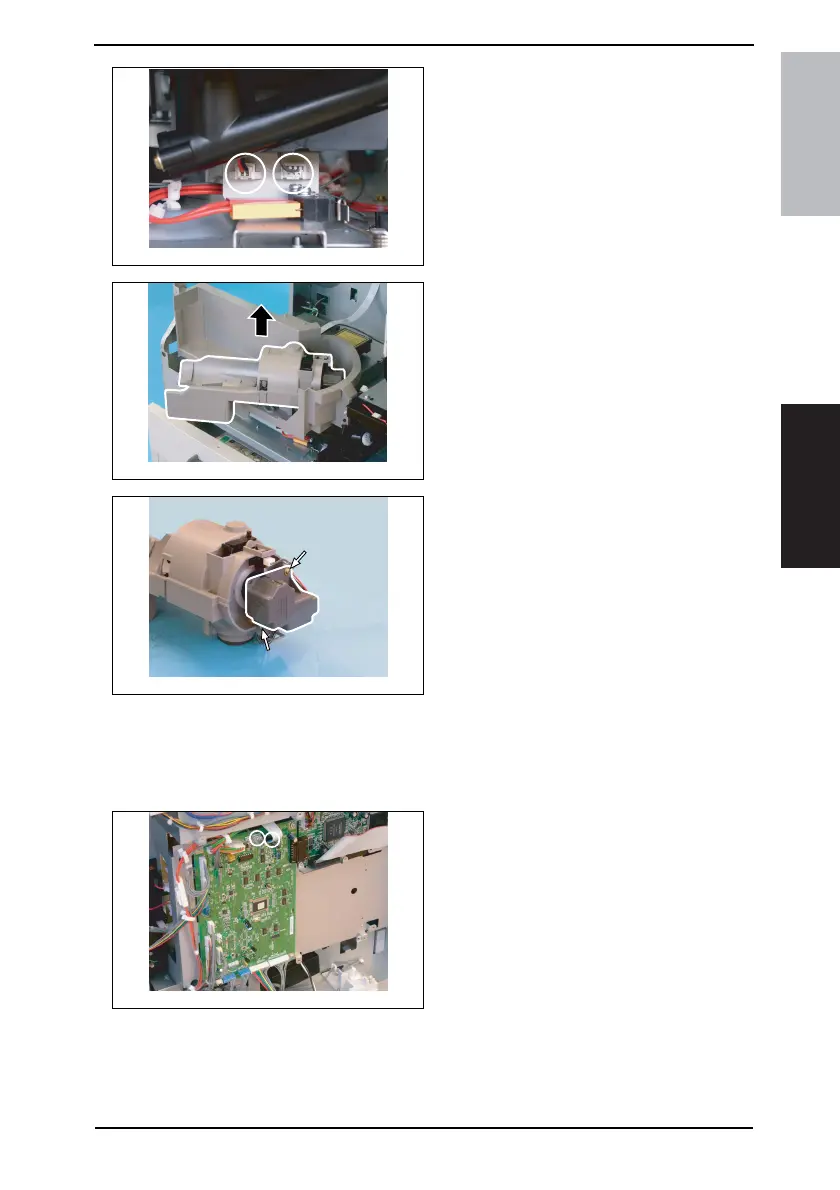

4. Unplug two connectors.
5. Remove the Toner Hopper Unit.
6. Remove two screws and the Toner
Replenishing Motor.
6.3.12 PH Unit
1. Remove the Front Cover, Left Cover, Rear Cover, Paper Exit Tray, and Rear Inside
Cover.
☞ 31
2. Disconnect one flat cable and one
connector from the Master Board.
4035D063AA
4035D064AA
4035D065AA
4035D066AA
