Develop ineo 161 - Master Board (PWB-A); Control Board (PWB-C;C)

Field Service Ver. 1.0 Apr. 2005 6. Other
33
ineo 161 ineo 210
Maintenance

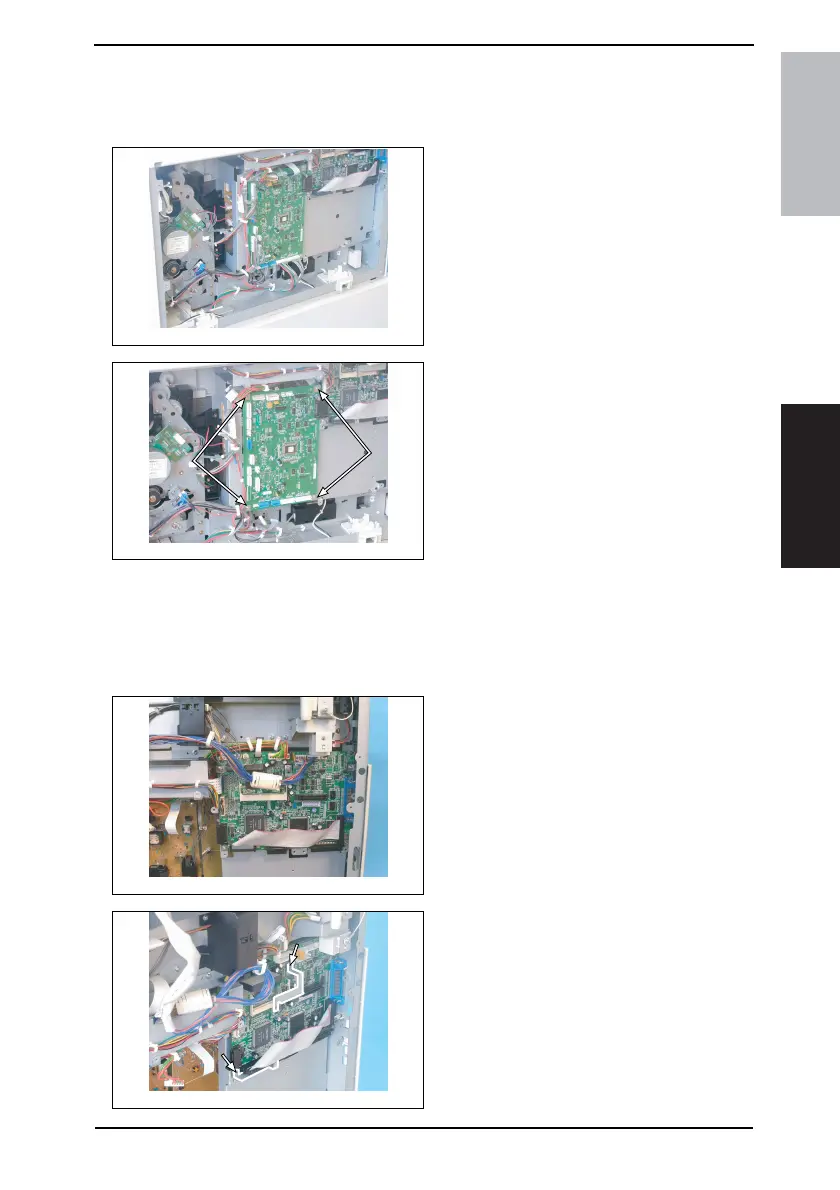

6.3.2 Master Board (PWB-A)
1. Remove the Rear Cover.
☞ 31
2. Unplug all connectors from the Mas-
ter Board.
3. Remove four screws and the Master
Board.
6.3.3 Control Board (PWB-C/C)
1. Remove the Rear Cover and Upper Rear Cover.
☞ 31
2. Remove the Master Board.
☞ 33
3. Unplug all connectors from the Con-
trol Board.
4. Remove two screws and two hold-
ers.
4035D049AA
4035D050AA
4035D051AB
4035D052AA
