10
MAINTENANCE
106 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]
• Close the fuel cap
10.6 - Safety stickers:
Inspection
• Check that all safety stickers are intact and in
good condition.
NOTE
Refer to the chapter "Safety Stickers Cleaning" for
cleaning the safety stickers.

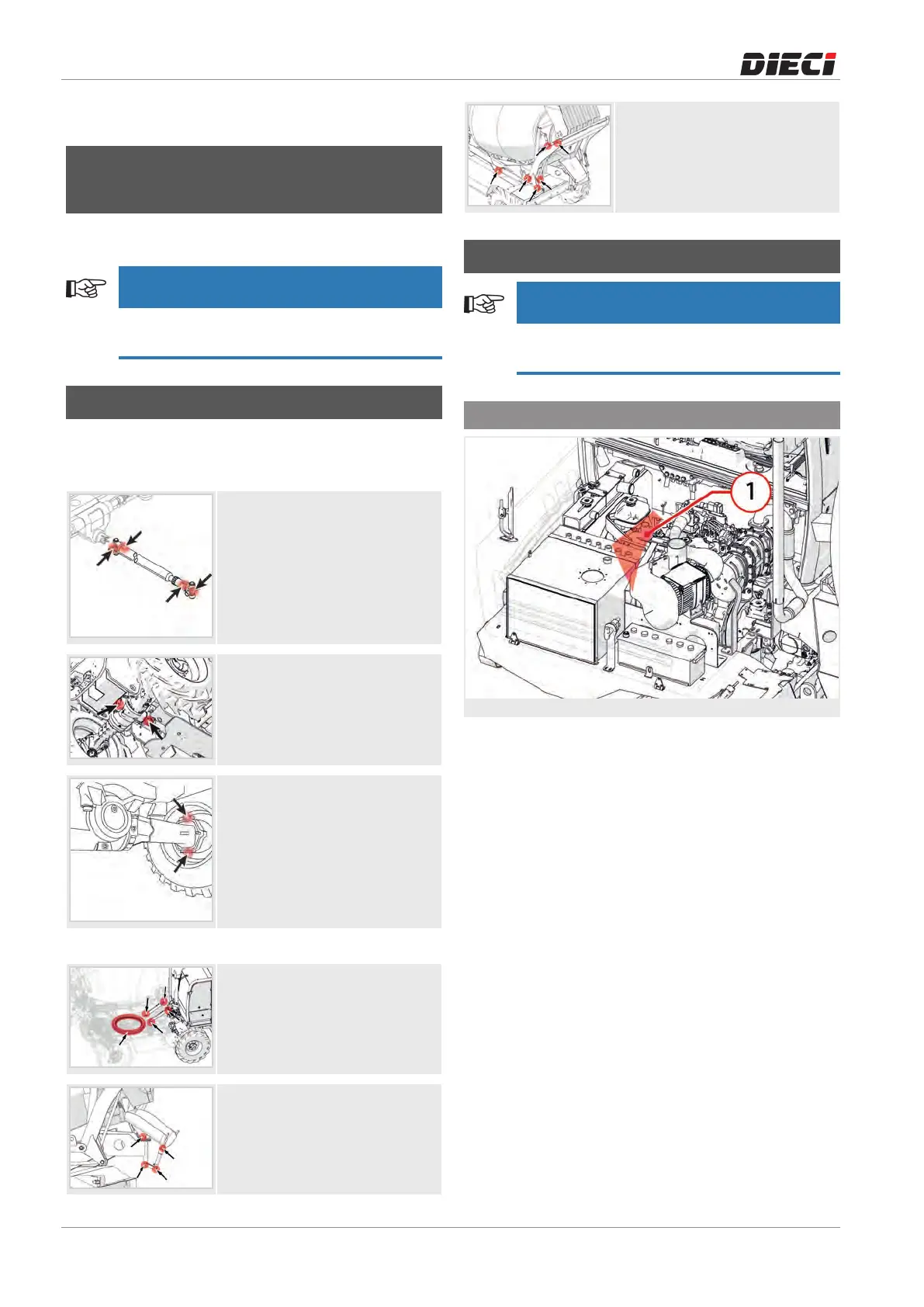

10.7 - Lubrication
Lubricate the points shown in the figure until grease
comes out and clean the lubricators from dirt or
deposits.
Drive shafts lubrication points.
Swinging axle lubrication points.
Wheels lubrication points.
Lubrication points for drum lifting
cylinders and drum rotation fifth
wheel (if any).
Unloading chute lubrication
points.
Loading shovel lubrication points
(if installed)
10.8 - Engine maintenance
NOTE
For the engine maintenance operations, refer to it
manual.
10.8.1 - Belts: Check and adjustment
Figure: 150726-1
Check that the belt “1” (fig. 150726-1) does not have
cuts, cracks or rubbing signs; when in doubt, install a
new belt.
Make sure that the belt is properly fit on the pulleys
and that the tensioner is working properly.
NOTE! If the belt does not appear in good
condition, replace it with a new one.
