COMPONENTS DESCRIPTION 7
AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A] 65
7.1.5.2 - Air temperature adjustment
To adjust the temperature of the air coming out of the
vents, turn the knob “2” (fig. 161208-1):
• Turning the knob clockwise (in the red scale) the
temperature increases.
• Turning the knob counterclockwise (in the blue
scale) the temperature decreases until it is next to
the outside temperature.
7.1.6 - Air conditioning *
NOTE
* Air conditioning is an optional accessory.

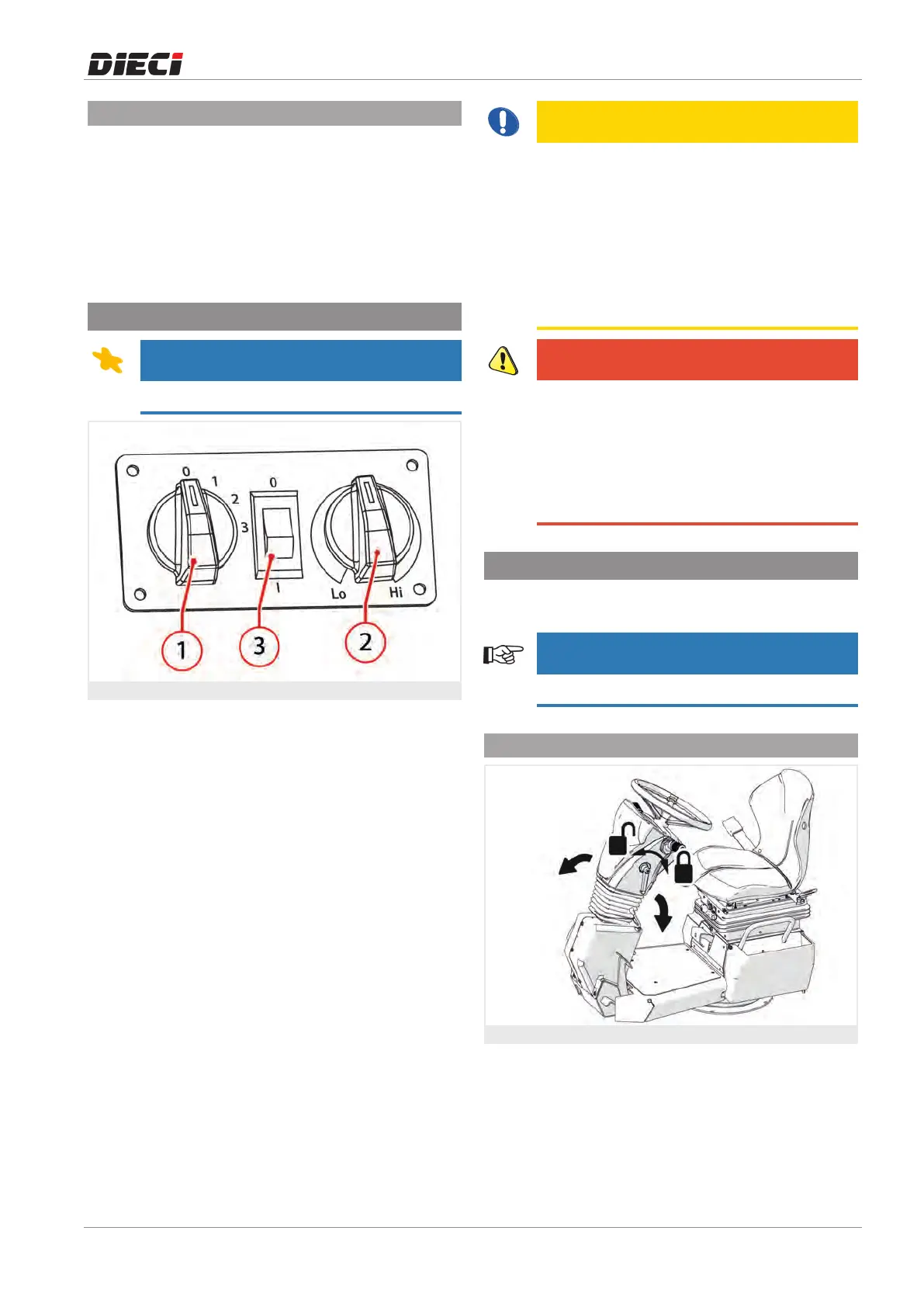

Figure: 161209-1
For a correct use of air conditioning, follow the
following steps (fig. 161209-1):
1. Check that all doors and windows are closed.
2. Check that the heater is turned off by moving the
lever towards the end of the blue scale.
3. With the engine running, turn on the air
conditioning moving the switch “3” in position
“I”.
4. Turn the knob to adjust the airflow “1” to select
the desired intensity.
5. Open and adjust the vents to obtain the best
cooling according to the ambient temperature.
6. Turn the temperature knob “2” to obtain the
desired temperature.
ATTENTION
Turn on the air conditioning two minutes,
every 15 days, even in the colder seasons
with the engine idling (without
accelerating). In this way the moving
parts, such as the compressor and the
system in general are lubricated.
To keep the air conditioning system efficient
keep the condenser clean.
DANGER
Do not loosen any hose of air conditioning
systems in order to reach the capacitor
since the contact between the skin and
the refrigerant can cause frostbite.
For maintenance and deadlines, see the
"Maintenance" chapter.
7.1.7 - Steering wheel
The steering wheel of the machine allows steering the
machine wheels according to the steering mode set.
NOTE
Refer to the "Steering selector" chapter.
7.1.7.1 - Steering wheel adjustment
Figure: 151116-1
To adjust the steering wheel angle (fig. 151116-1):
1. Turn the steering wheel adjustment lever down
to unlock the movements.
2. Push the steering wheel forward or pull it
towards yourself to the desired position.
3. Push down or pull up on the steering wheel to
the desired height.
