VEHICLE DESCRIPTION
48 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]
5.1 - Left side components description

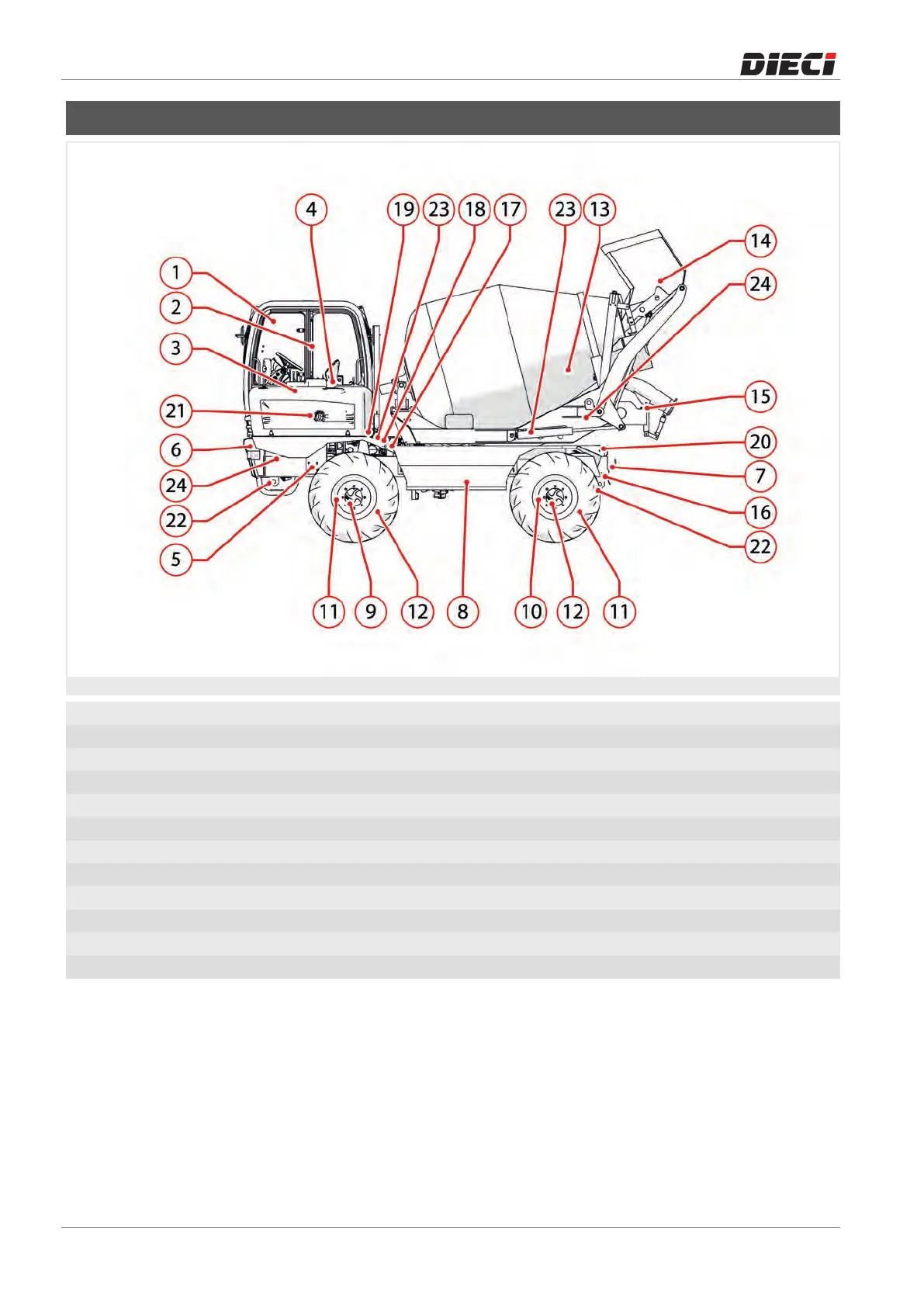

Figure: 161172-1 - Left side description
1 Cab 2 Cab glass on engine side (optional)
3 Engine hood 4 Exhaust pipe
5 Chassis 6 Front lights
7 Rear lights 8 Water tank
9 Front axle 10 Rear axle
11 Wheel 12 Epicycloidal reduction gear
13 Drum 14 Loading shovel
15 Unloading chute 16 Chute extension (optional)
17 External drum rotation controls 18 Emergency stop button
19 Pressure washer (optional) 20 Fuel tank filler cap
21 Battery isolation switch 22 Anchoring or tow hitch
23 Hook for lifting 24 -
