DANGER
Always check the good condition of the
anchors (ropes, chains, wedges, etc...).
Make sure that the lifting equipment is adequate
for the weight of the vehicle to be lifted.

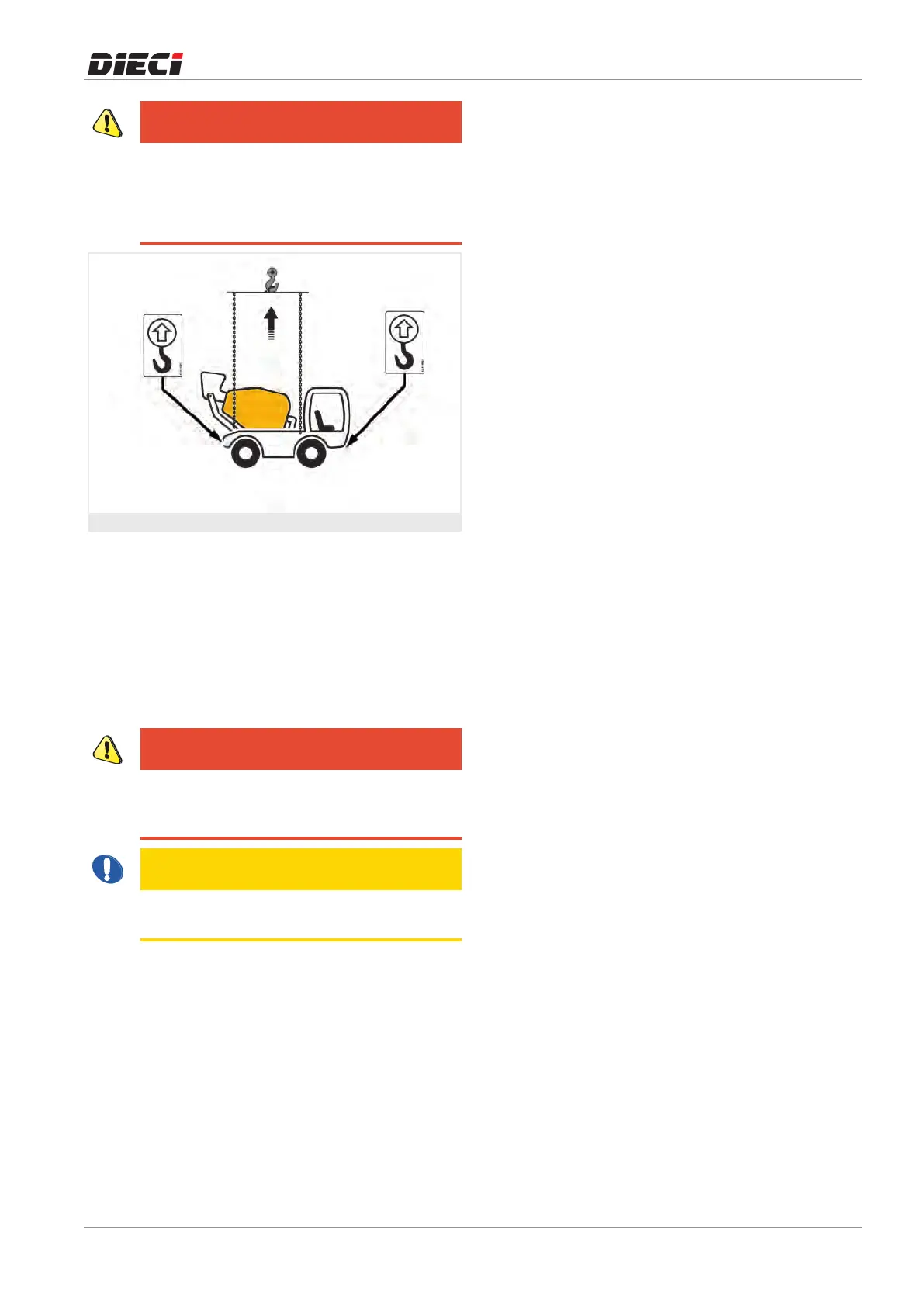

Figure: 150522-1
The weight of the vehicle is shown on a special riveted
metal plate; check the overall dimensions for the
maximum and minimum height valuesfrom the
ground and the weight allowed.
The vehicle is fitted with lifting points, marked by
special symbols (fig. 150522-1).
Attach the ropes at the points indicated in the figure,
paying utmost attention during the lifting phases.
Slowly proceed with the lifting.
DANGER
Before lifting the vehicle, make sure no
unauthorised personnel are in the surrounding
area.
ATTENTION
Lifting cables with a minimum unit capacity of 6
tons (13220 lb) are required.
Before lifting the vehicle, make sure to:
• Remove any equipment installed on the vehicle.
• Align the drum to the frame (if installed).
• Lift the loading shovel (if installed ) and fasten it
with the appropriate chain.
• Engage the parking brake, place and the
movement selection lever at “N” and switch off
the vehicle.
• Close all windows and the cab door (if installed).
