Dieci L3500 - Truck Mixer AB L4700

19
TECHNICAL DATA
140 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]
19.2 - Truck mixer AB L4700

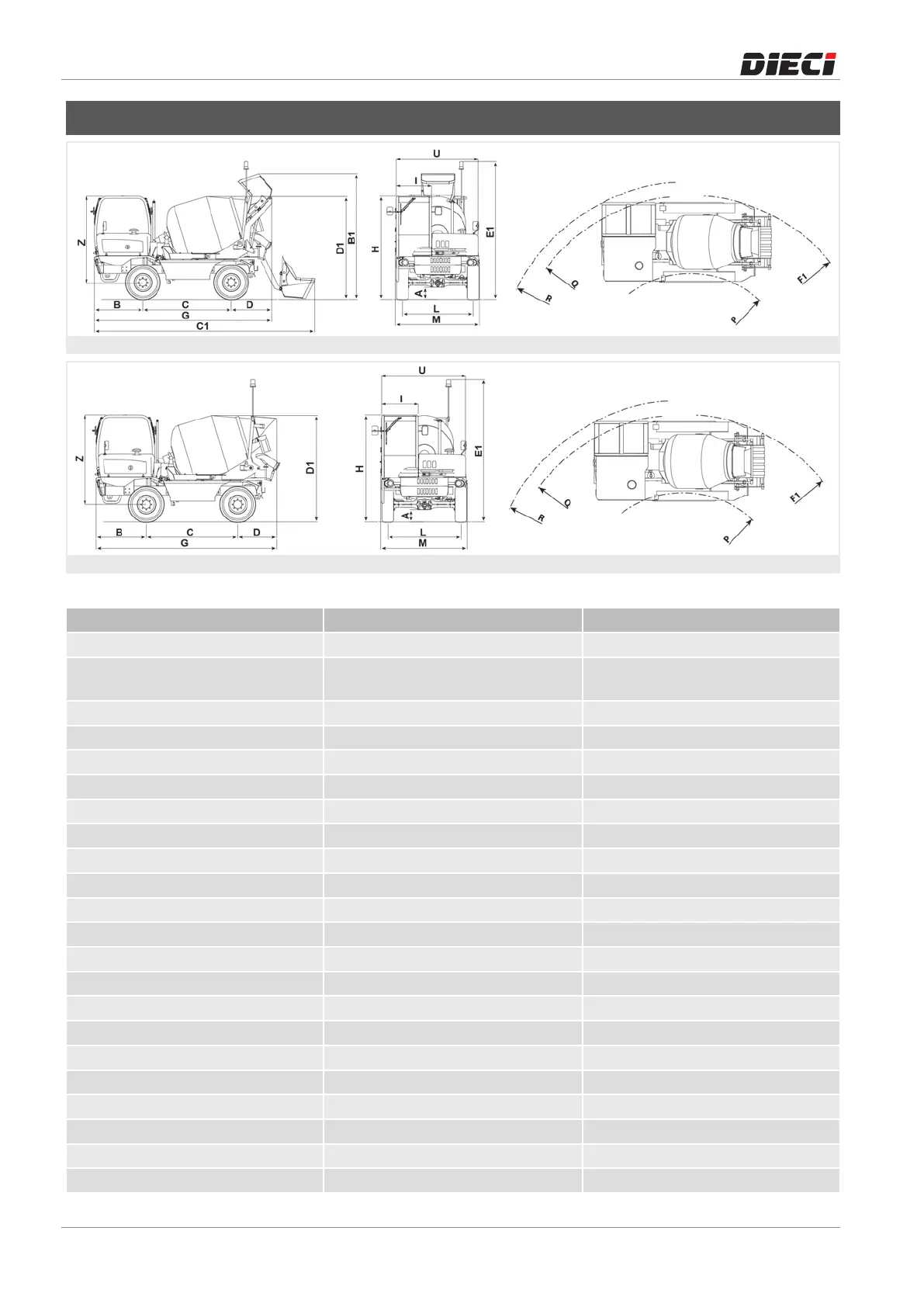

Figure: 161175-1: Dimensions with loading shovel
Figure: 161175-2: Dimensions with loading hopper
MAG3522 MAG3523
Vehicle model AB L 4700 AB L 4700 T
Notes Self-priming water pump. Self-priming water pump. Loading
from hopper.
Sector CONSTRUCTION CONSTRUCTION
Homologation LH684 LH684
Technical type 682 682
Version - -
A 360 mm (14,2 in) 360 mm (14,2 in)
B 1380 mm (54,3 in) 1380 mm (54,3 in)
C 2500 mm (98,4 in) 2500 mm (98,4 in)
D 1640 mm (64,6 in) 1410 mm (55,5 in)
G 5520 mm (217,3 in) 5290 mm (208,3 in)
H 3140 mm (123,6 in) 3140 mm (123,6 in)
I 1000 mm (39,4 in) 1000 mm (39,4 in)
L 1980 mm (78 in) 1980 mm (78 in)
M 2400 mm (94,5 in) 2400 mm (94,5 in)
P 3000 mm (118,1 in) 3000 mm (118,1 in)
Q 5370 mm (211,4 in) 5370 mm (211,4 in)
R 5740 mm (226 in) 5740 mm (226 in)
U 2310 mm (90,9 in) 2310 mm (90,9 in)
Z 2440 mm (96,1 in) 2440 mm (96,1 in)
B1 3820 mm (150,4 in) -
C1 6660 mm (262,2 in) -
