10.12 - 2 speed transmission
maintenance
10.12.1 - Oil change: Inspection
1
2

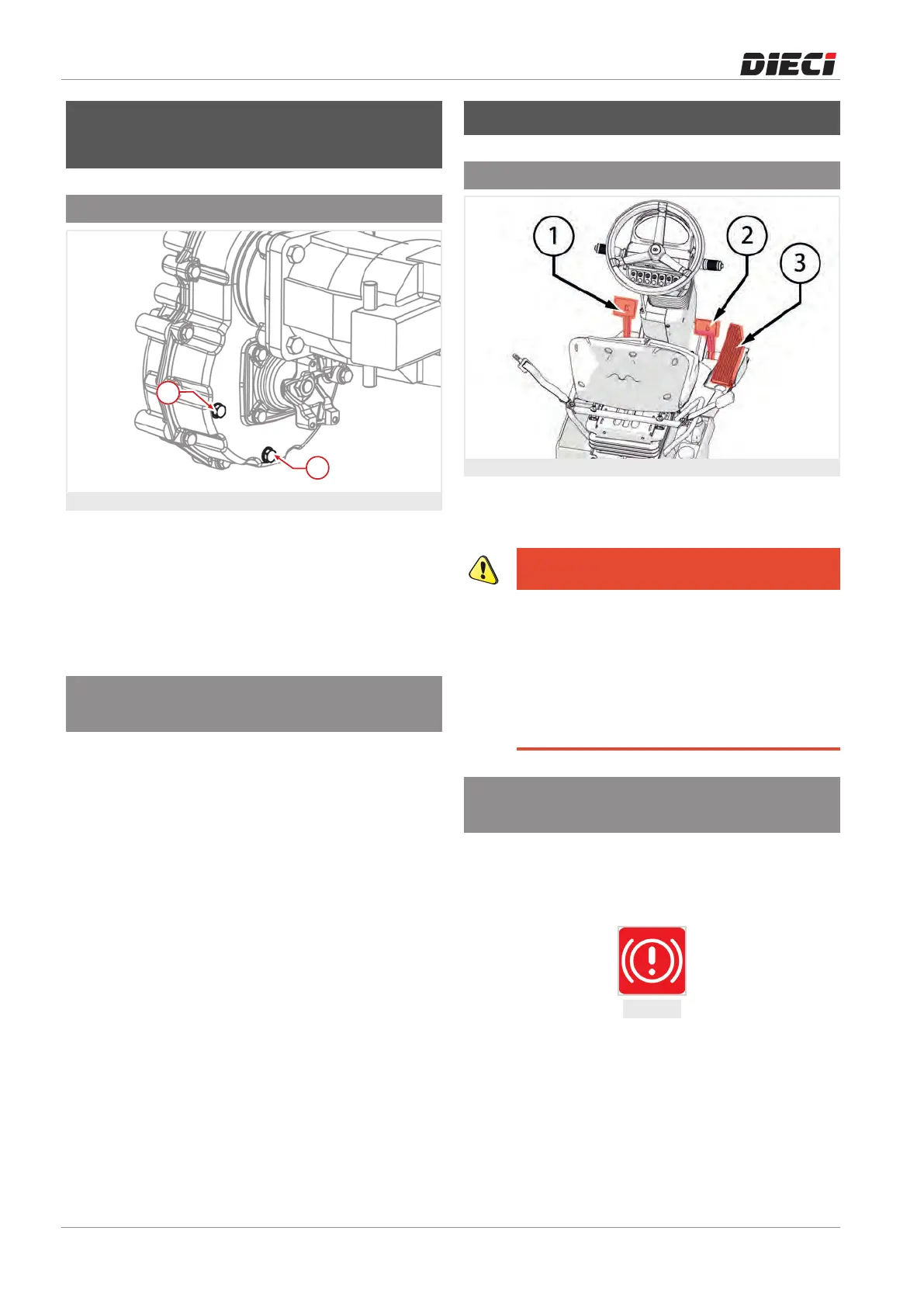

Figure: 150619-1
• Set the vehicle in the maintenance position.
• Place a container under the gearbox.
• Take the level cap off “1” (fig. 150619-1), oil must
leak out from the hole.
• If necessary, top-up through the hole of the cap
until the oil seeps through
10.12.2 - Oil change: Check and
replacement
• Set the vehicle in the maintenance position.
• Place a container under the gearbox.
• Remove the level cap “1” (fig. 150619-1) and the
drain plug “2”.
• Allow the oil to completely drain out.
• Refit the drain plug and tighten it securely.
• Top-up with approved type of oil from cap “1”
until the oil seeps through.
10.13 - Brakes maintenance
10.13.1 - Brake: Inspection
Figure: 150708-1
Visually check that the joints of the pedals (fig.
150708-1) are not damaged and that the pedal stroke
is not excessive or too elastic.
DANGER
If irregularities in braking are noticed,
contact qualified personnel to verify the
cause of the trouble.
The braking parts also safeguard the operator's
safety, it is recommended not to intervene
personally on the braking system trying to
eliminate possible anomalies.
10.13.2 - Brakes oil: Check and
replacement
When the Brake fluid low level indicator light (fig.
151059-2) flashes on the central instrument, it means
that the brake fluid level has dropped below the
minimum (MIN) and therefore it must be restored.
151059-2
To access the tank, open the engine hood and check
that the oil level is always above the minimum level
(MIN) indicated on the tank “1” (fig. 151059-1). If
necessary top up from the cap.
