COMPONENTS DESCRIPTION 7
AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A] 87

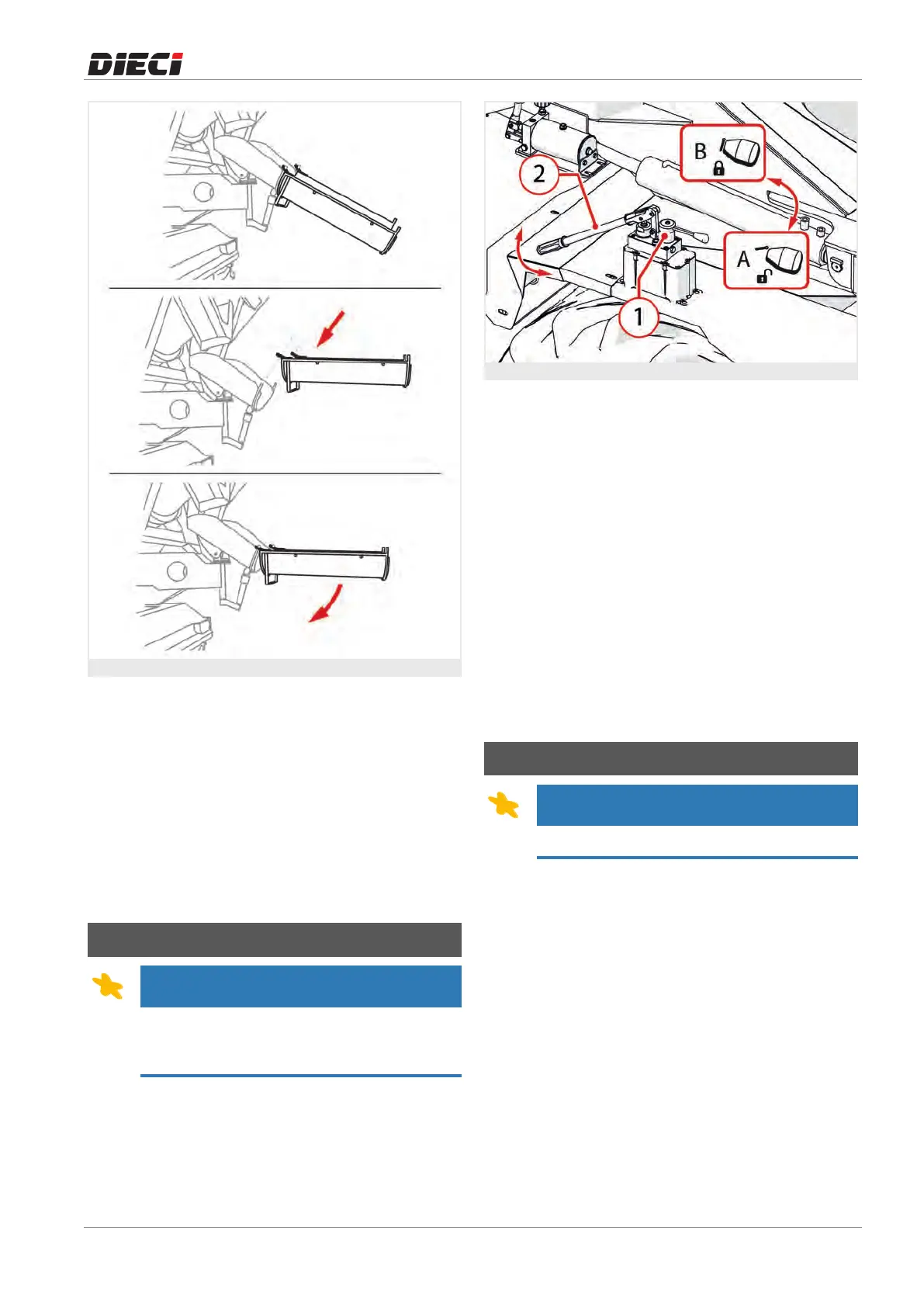

Figure: 161245-1
The extension chute (fig. 161245-1) allows the mixture
to be unloaded more precisely.
To install the chute extension it is necessary to:
• Remove the chute extension from its transport
housing,
• Insert the two closing mechanisms in the
housings on the chute while keeping this
horizontal.
• Lower the tip of the chute so as to fasten it to the
vehicle.
7.15 - Drum opening pump *
NOTE
* The drum opening pump is an optional
accessory, which is only present if the vehicle is
equipped with a loading hopper.
Figure: 161241-1
The drum opening pump (fig. 161241-1), allows the
drum opening to be adjusted to dose the amount of
mixture during the unloading phase or to close the
drum opening and allow a larger amount of mixture
to be transported, thereby preventing mixture being
lost during the trip.
To open the drum opening it is necesary to:
• Move the lever “1” in position “A”.
• Operate the lever “2” until the drum opening is
open.
To close the drum opening it is necesary to:
• Move the lever “1” in position “B”.
• Operate the lever “2” until the drum opening is
closed.
7.16 - Cement bag cutter *
NOTE
* The cement bag cutter is an optional accessory.
