7
COMPONENTS DESCRIPTION
62 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]

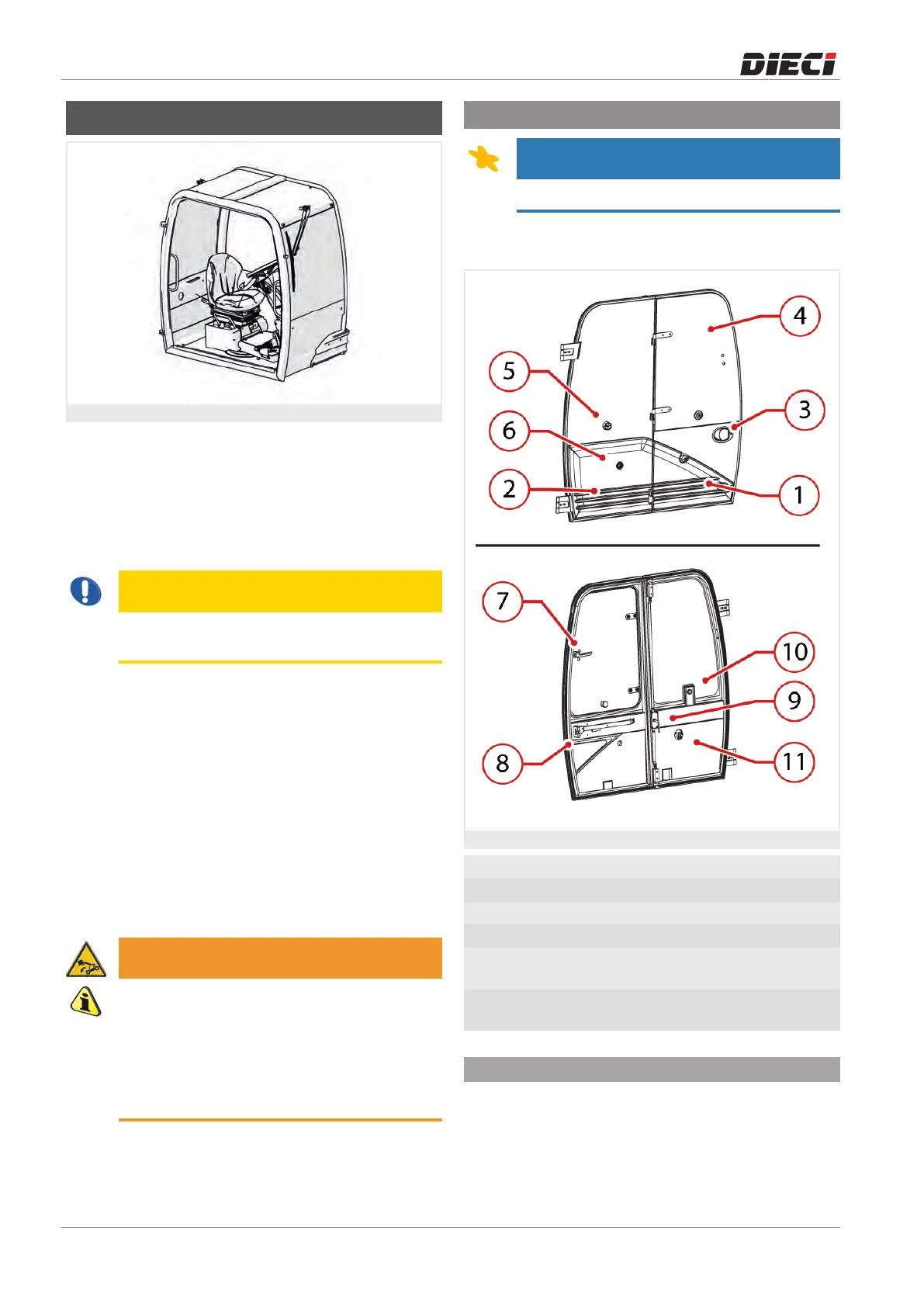

7.1 - ROPS - FOPS Cab
Figure: 161206-1
The vehicle is equipped with an approved cab:
• ROPS (Roll Over Protection Structure)
• FOPS (Falling Objects Protective Structure)
The operator is therefore protected in the event of
vehicle tipping and in the event of falling objects, as
prescribed for earth moving vehicles.
ATTENTION
The cab is a safety device and as such must be
always kept in the right conditions of use.
In case of cab tampering, the manufacturer has
no civil liability in case of an accident, therefore
it is absolutely forbidden to:
• Change, drill, or alter in any way the structure of
the cab.
• Weld or mechanically connect parts to the cab
chassis.
• If the fastening bolts are replaced, use elements
of different strength class.
• Connect chains or ropes to the cab for the
purpose of towing.
WARNING
In the case of vehicle tipping, staying in
the cab with fastened seat belts allows to
obtain a better protection.
If the cab has undergone visual damage it must
be replaced by consulting the authorized service
center or Dieci authorized workshop.
7.1.1 - Door *
NOTE
* The door is an optional accessory.
The door consists of the following main components:
Figure: 151110-1: Door
1 Main leaf 2 Secondary leaf
3 External handle 4 Openable glass
5 Open glass lock 6 Open door lock
7 Closed glass lock 8 Internal handle
9 Secondary leaf
opening handle
10 Glass unlock knob
11 Open door unlock
button
7.1.1.1 - Main leaf opening/closing
To open the door from the outside:
• Open the door using the ignition key
• Pull the handle “3” (fig. 151110-1) outward.
To open the door from inside the cab:
