COMPONENTS DESCRIPTION 7
AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A] 89
Figure: 161249-2
WARNING
It is recommended to not operate other
commands during the weighing phase so as not
to cause irreparable damage to the equipment
7.18 - Water pump
The water pump can be used for the following
functions:
• Fill the tanks of the vehicle by drawing water
from an external tank
• Supply the drum by drawing water from an
external tank
• Supply the drum by drawing water from the
tanks of the vehicle
• Wash the vehicle by drawing water from an
external tank
• Wash the vehicle by drawing water from its tanks
The water pump is used by positioning the taps
according to the guidelines in the relative chapter and
operating the pump from one of the control levers.
ATTENTION
It is forbidden to drive with the water
pump activated.
Disconnect the water pump once the pumping
operations are complete.
NOTE
Verify that the tanks of the vehicle are full before
commencing the pumping operations and
drawing from them.

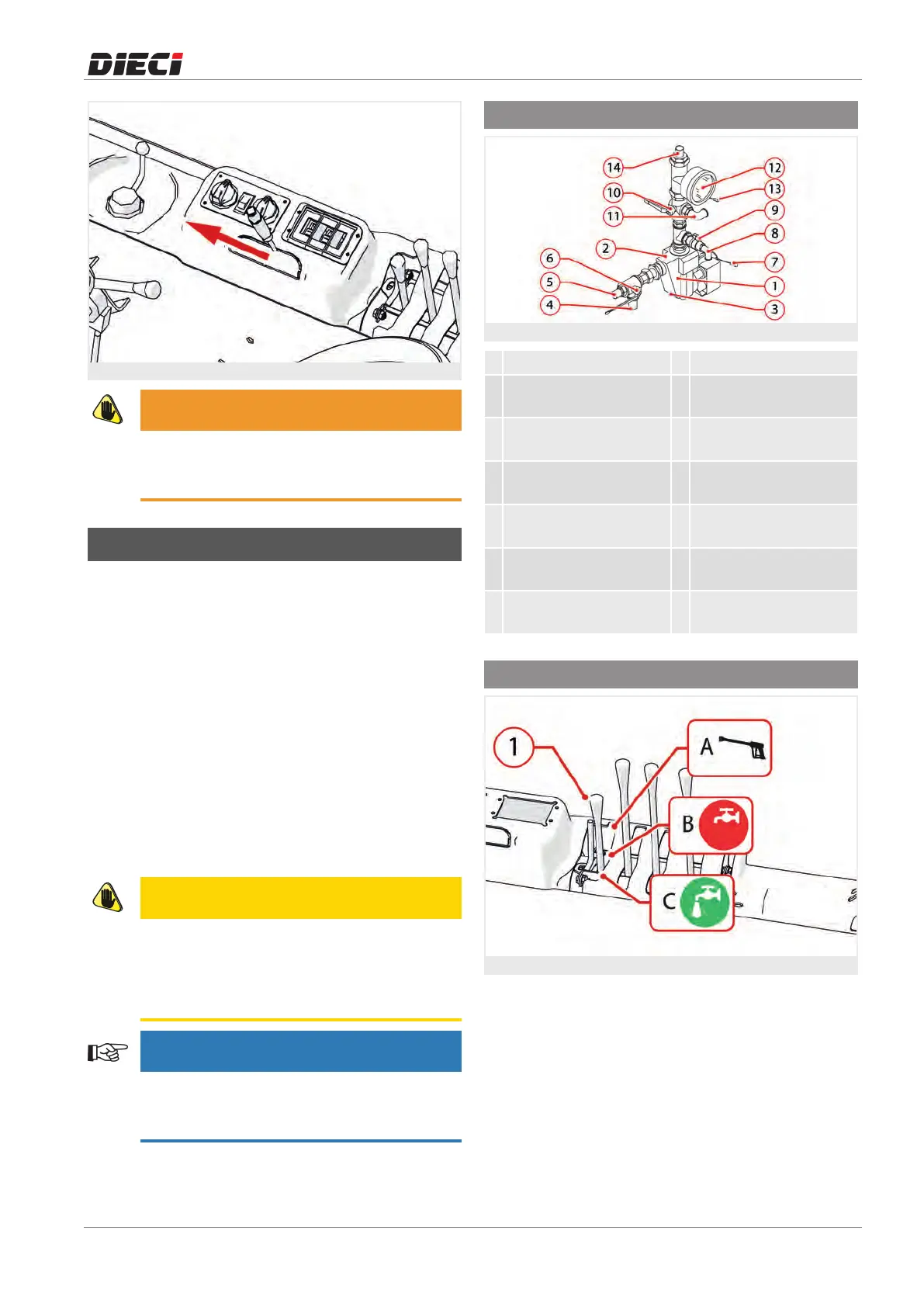

7.18.1 - Water pump description
Figure: 161244-1: Water pump description
1 Water pump 2 Water pump filler cap
3 Water pump drain cap 4 Pipe to draw water from
the tanks
5 Sleeve to draw water
from the tanks
6 Inlet tap: tank selection
7 Water pump control
external lever
8 Pressure washer or
vehicle washing sleeve
9 Washing tap 1
0
Outlet tap: drum or tank
selection
1
1
Water pipe to tanks 1
2
Liter meter
1
3
Liter meter reset lever 1
4
Water pipe to drum
7.18.2 - Water pump control lever
Figure: 161246-1
NOTE!Set the taps on the pump according to the
desired operation before operating the water pump
control lever.
The water pump control lever (fig. 161246-1) allows
the water pump or pressure washer to be activated (if
available as an optional).
• Set the lever to “A” to activate the pressure
washer (if available as an optional).
• Set the lever to “B” to switch the water pump off.
