7
COMPONENTS DESCRIPTION
64 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]

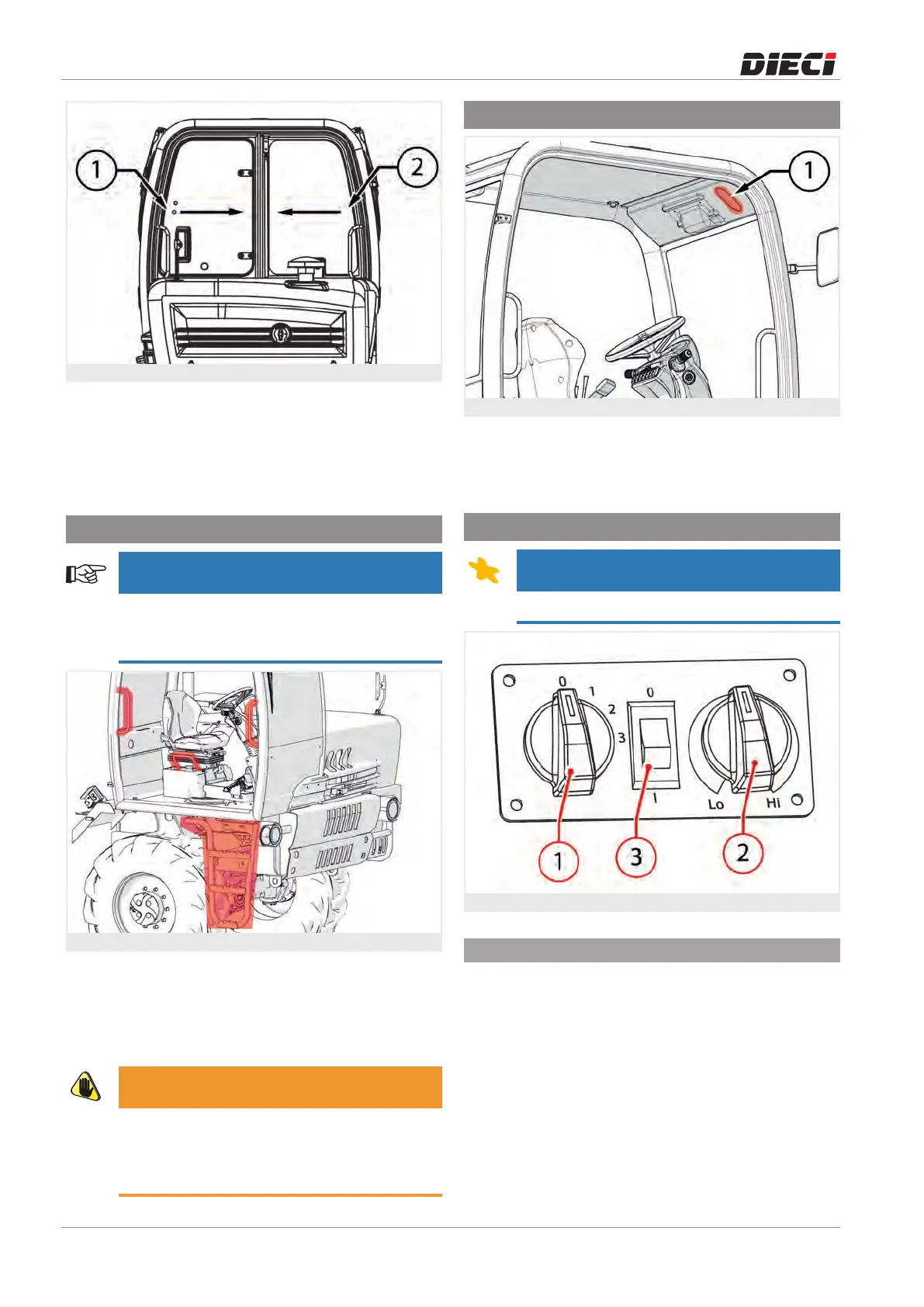

Figure: 151112-1
To open the glass on the engine side it is necessary to
press one of the handles located at the glass sides “1”
and “2” (fig. 151112-1) and drag on the side.
To close the glass drag the handle until the glass locks
at the end of the stroke.
7.1.3 - Climbing in/out
NOTE
Before climbing into the cab, make sure your
hands and your shoes are clean and dry to avoid
slipping and falling.
Figure: 161207-1
Use only the appropriate handles and steps to access
the cab, do not use the controls and the steering
wheel from inside.
Climb in and out of the vehicle always turned towards
the driver's cab.
WARNING
Climbing in and out of the cab is allowed only
when the vehicle is stopped with the parking
brake engaged. Do not leave the cab with the
vehicle in motion.
7.1.4 - Cab lighting
Figure: 151055-1
To turn on the lighting inside the cab act on the
overhead light pressing one of the ends “1”.
In the center position the lighting is turned off.
7.1.5 - Cab ventilation *
NOTE
* The cabin ventilation is an optional accessory.
Figure: 161208-1
7.1.5.1 - Ventilation adjustment
To adjust the ventilation turn the knob “1” (fig.
161208-1).
Clicks indicate respectively:
0 - Off
1 – First speed
2 - Second speed
3 - Third speed
