COMPONENTS DESCRIPTION

92 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]

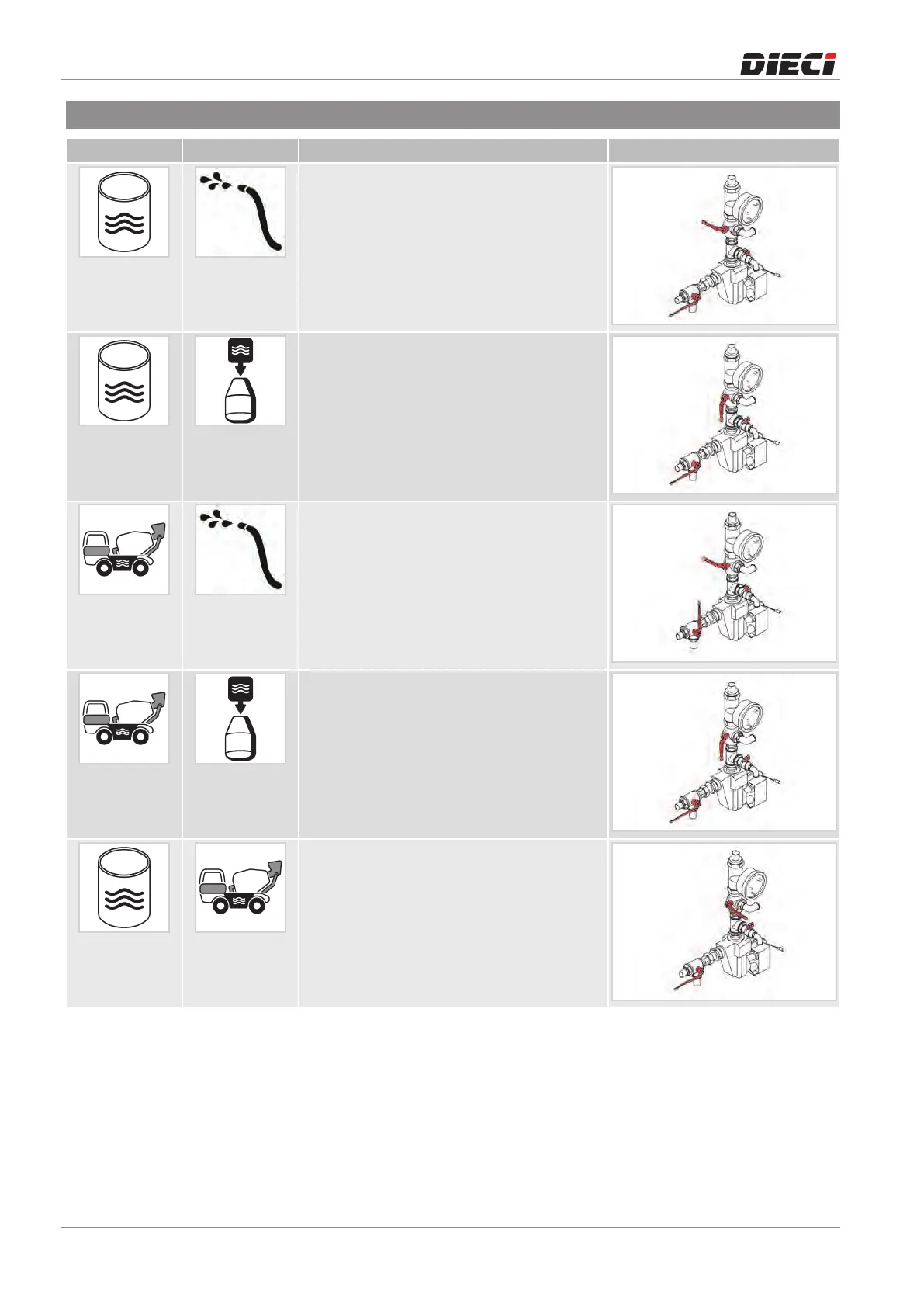

7.18.7 - Position of the taps

Input Extension Description Position of the taps

External water

tank

Vehicle washing

Outlet tap: To the left

Washing tap: Open

Inlet tap: To the left

External water

tank

Drum

Outlet tap: Downwards

Washing tap: Closed

Inlet tap: To the left

Vehicle water

tank

Vehicle washing

Outlet tap: To the left

Washing tap: Open

Inlet tap: Upwards

Vehicle water

tank

Drum

Outlet tap: Downwards

Washing tap: Closed

Inlet tap: Upwards

External water

tank

Vehicle water

tank

Outlet tap: To the right

Washing tap: Closed

Inlet tap: To the left
