7.2 - Instrument panel
7.2.1 - Components

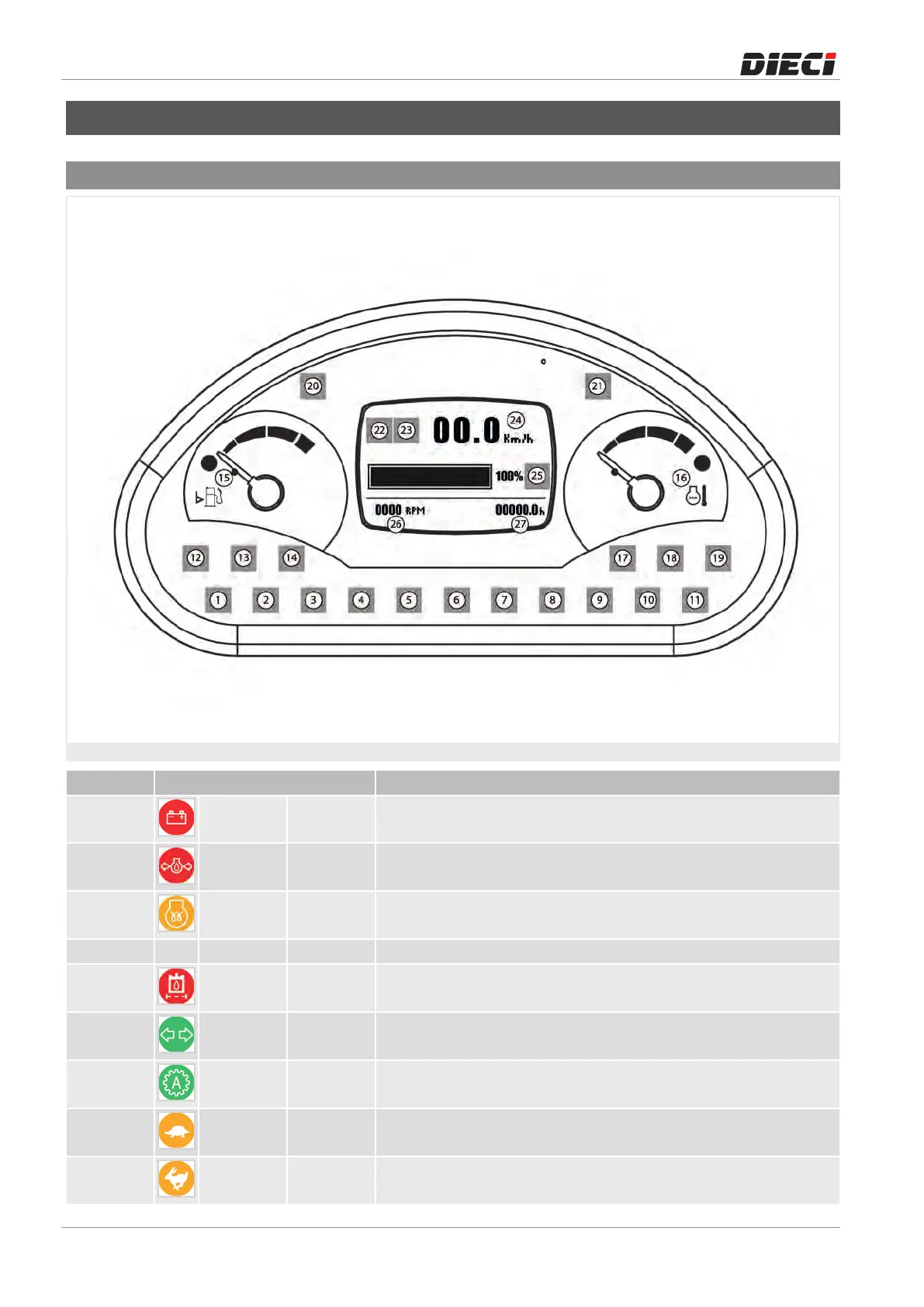

Figure: 161210-1: Dashboard description
Position Indicator light Description
1 Red Fixed Generator, battery failure
2 Red Fixed Engine oil low pressure
3 Yellow Fixed Glow plugs
4 Red Fixed Engine errors
5 Red Fixed Hydrostatic oil filter clogging
6 Green Fixed Direction indicators
7 Green Fixed Gear correctly engaged
8 Yellow Fixed Slow gear engaged *
9 Yellow Fixed Fast gear engaged *
