MAINTENANCE 10
AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A] 117

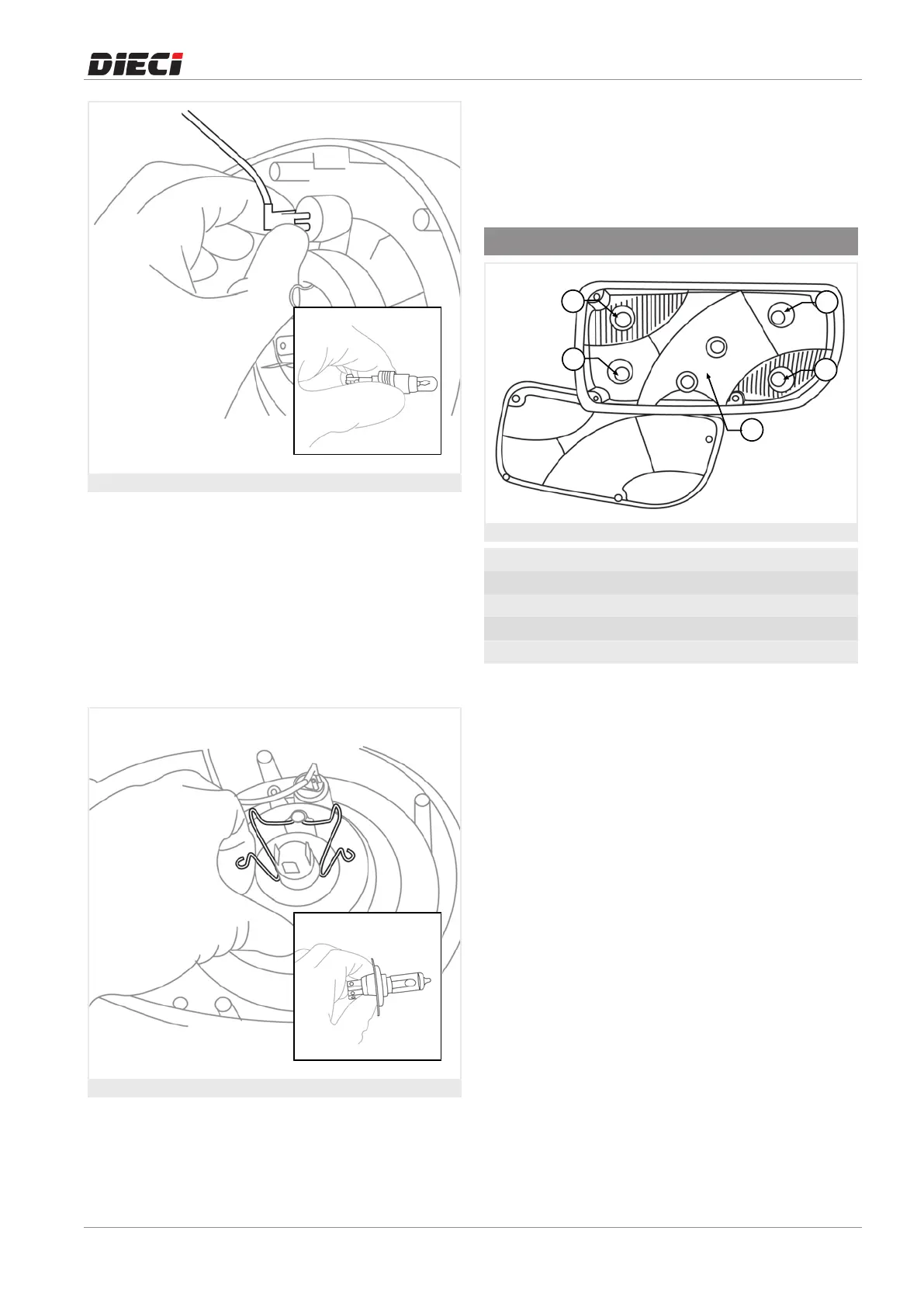

Figure: 150302-2
Sidelight bulb replacement
• Grasp the rear part where the electrical
connections are placed (fig. 150302-2).
• Turn and pull the rear part towards you.
• Extract the support, press the top of the bulb.
• Turn the bulb, keeping it pressed, to release it
from the lock.
• Perform the same procedure to insert the new
bulb. Put back the support inside its seat.
Figure: 150302-3
Low/high beam light bulb replacement
• Remove the electrical connector pulling it
towards you.
• Lift the locking tabs (fig. 150302-3) moving them
sideways to release the bulb.
• After replacing the bulb, proceed in the reverse
order to lock and connect it again. Observe the
joints of the lamp for proper insertion.
10.16.2 - Tail light
Figure: 120304-1
1 Reversing light - 21 W
2 Rear side light- 5 W
3 Braking light - 21 W
4 Direction indicator - 21 W
5 Rear fog light - 21 W
To access the bulbs:
1. Prepare the vehicle in the maintenance position.
2. Turn off the battery isolation switch to disconnect
power to the electrical system.
3. Remove the power supply connector on the back
of the light.
4. Remove the front of the headlight by loosening
the screws placed in the cap.
To close the headlight operate in the reverse order,
paying attention to correct positioning of the sealing
gasket.
Tail light bulb replacement.
• Press the top of the bulb.
• Turn the bulb, keeping it pressed, to release it
from the lock.
• Perform the same procedure in reverse order to
insert the new bulb.
