COMPONENTS DESCRIPTION
88 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]
Figure: 161242-1

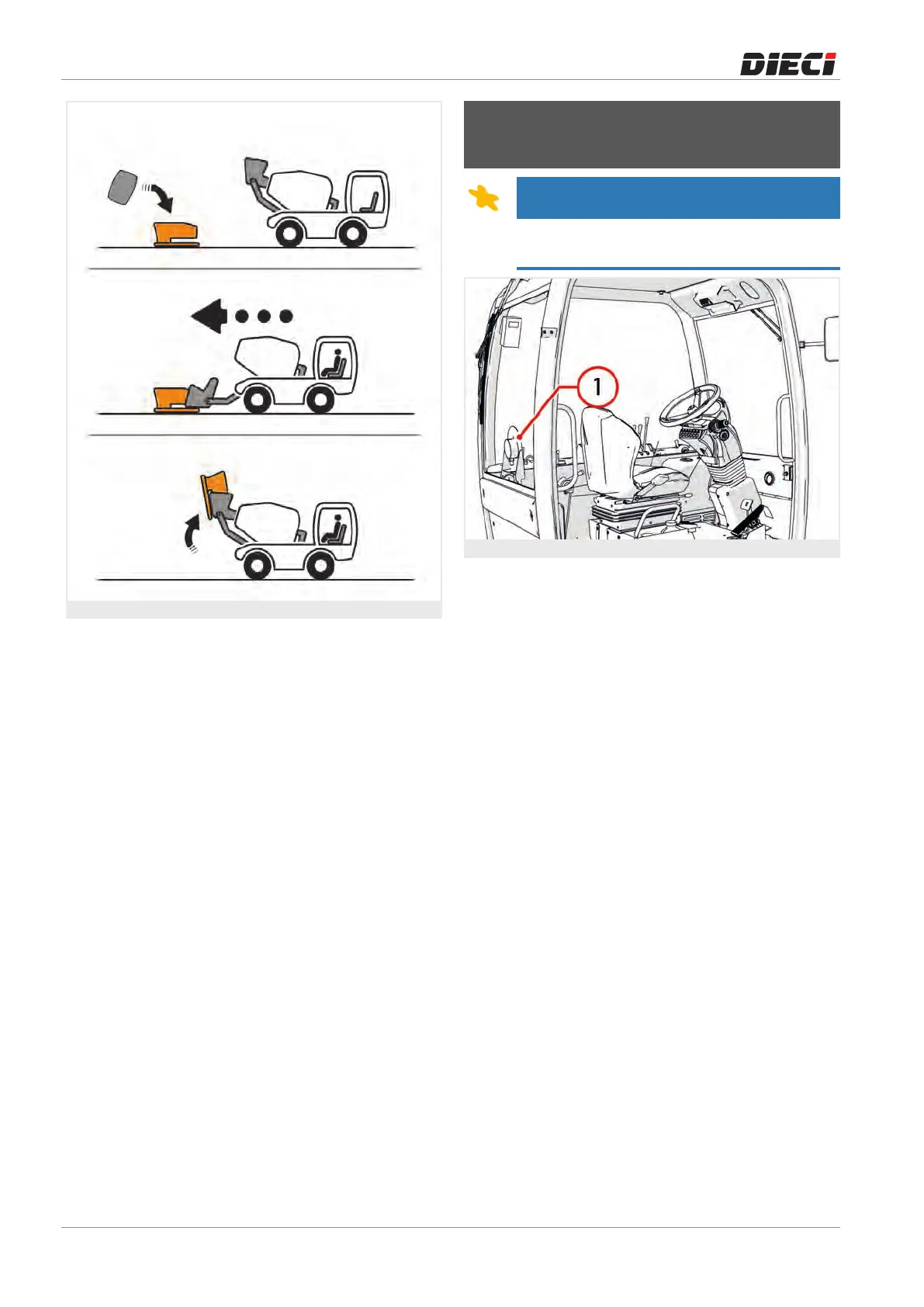

The cement bag cutter (fig. 161242-1) allows the
cement to be easily and quickly loaded in the drum of
the vehicle.
Use:
• Position the bag cutter and the vehicle on level
ground.
• Load the bag cutter, by dropping the cement
bags on the serrated blade of the bag cutter.
• Once the desired amount if reached, remove the
cut bags to prevent them from being caught in
the mixture.
• Lower the loading shovel of the vehicle.
• Reverse the vehicle until the bag cutter is inserted
in the loading shovel.
• Raise the loading shovel and the bag cutter to
load the cement in the drum.
• Once the loading process is complete, lower the
loading shovel and remove the bag cutter.
7.17 - Hydraulic weighing
system *
NOTE
* The hydraulic weighing system is an optional
attachment.
Figure: 161249-1
The hydraulic weighing system provides an indication
of the amount of material in the drum.
• Proceed as follows to use the hydraulic weighing
system:
• Place the machine on a level ground
• Stop the drum from rotating
• Raise the loading shovel completely
• Raise the drum by a few centimeters
• Operate the weighing system control lever (fig.
161249-2), by moving it towards the rear part of
the vehicle
• Take a reading from the dial while shifting the
lever “1” (fig. 161249-1)
Release the lever and lower the drum again once the
weighing process is complete
NOTE! The instrument provides approximate
guidelines and therefore cannot be used to buy or
sell material
