TECHNICAL DATA
136 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]
19.1 - Truck mixer AB L3500

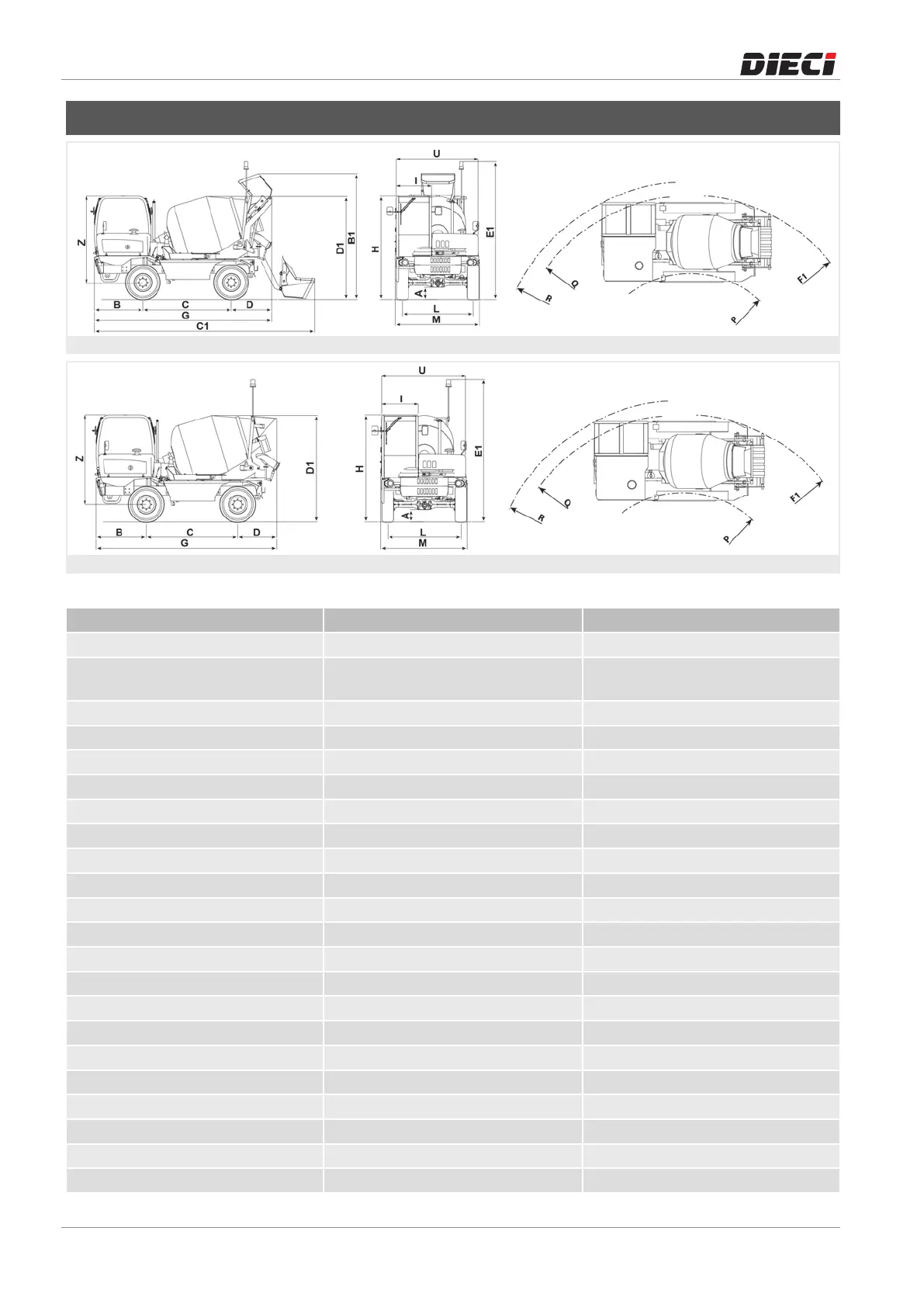

Figure: 161175-1: Dimensions with loading shovel
Figure: 161175-2: Dimensions with loading hopper
MAF3523 MAF3524
Vehicle model AB L 3500 AB L 3500 T
Notes Self-priming water pump. Self-priming water pump. Loading
from hopper.
Sector CONSTRUCTION CONSTRUCTION
Homologation LH684 LH684
Technical type 682 682
Version - -
A 320 mm (12,6 in) 320 mm (12,6 in)
B 1380 mm (54,3 in) 1380 mm (54,3 in)
C 2500 mm (98,4 in) 2500 mm (98,4 in)
D 1150 mm (45,3 in) 1070 mm (42,1 in)
G 5030 mm (198 in) 4955 mm (195,1 in)
H 2900 mm (114,2 in) 2900 mm (114,2 in)
I 1000 mm (39,4 in) 1000 mm (39,4 in)
L 2000 mm (78,7 in) 2000 mm (78,7 in)
M 2370 mm (93,3 in) 2370 mm (93,3 in)
P 3030 mm (119,3 in) 3030 mm (119,3 in)
Q 5330 mm (209,8 in) 5330 mm (209,8 in)
R 5750 mm (226,4 in) 5750 mm (226,4 in)
U 2310 mm (90,9 in) 2310 mm (90,9 in)
Z 2440 mm (96,1 in) 2440 mm (96,1 in)
B1 3530 mm (139 in) -
C1 6230 mm (245,3 in) -
