COMPONENTS DESCRIPTION
84 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]
WARNING
Bring the drum rotation speed to the minimum
before inverting the drum rotation direction.
WARNING
It is strictly forbidden to go near the opening of
the drum as it rotates.
DANGER
It is strictly prohibited to check the quality of the
mixture through the opening of the drum.

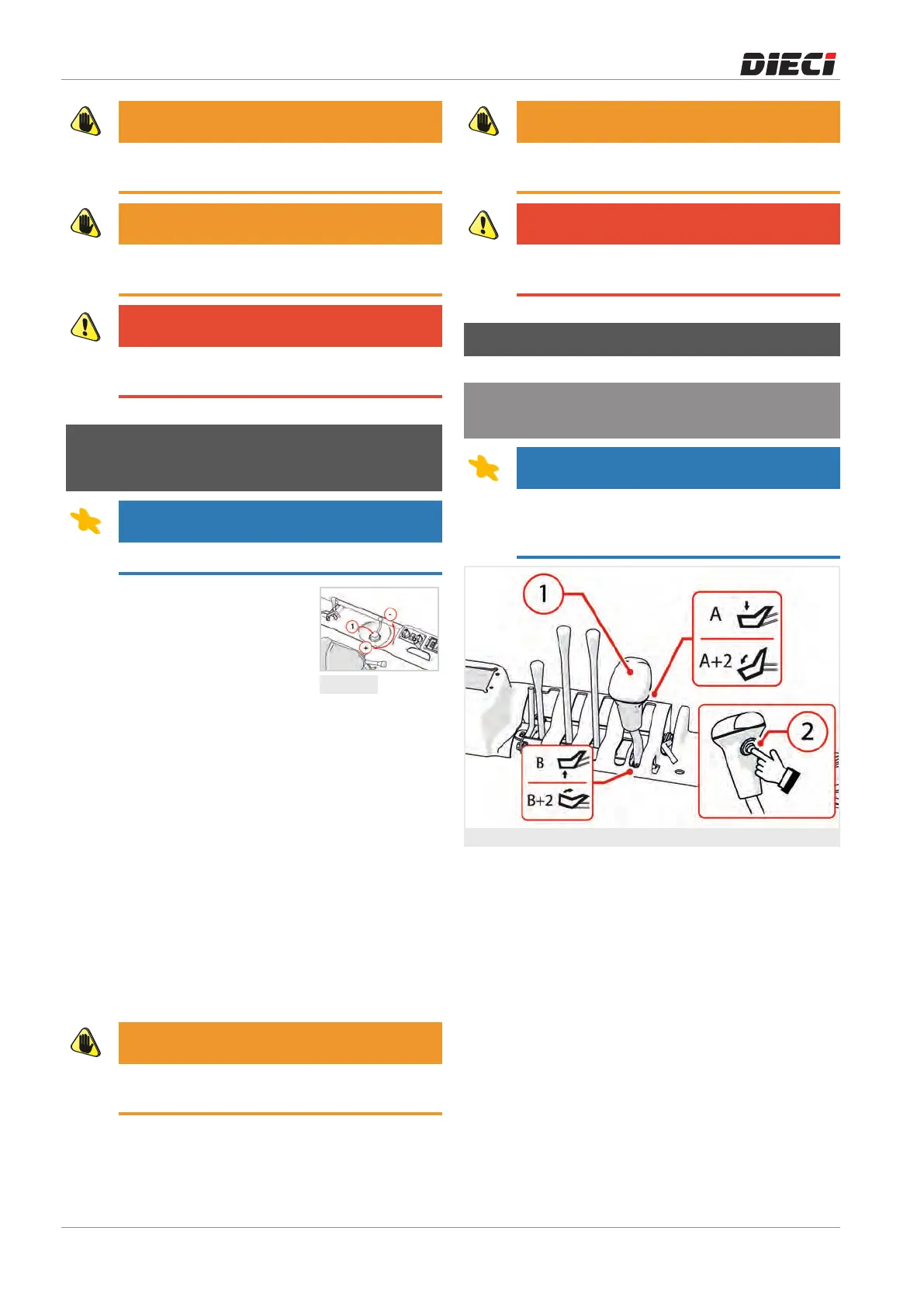

7.11 - Drum rotation speed
control lever *
NOTE
* Attachments available for some vehicle models.
The drum rotation speed control
lever “1” (fig. 161225-1) allows the
drum rotation speed to be
adjusted without increasing the
engine rpm.
• Turn the lever
anticlockwise to reduce
the rotation speed.
• Turn the lever clockwise
to increase the rotation
speed.
Increasing the engine rpm will
also increase the speed of drum
rotation.
NOTE! Refer to the “Safe
working procedures” chapter for
more information regarding the
loading, mixture and unloading
procedures.
161225-1
WARNING
Bring the drum rotation speed to the minimum
before inverting the drum rotation direction.
WARNING
It is strictly forbidden to go near the opening of
the drum as it rotates.
DANGER
It is strictly prohibited to check the quality of the
mixture through the opening of the drum.
7.12 - Concrete batch control *
7.12.1 - Loading shovel control lever
with excess material unloading *
NOTE
* The “Loading shovel control with excess
material unloading lever” is an optional
attachment.
Figure: 161202-1
If the electronic weighing machine indicates that if too
much material is going to be put into the drum to
comply with the selected recipe, the "Loading shovel
control with excess material unloading lever" allows
the excess material to be unloaded.
Move the relative lever ”1” (fig. 161201-1) as follows to
move the loading shovel:
• Push the lever towards side "A" side to lower the
loading shovel
• Pull the lever towards side "B" to lift the loading
shovel
To unload the loading shovel, press the button “2” on
the lever “1” and simultaneously:
• Push the lever towards side "A" side to tilt the
shovel downwards.
