COMPONENTS DESCRIPTION 7
AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A] 85
• Pull the lever towards side "B" to tilt the shovel
upwards.
Release the lever for it to return to the central idle
position and the movement will be stopped; the
loading shovel will then stop in the position reached.

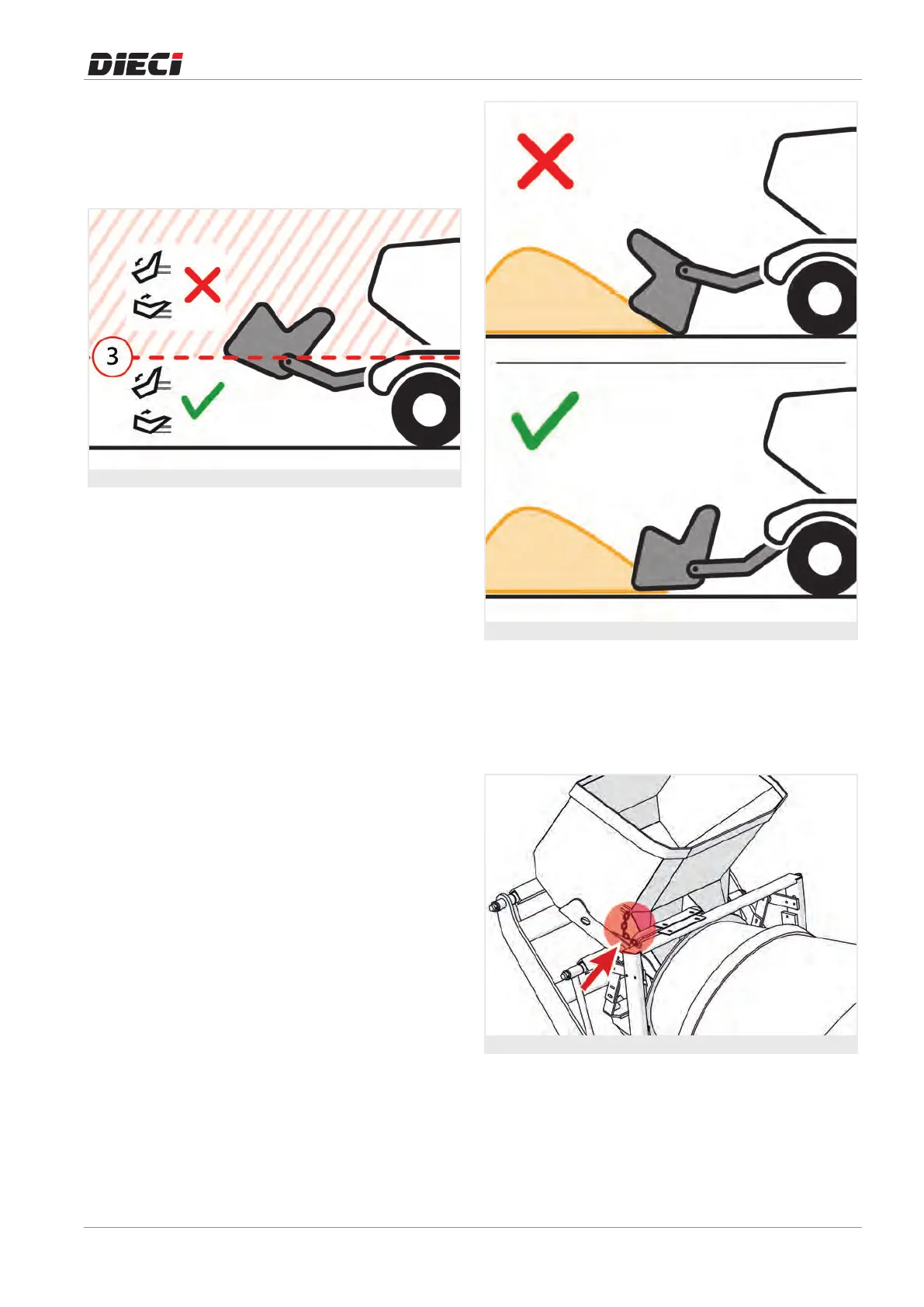

Figure: 161202-2
It is only possible to perform the shovel tilting
movements when the shovel boom is lowered below
the line“3” (fig. 161202-2).
If the boom is lifted and the downward tilting
movement is activated, the lowering movement of the
arm is activated first and only when it is below the line
“3” (fig. 161203-2) the tilting movement will be
activated.
If the blade is tilted downwards and the boom lifting
control is activated, the upward tilting movement is
first activated and only when the shovel is in the
stand-by position the boom lifting movement will be
activated.
Figure: 161202-3
WARNING! Load the shovel only with the shovel
horizontal (in stand-by position). Carrying out the
loading with shovel tilted downwards could
damage the shovel boom.
Before loading the shovel, swing the shovel upwards
until it is in the stand-by position.
Figure: 161202-4
NOTE!The shovel must be raised completely and
fastened with the relative chain when driving on
the road.
