TECHNICAL DATA
144 AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A]
19.3 - Truck mixer AB F7000

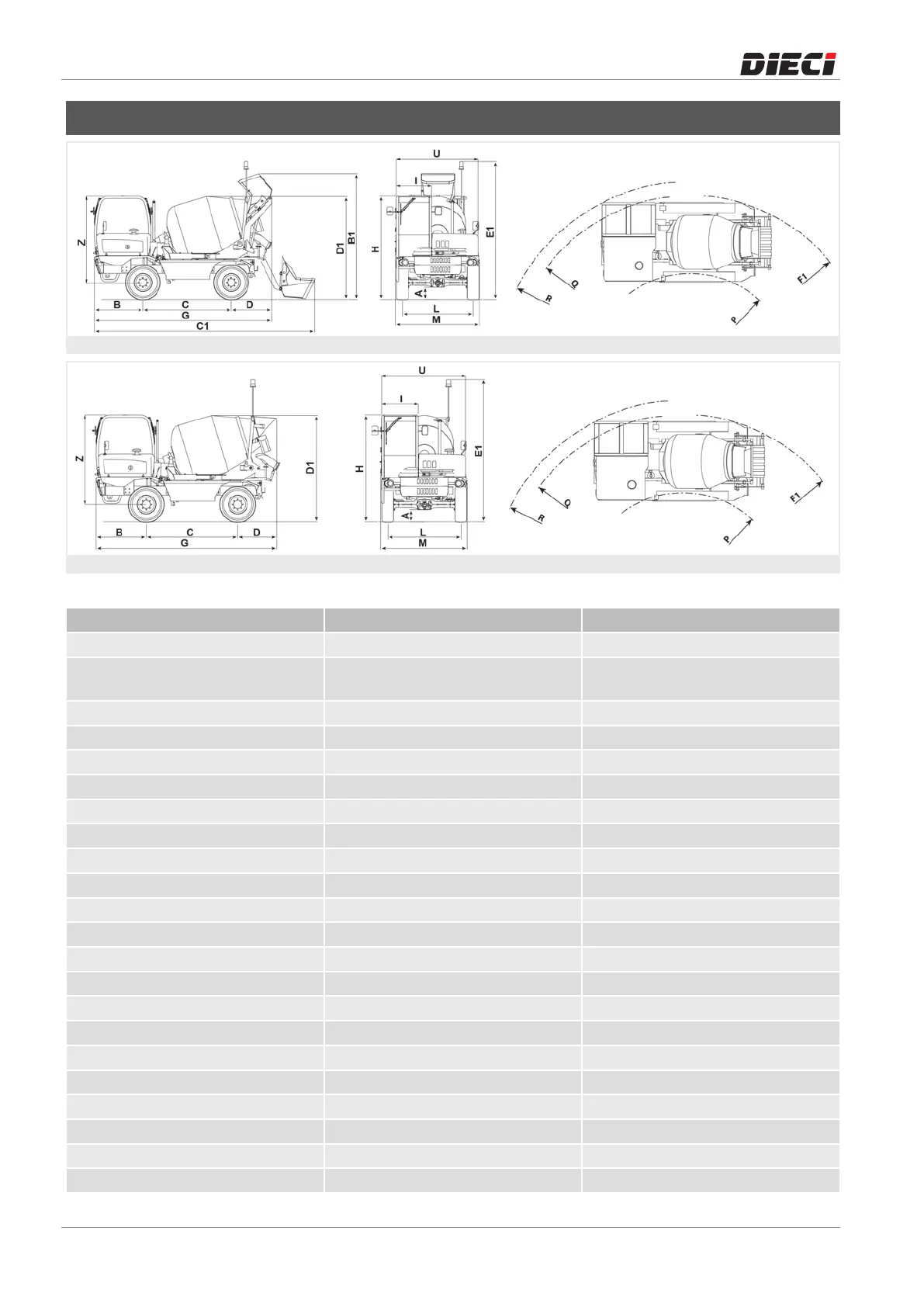

Figure: 161175-1: Dimensions with loading shovel
Figure: 161175-2: Dimensions with loading hopper
MAP3519 MAP3520
Vehicle model AB F 7000 AB F 7000 T
Notes Self-priming water pump. Self-priming water pump. Loading
from hopper.
Sector CONSTRUCTION CONSTRUCTION
Homologation D649 D649
Technical type 648 648
Version - -
A 410 mm (16,1 in) 410 mm (16,1 in)
B 1215 mm (47,8 in) 1215 mm (47,8 in)
C 3210 mm (126,4 in) 3210 mm (126,4 in)
D 2050 mm (80,7 in) 1675 mm (65,9 in)
G 6475 mm (254,9 in) 6100 mm (240,2 in)
H 3050 mm (120,1 in) 3050 mm (120,1 in)
I 1000 mm (39,4 in) 1000 mm (39,4 in)
L 1920 mm (75,6 in) 1920 mm (75,6 in)
M 2370 mm (93,3 in) 2370 mm (93,3 in)
P 3750 mm (147,6 in) 3750 mm (147,6 in)
Q 6020 mm (237 in) 6020 mm (237 in)
R 6370 mm (250,8 in) 6370 mm (250,8 in)
U 2310 mm (90,9 in) 2310 mm (90,9 in)
Z 2500 mm (98,4 in) 2500 mm (98,4 in)
B1 3850 mm (151,6 in) -
C1 7490 mm (294,9 in) -
