COMPONENTS DESCRIPTION 7
AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A] 75

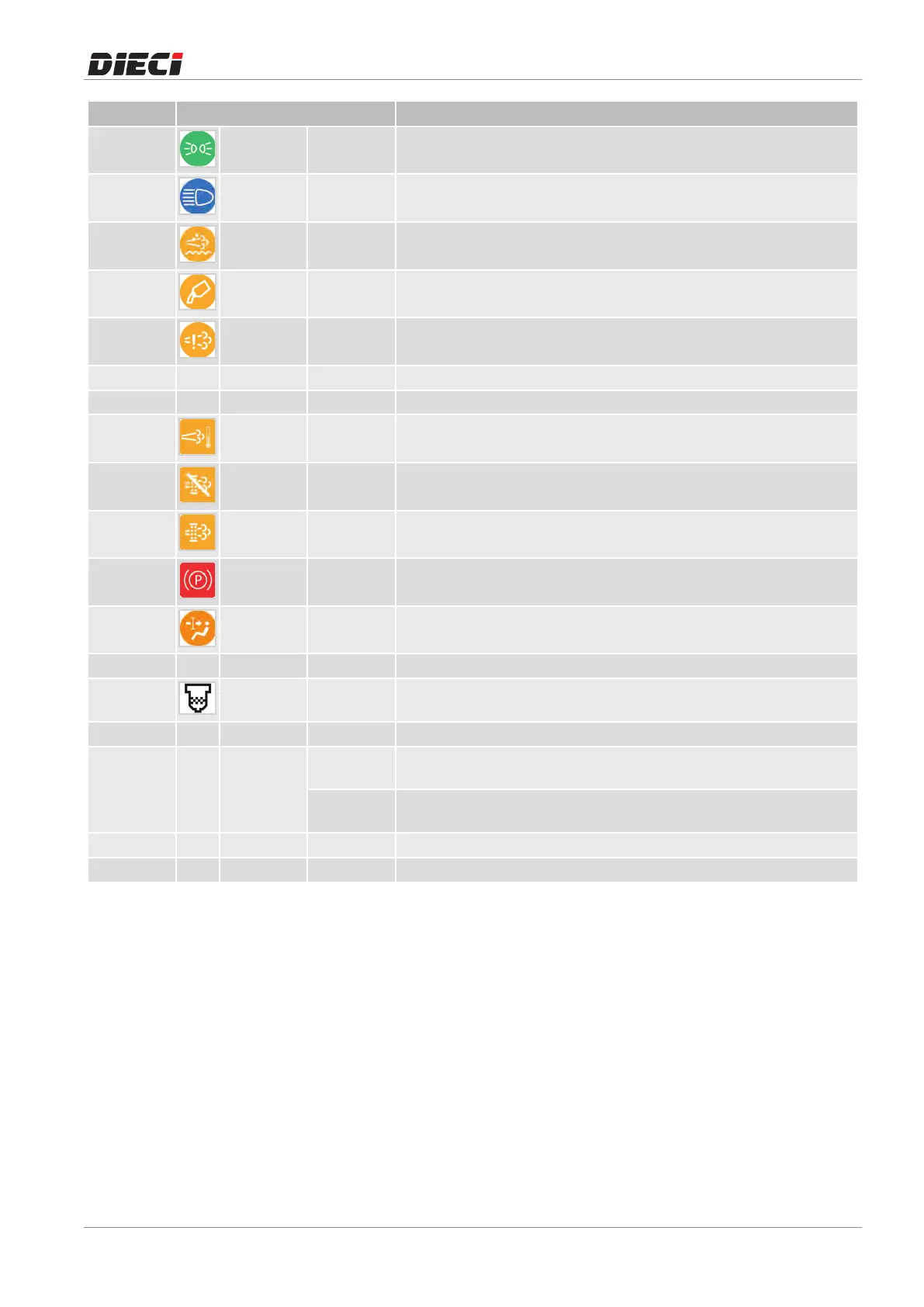

Position Indicator light Description
10 Green Fixed Side lights
11 Blue Fixed High beam
12 Yellow See AdBlue
chapter
AdBlue quality [active for engines with AdBlue]
13 Yellow See AdBlue
chapter
AdBlue level [active for engines with AdBlue]
14 Yellow See AdBlue
chapter
AdBlue system error [active for engines with AdBlue]
15 - - - Fuel level
16 - - - Engine oil temperature
17 Yellow See the DPF
chapter
DPF regeneration in progress [active for engines with DPF]
18 Yellow See the DPF
chapter
DPF regeneration disabled [active for engines with DPF]
19 Yellow See the DPF
chapter
DPF regeneration request or in stand-by [active for engines with DPF]
20 Red Fixed Parking brake engaged
21 Yellow Fixed Reversed power steering controls
22 - - - Not used
23 - Fixed Water in Fuel (Presence of water in the fuel filter)
24 - - - Tachometer
25 - - See AdBlue
chapter
AdBlue level
See the DPF
chapter
DPF clogging gage
26 - - - Engine rpm
27 - - - Hour meter
