COMPONENTS DESCRIPTION 7
AXH1157-UK (ENG) L3500 L4700 F7000 [FPT S3A] 71
If the engine is running and the operator is not sitting
properly in the driver's seat for a time longer than 3
seconds, the transmission is automatically disabled
and the park brake is engaged.
To continue moving the machine, the operator must
sit in the driver's seat and set the movement selection
lever in position "N".
NOTE
The engine can be started only if the operator is
seated properly in the driving seat and the gear
lever is in neutral “N”.

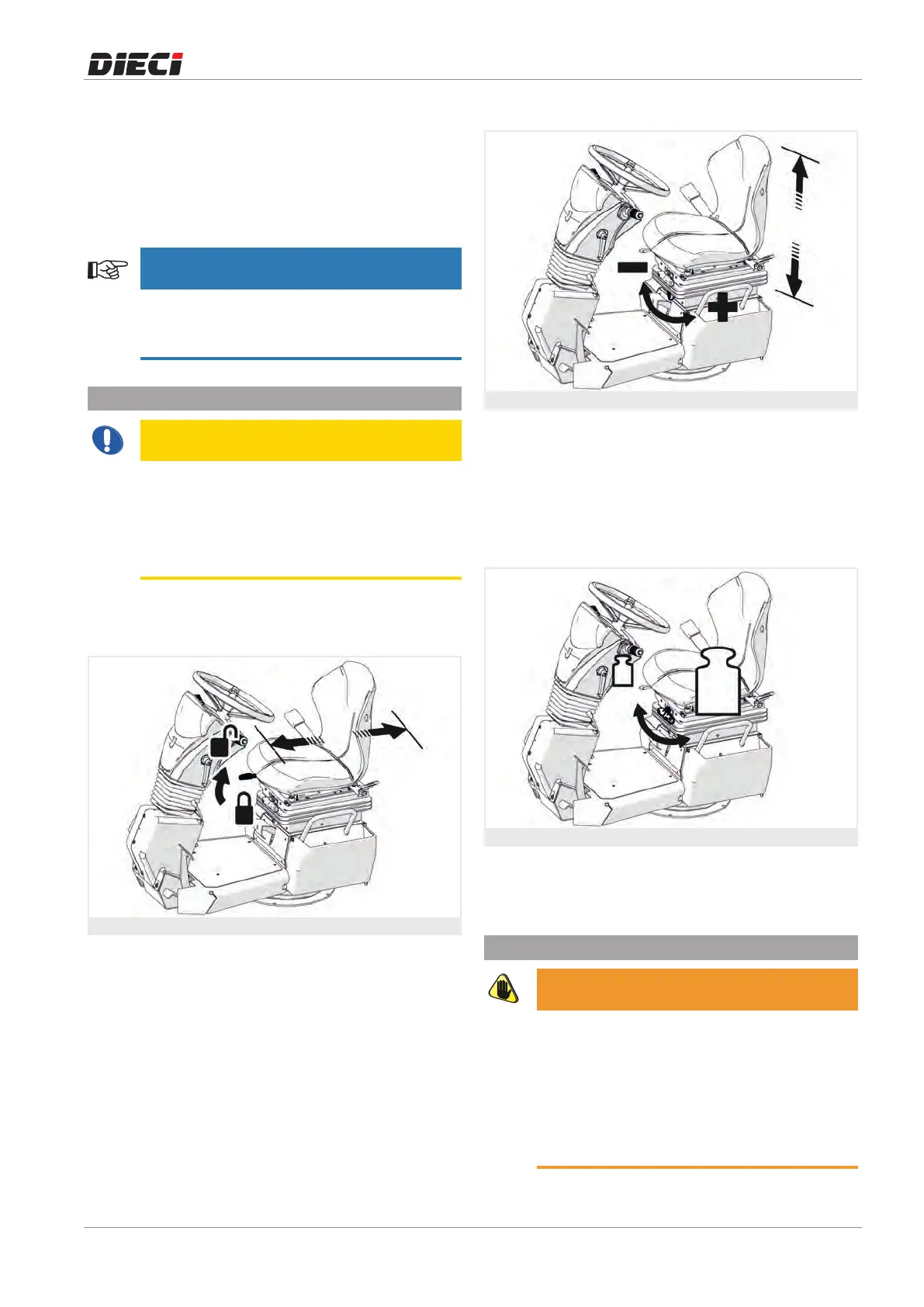

7.1.13.2 - Seat adjustment
ATTENTION
Correctly position the seat.
The seat is properly positioned when the
operator is able to perform a full stroke to the
brake pedal by holding the back against the
backrest of the seat itself.
The seat can be adjusted to different positions:
Horizontal seat position
Figure: 151115-1
For the longitudinal adjustment of the control unit
move the lever (fig. 151115-1) sliding the seat on the
guides. Once established the desired position, release
the lever. Make small movements to ensure that the
stop pin is engaged in its seat.
Mechanical suspension degree
Figure: 151115-2
For the suspension degree adjustment rotate the lever
(fig. 151115-2). Turning the handle clockwise will
decrease the suspension, while turning the lever
counter-clockwise will increase the suspension.
Mechanical suspension degree
Figure: 151115-3
To adjust the seat height, turn the knob (fig.
151115-3). Turning clockwise will lower the seat while
rotating counterclockwise will raise the seat.
7.1.13.3 - Seat belts
WARNING
Always fasten the seat belts when
operating the vehicle.
The machine is equipped with a cab that can
withstand the weight of the machine in the event
of rollover (ROPS), it is therefore necessary that
the operator remains tied to the seat by the seat
belt not to be swept out and possibly crushed.
