Digiever DS-2009 - DS-4300 Pro+ Series

14
1.1.13 DS-4300 Pro+ Series
DS-4332 Pro+/ DS-4336 Pro+/ DS-4342 Pro+/ DS-4349 Pro+/ DS-4356 Pro+/
DS-4364 Pro+

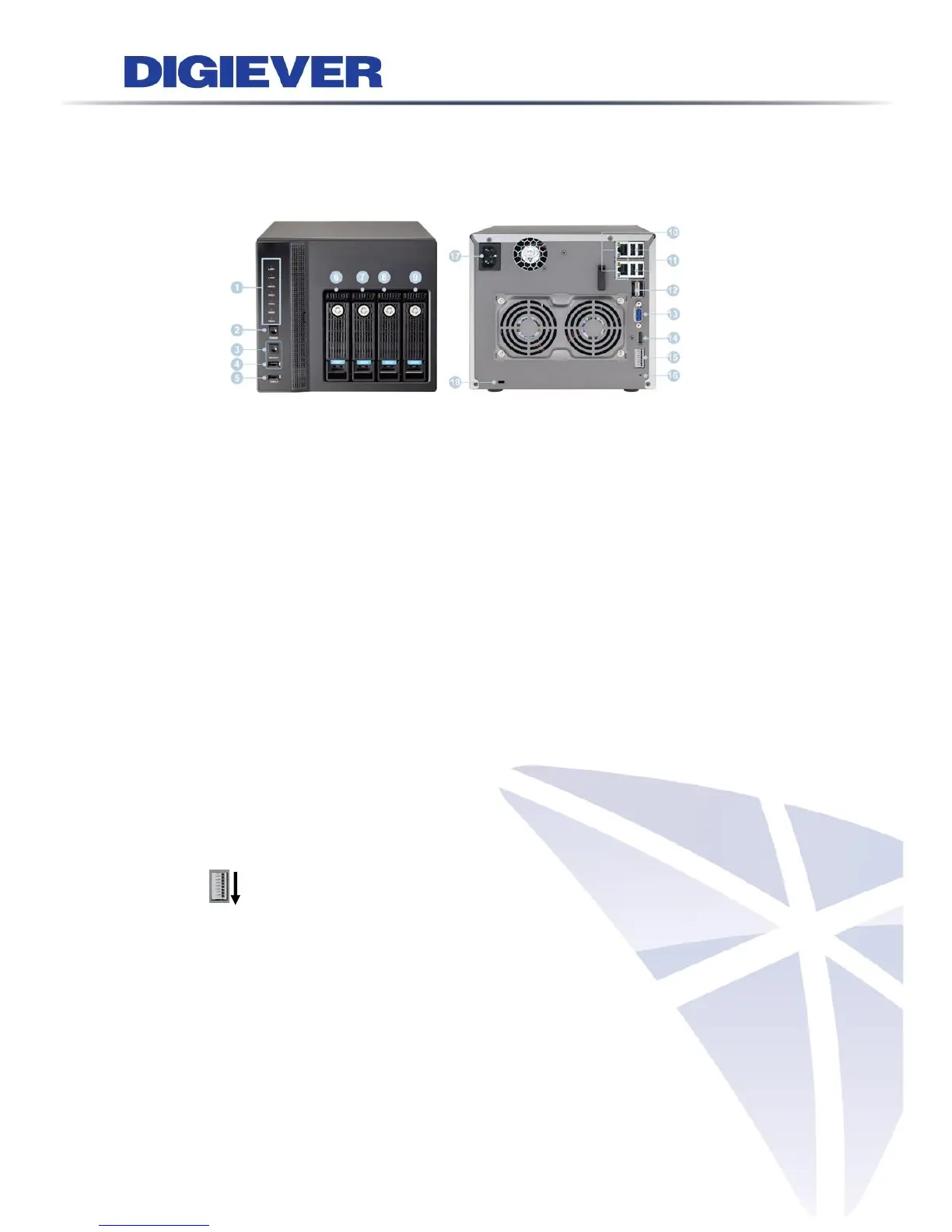

Figure 1-10. Front & Rear View of DS-4300 Pro+ Series
19. LED indicators: LAN1, LAN2, eSATA, HDD1, HDD2, HDD3, HDD4
20. Power button
21. USB BACKUP button - Auto video backup
22. USB 2.0 x 1(Support auto video backup)
23. USB 2.0 x 1
24. HDD1
25. HDD2
26. HDD3
27. HDD4
28. Gigabit LAN x 2
29. USB 2.0 x 4
30. eSATA x 2
31. VGA output
32. HDMI output
33. DI/DO (4 in 2 out)
Top to bottom: Vcc5V, GND, DI-1, DI-2, DI-3, DI-4, DO-1, DO-2
34. Reset button*
35. Power connector
36. K-lock security slot
