1.1.14 DS-4300-RM Pro+ Series
DS-4332-RM Pro+/ DS-4336-RM Pro+/ DS-4342-RM Pro+/ DS-4349-RM Pro+/
DS-4356-RM Pro+/ DS-4364-RM Pro+

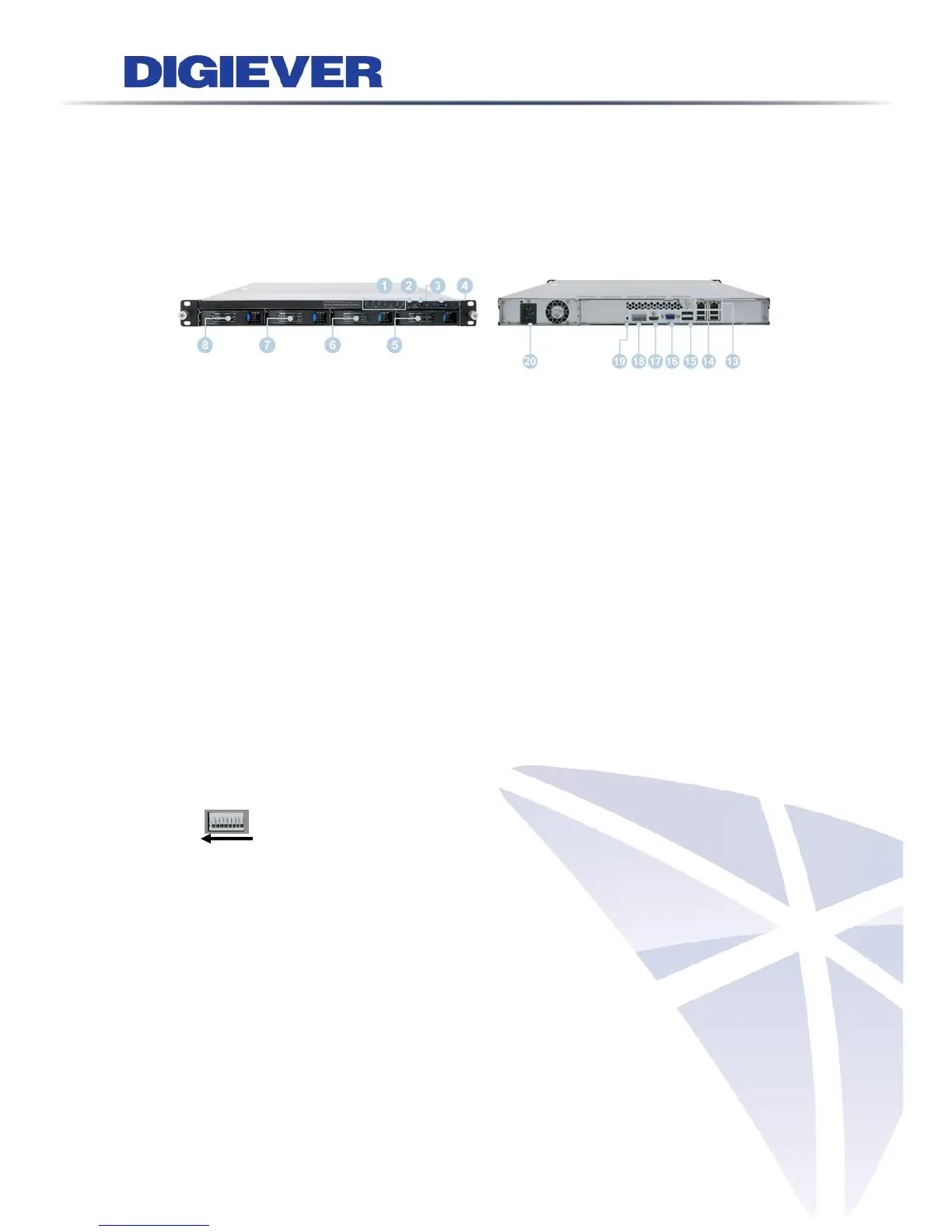

Figure 1-11. Front & Rear View of DS-4300-RM Pro+ Series
17. LED indicators: LAN1, LAN2, eSATA, HDD1, HDD2, HDD3, HDD4
18. Power button
19. USB BACKUP button - Auto video backup
20. USB 3.0 x 1 (Support auto video backup)
21. HDD1
22. HDD2
23. HDD3
24. HDD4
25. Gigabit LAN x 2
26. USB 2.0 x 4
27. eSATA x 2
28. VGA output
29. HDMI output
30. DI/DO (4 in 2 out)
Right to left: Vcc5V, GND, DI-1, DI-2, DI-3, DI-4, DO1, DO2
31. Reset button*
32. Power connector
