1.1.15 DS-8300-RM Pro+ Series
DS-8342-RM Pro+/ DS-8349-RM Pro+/ DS-8356-RM Pro+/ DS-8364-RM Pro+

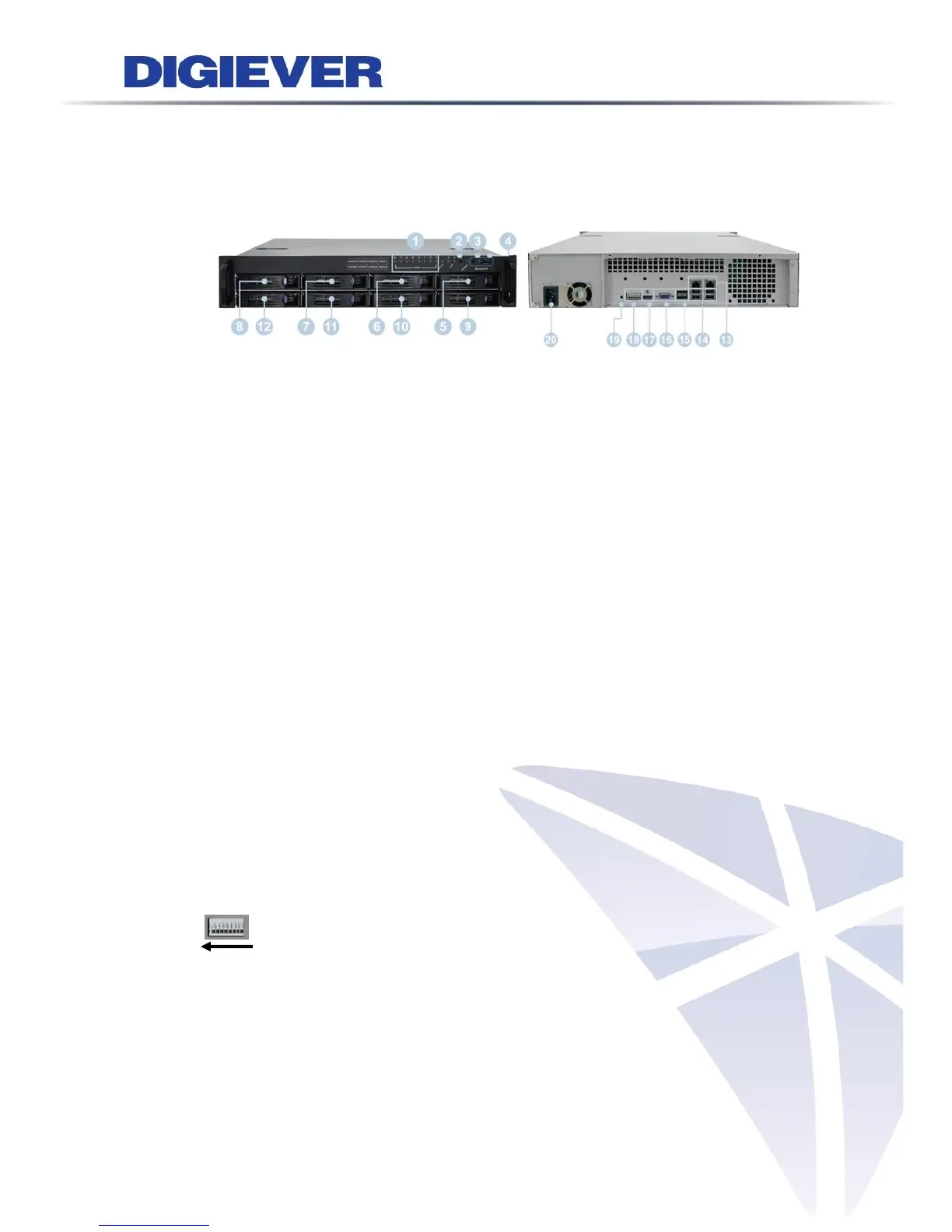

Figure 1-13. Front & Rear View of DS-8300-RM Pro+ Series
21. LED indicators: LAN1, LAN2, eSATA, HDD1, HDD2, HDD3, HDD4, HDD5, HDD6,
HDD7, HDD8
22. Power button
23. USB BACKUP button - Auto video backup
24. USB 3.0 x 1 (Support auto video backup)
25. HDD1
26. HDD2
27. HDD3
28. HDD4
29. HDD5
30. HDD6
31. HDD7
32. HDD8
33. Gigabit LAN x 2
34. USB 2.0 x 4
35. eSATA x 2
36. VGA output
37. HDMI output
38. DI/DO (4 in 2 out)
Right to left: Vcc5V, GND, DI-1, DI-2, DI-3, DI-4, DO1, DO2
39. Reset button*
40. Power connector
