Fitting the image to the display
If the source image supplied to the projector is smaller than the WUXGA resolution, the image will not fill the display. The following examples show how a number
of common formats may be displayed, depending on your DMD™ resolution.

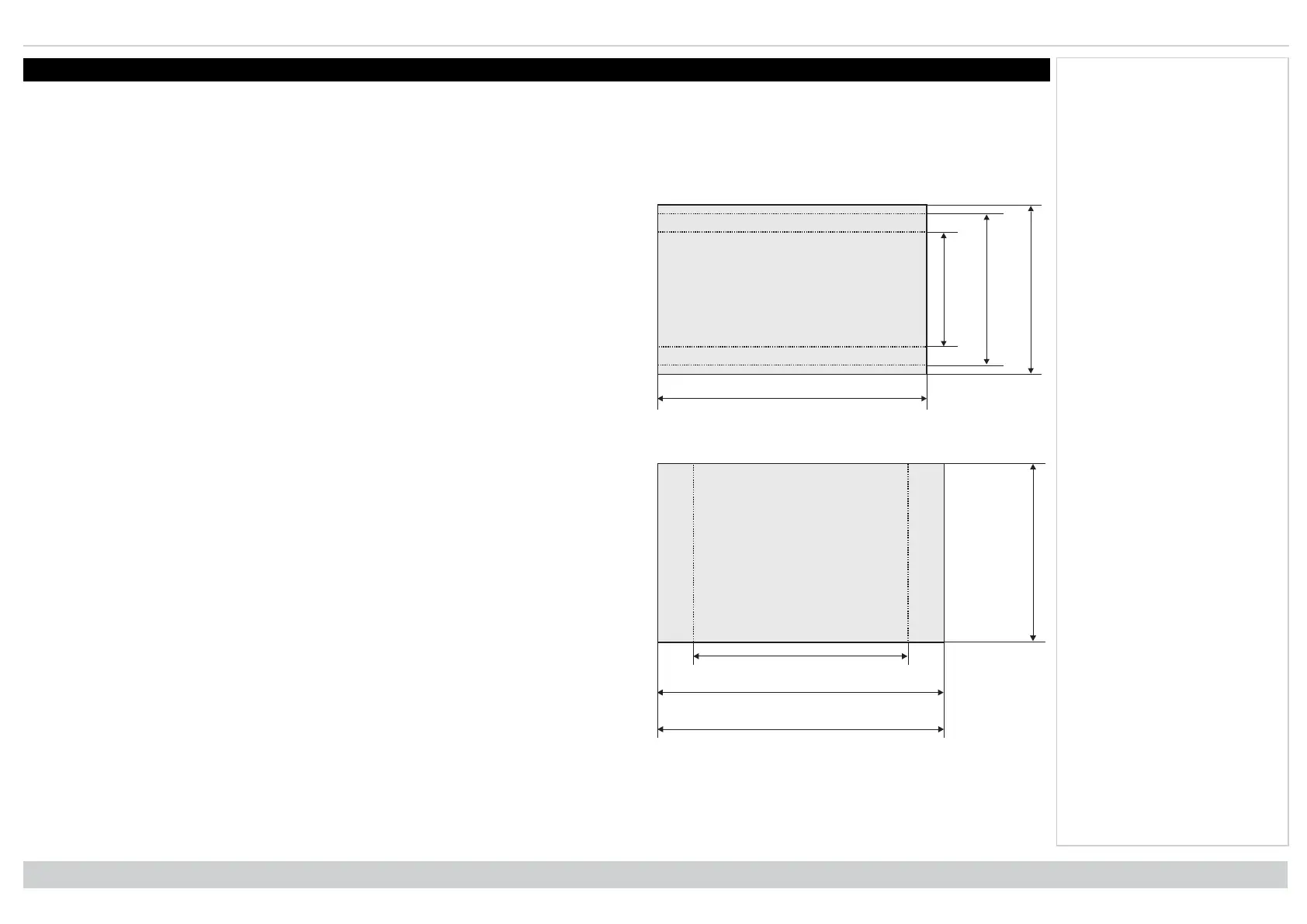

WUXGA images displayed full width
full width = 1920 pixels
2.35:1 (Scope)
= 817 pixels
16:10 (full height)
= 1200 pixels
16:9 1.78:1
= 1080 pixels
WUXGA images displayed with a height of 1200 pixels
full height
= 1200 pixels
4:3 = 1.33:1 = 1596 pixels
full width = 1920 pixels
16:10 = 1.6:1 = 1920 pixels
