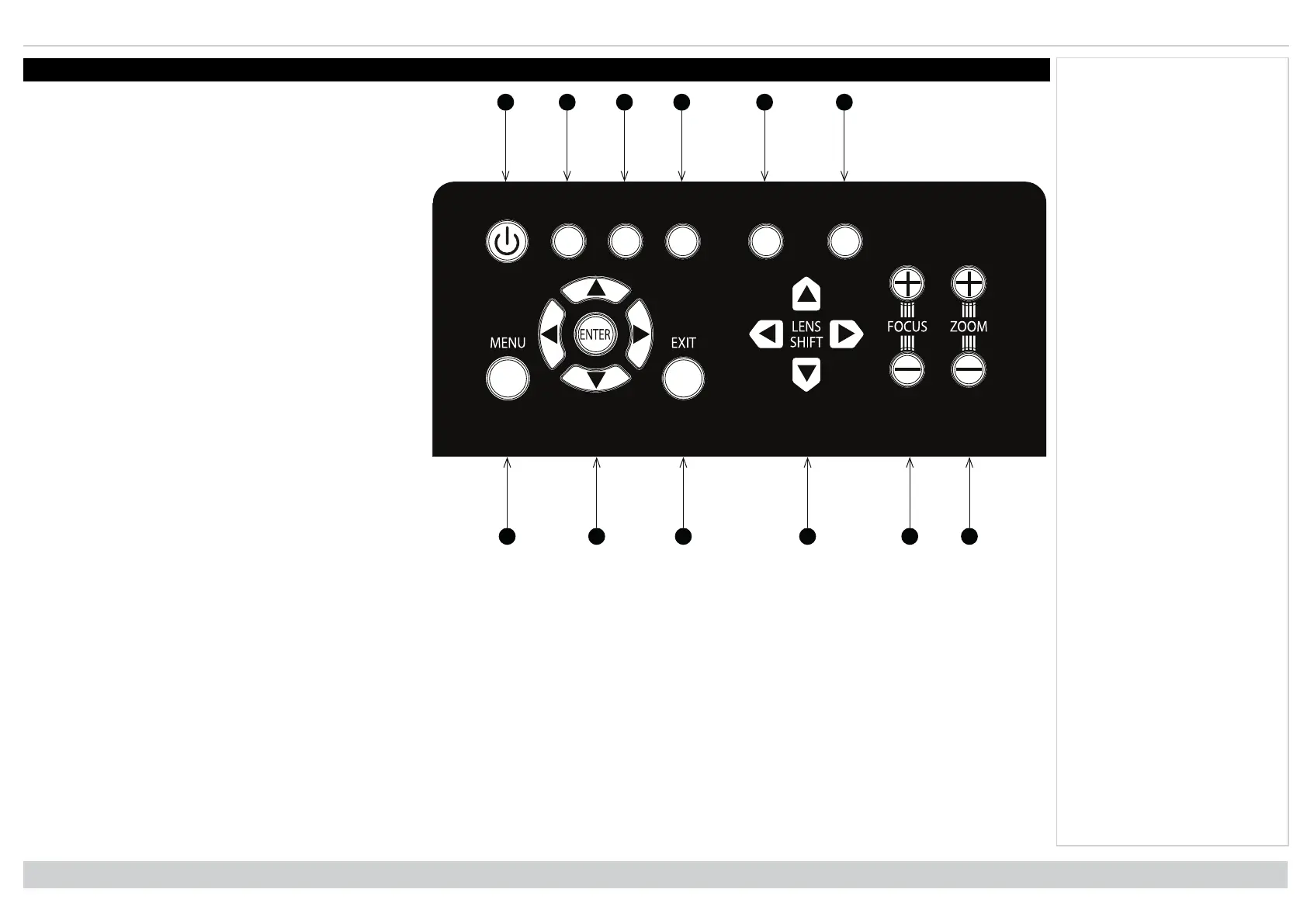

Control Panel
1. POWER
Switches the projector on and off (STANDBY).
2. INPUT
Switches to the next input source.
3. AUTO SYNC
Re-synchronises with the current input signal.
4. ASPECT
Changes the aspect ratio.
5. CENTER LENS
Centers the lens.
6. PIC MUTE Shows and hides the projected image. When
muted, the light source is completely switched off and
the screen is black.
7. MENU
Displays and exits the OSD.
8. Arrow buttons & ENTER
Navigation buttons used to highlight menu entries in the
OSD. Press ENTER to open or execute the highlighted
menu entry.
9. EXIT
Exits the current OSD page and enters the level above.
10. LENS SHIFT
Arrow buttons move the lens in the specified direction.
11. FOCUS
Plus and minus buttons move the focus in and out.
12. ZOOM
Plus and minus buttons zoom in and out.
Installation & Quick Start Guide
Rev A June 2019
page 13
