Using the projector Digital Projection Ltd. E-Vision Laser 13000 WU Series
Keystone settings
1
2
3 4 5

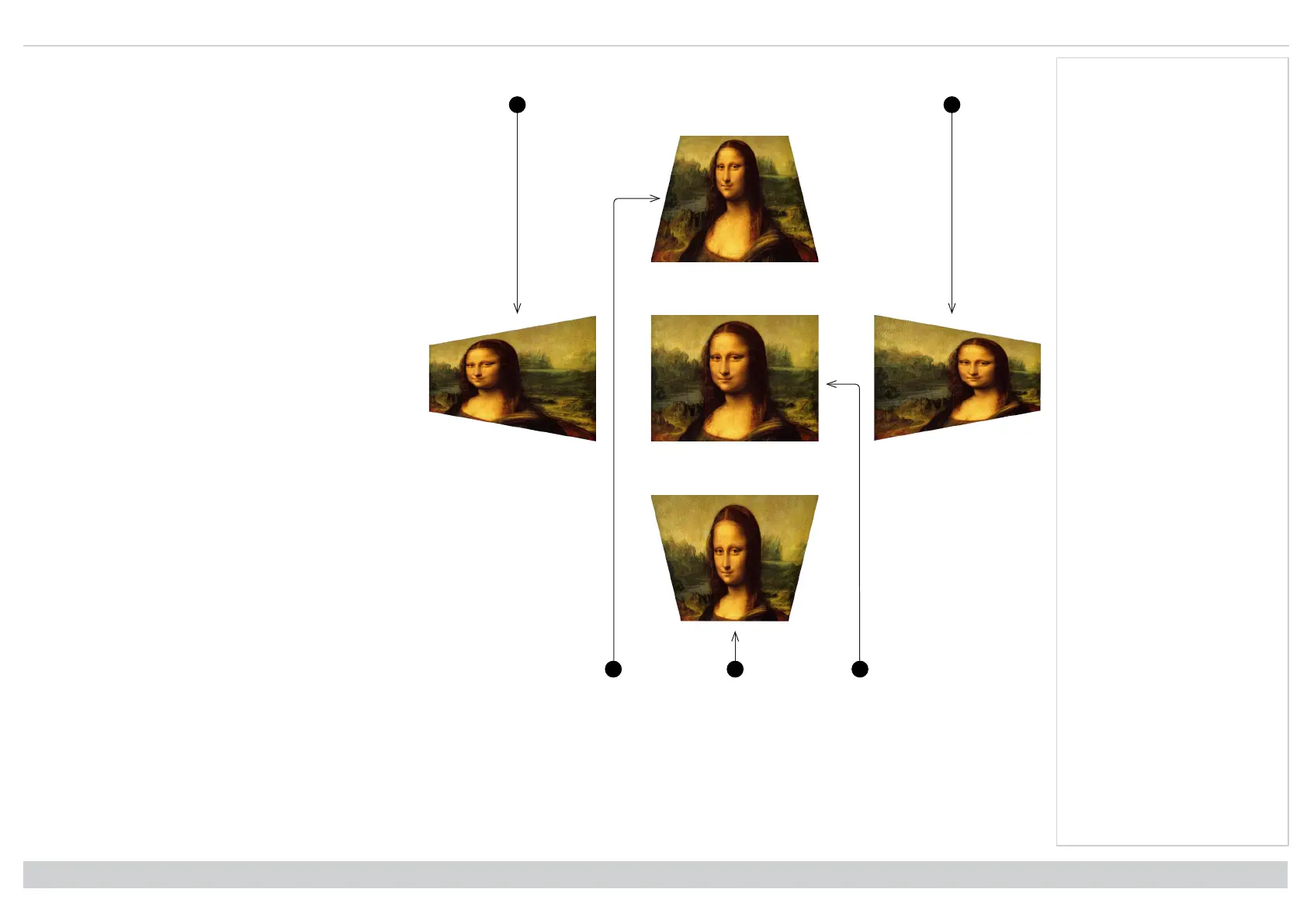

Horizontal and vertical keystone corrections
1. Projector to the left The projector is positioned to the
left of the screen. To correct, apply a positive
Horizontal Keystone value using the RIGHT arrow
button.
2. Projector to the right The projector is positioned to the
right of the screen. To correct, apply a negative
Horizontal Keystone value using the LEFT arrow
button.
3. Projector high The projector is positioned above the
screen at a downward angle. To correct, apply a
negative Vertical Keystone value using the DOWN
arrow button.
4. Projector low The projector is positioned below the
screen at an upward angle. To correct, apply a positive
Vertical Keystone value using the UP arrow button.
5. Projector straight The projector is directly opposite the
screen at a right angle both horizontally and vertically.
No correction is needed.
Operating Guide
Rev A June 2019
page 59
