Digital Projection Ltd. E-Vision Laser 13000 WU Series Changing the lens

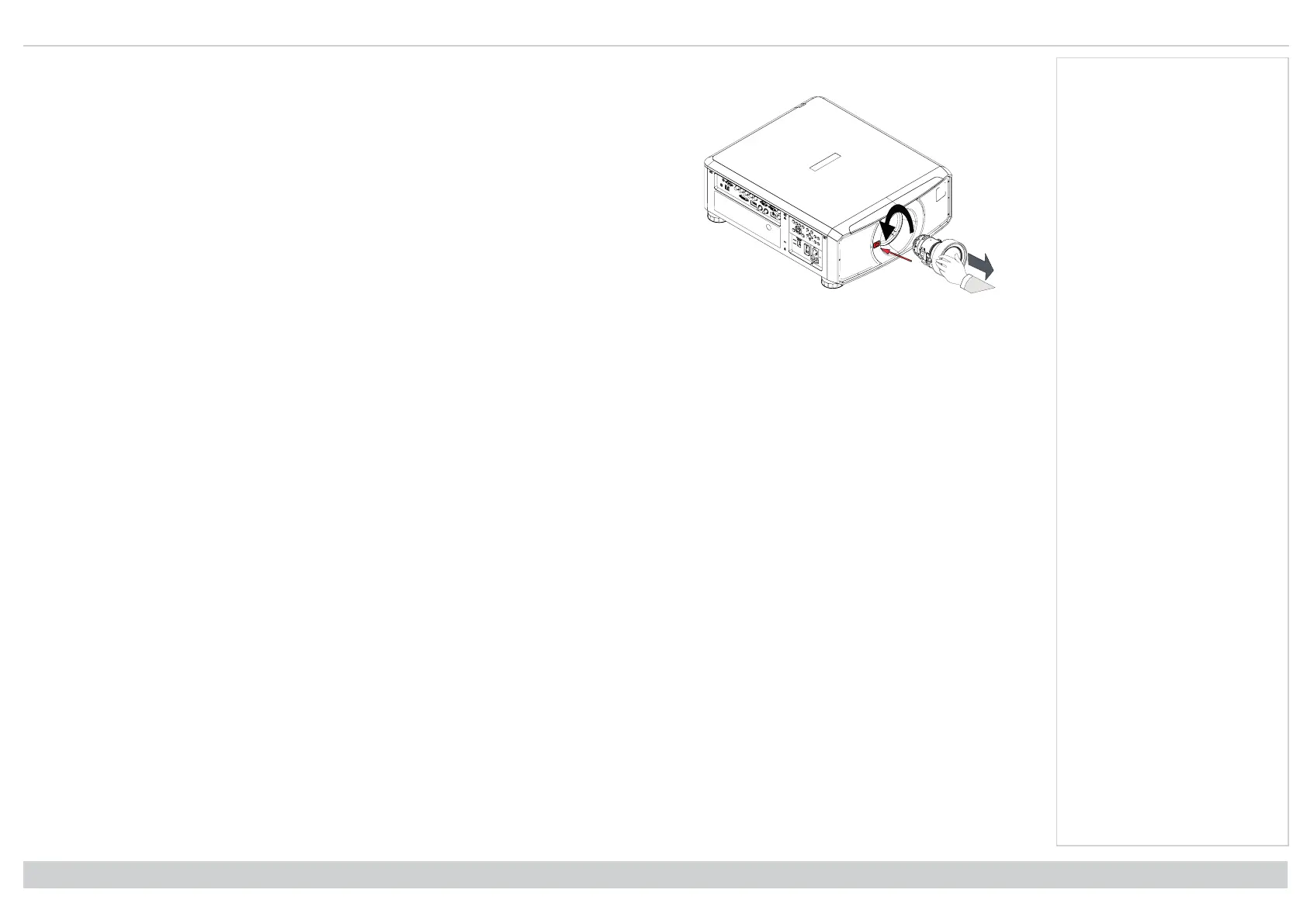

Removing the lens

1. Push the lens release button all the way in

2. Turn the lens anti-clockwise until it disengages

3. Slowly remove the lens.

Rev A June 2019

page 22

Installation & Quick Start Guide
