Served web pages Digital Projection Ltd. E-Vision Laser 13000 WU Series

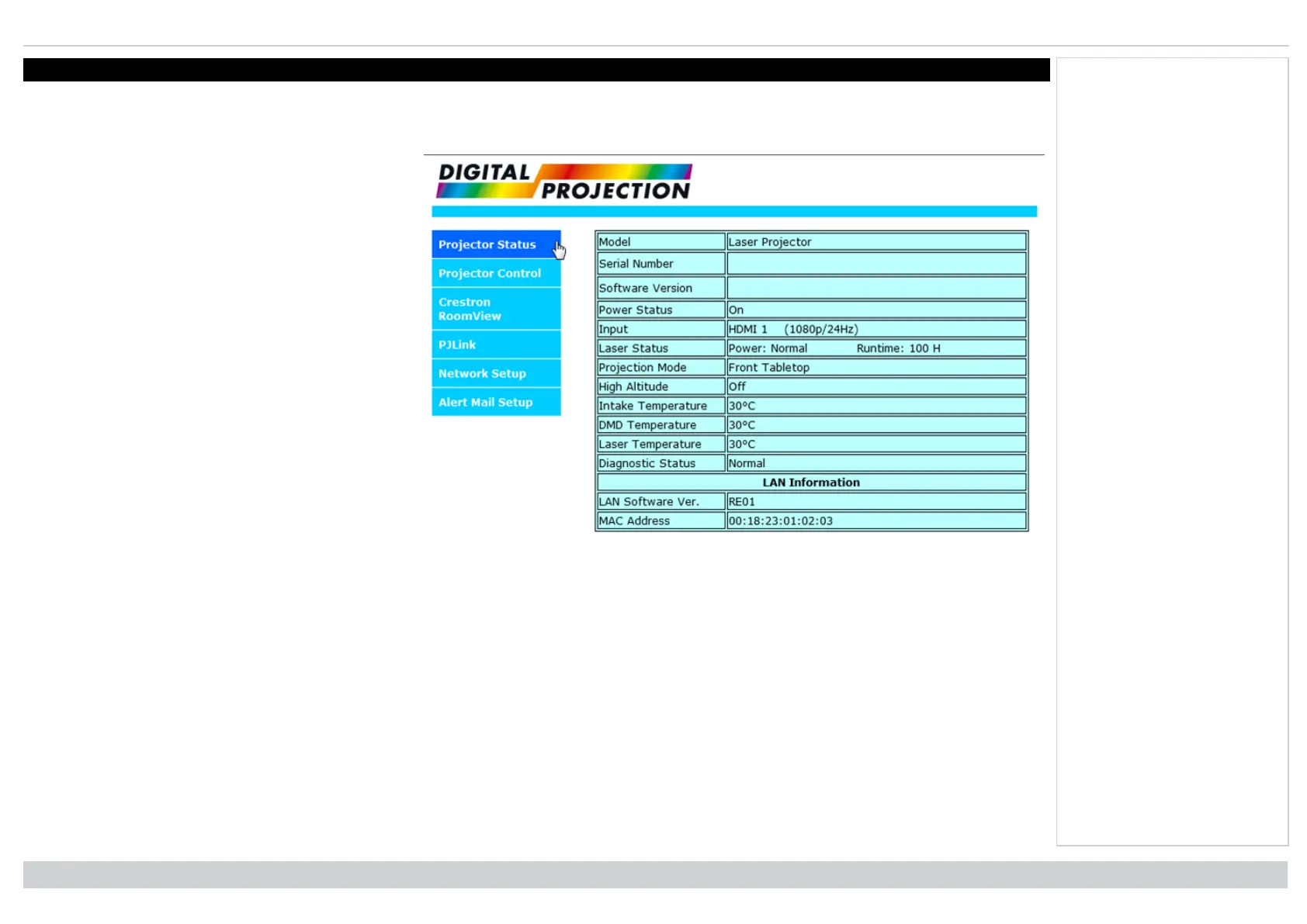

Served web pages

The served web pages allow you to control the projector remotely via LAN.

The default IP address is 192.168.0.100.

Operating Guide

Rev A June 2019

page 87
