Digital Projection Ltd. E-Vision Laser 13000 WU Series Appendix B:wiringdetails
Appendix B: wiring details
Signal inputs and outputs
HDMI 1 and 2

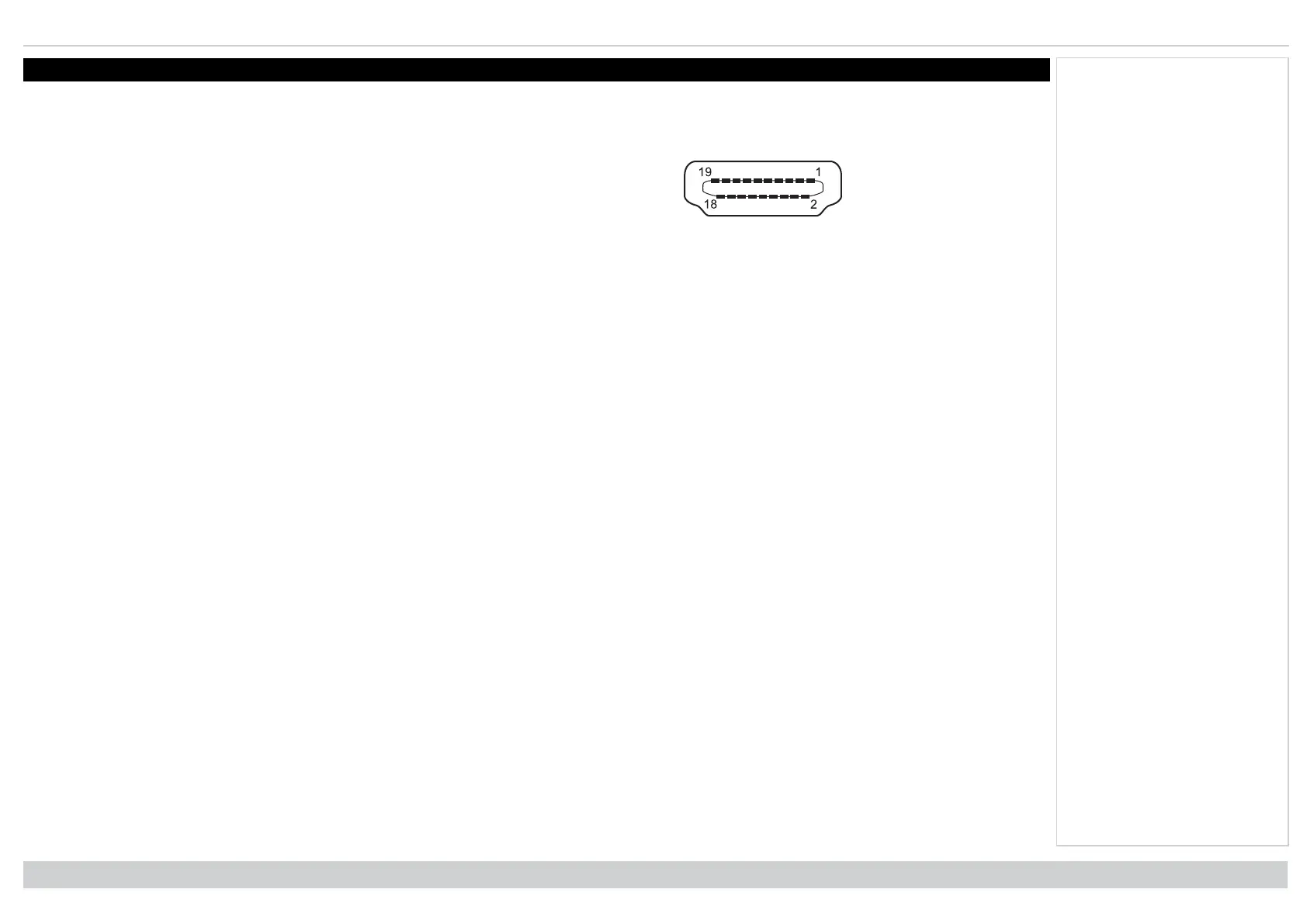

HDMI: pin view of panel connector
19 way type A connector
1. TMDS Data 2+
2. TMDS Data 2 Shield
3. TMDS Data 2-
4. TMDS Data 1+
5. TMDS Data 1 Shield
6. TMDS Data 1-
7. TMDS Data 0+
8. TMDS Data 0 Shield
9. TMDS Data 0-
10. TMDS Clock+
11. TMDS Clock Shield
12. TMDS Clock-
13. CEC
14. not connected
15. SCL (DDC Clock)
16. SCA (DDC Data)
17. DDC/CEC Ground
18. +5 V Power
19. Hot Plug Detect
Rev A June 2019
