Screen requirements Digital Projection Ltd. E-Vision Laser 13000 WU Series

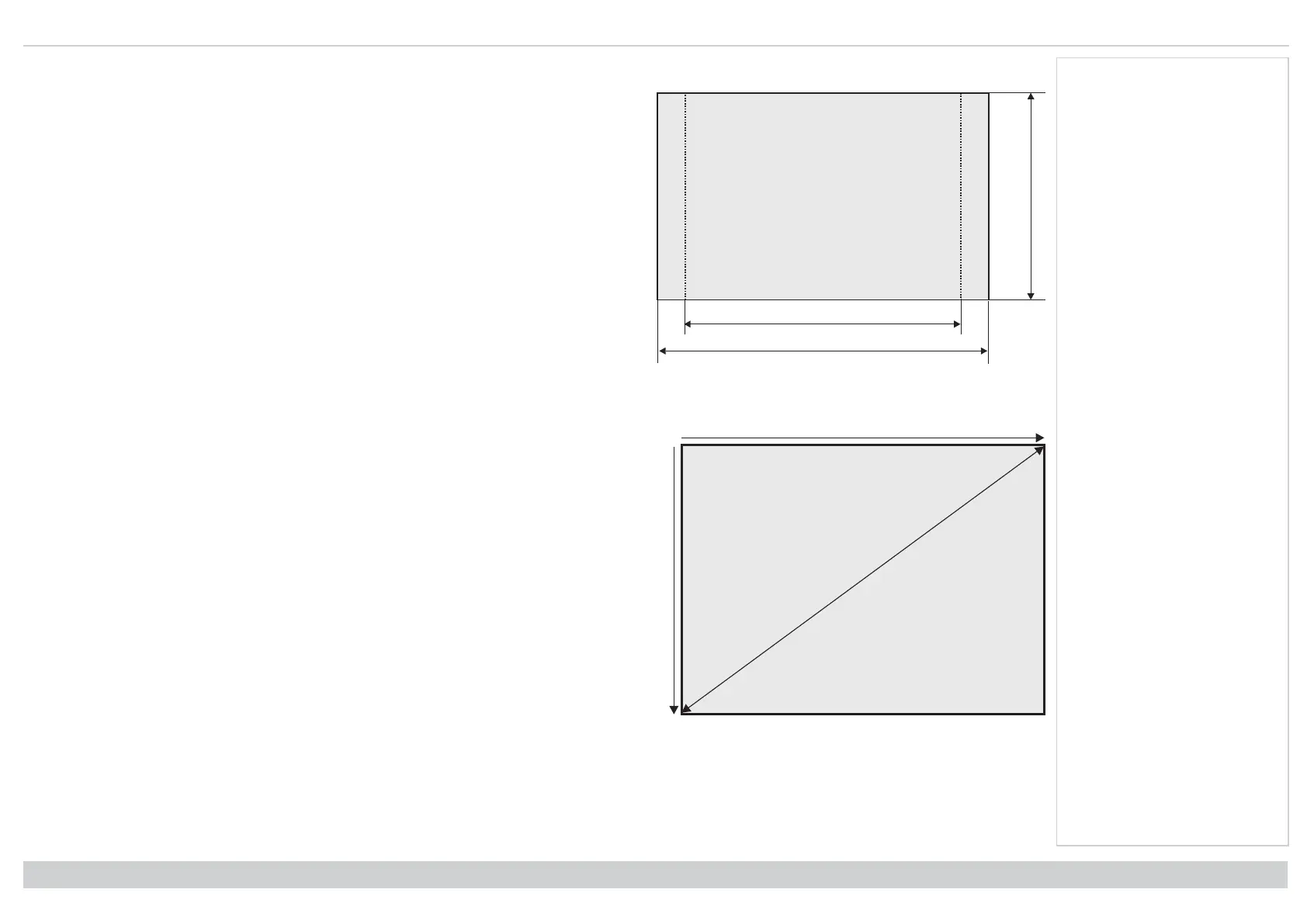

WUXGA images displayed full height
4:3 = 1.33:1 = 1596 pixels
WUXGA = 16:10 = 1.6:1 = 1920 pixels
full height
= 1200 pixels
Diagonal screen sizes
H = height
W = width
D = diagonal
Screen sizes are sometimes specified by their diagonal size (D). When dealing with large screens
and projection distances at different aspect ratios, it is more convenient to measure screen width
(W) and height (H).
The example calculations below show how to convert diagonal sizes into width and height, at
various aspect ratios.
2.35:1 (Scope)
W = D x 0.92 H = D x 0.39
1.85:1
W = D x 0.88 H = D x 0.47
16:9 = 1.78:1
W = D x 0.87 H = D x 0.49
16:10 = 1.6:1 (native aspect ratio for WUXGA projectors)
W = D x 0.85 H = D x 0.53
