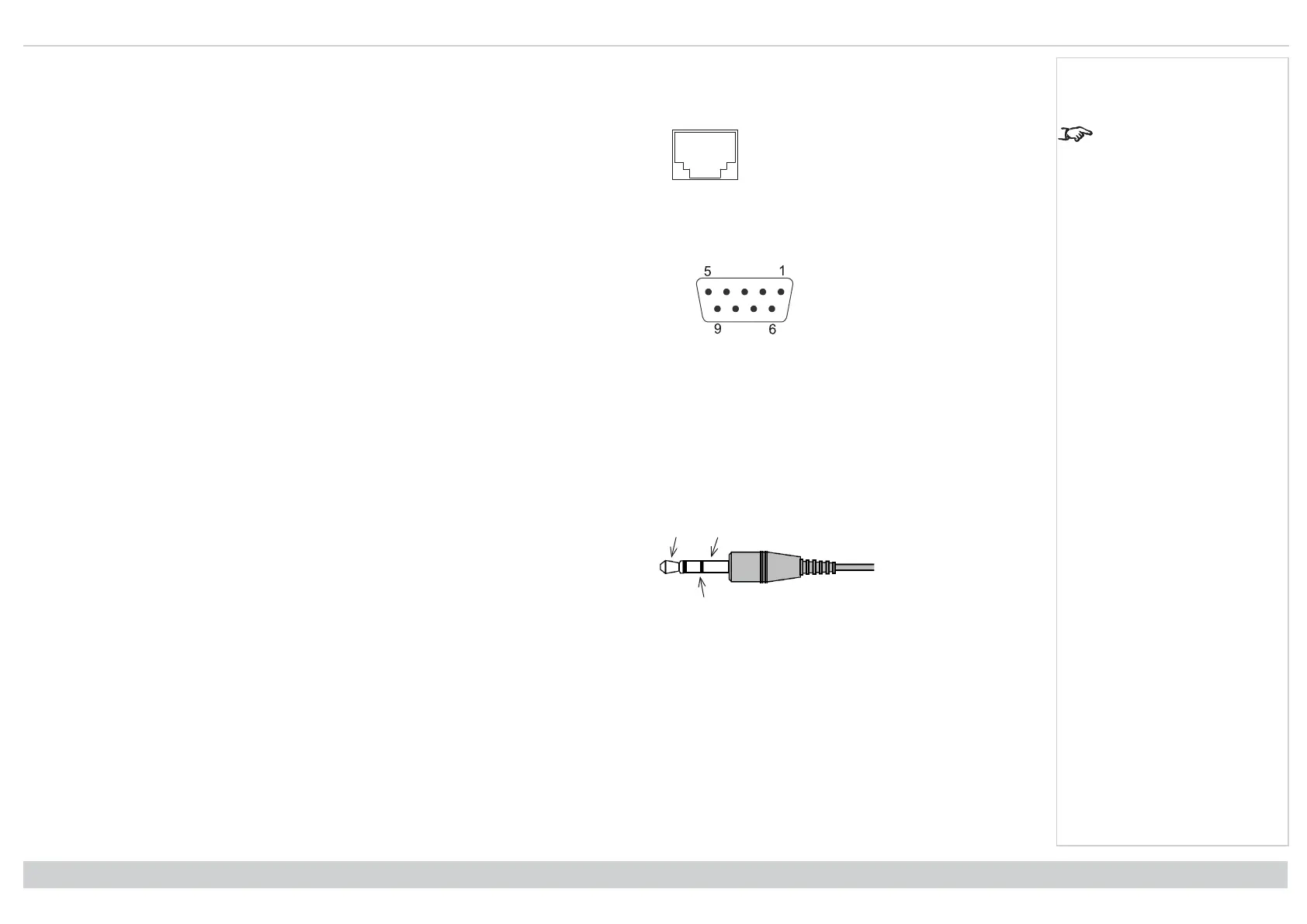

Appendix B: wiringdetails Digital Projection Ltd. E-Vision Laser 13000 WU Series

Control connections

Only one remote

connection (RS232 or

LAN) should be used at

any one time.

LAN

HDBaseT / LAN

RJ45 socket (Shared with HDBaseT)

RS232

pin view of female connector

9 way D-type connector

1. unused

2. Transmitted Data (TX)

3. Received Data (RX)

4. unused

5. Signal Ground

6. unused

7. unused

8. unused

9. unused

IR input

Tip Sleeve

Ring

3.5 mm mini jack

Tip Signal

Ring Not connected

Sleeve Ground

Reference Guide

Rev A June 2019

page 115

Notes
