Dobot M1 User Guide 7 Maintenance
Issue V1.3.4 (2019-05-23) User Guide Copyright © Yuejiang Technology Co., Ltd
125
battery to be replaced on the Forearm instead of the base. For details, please see Step 4
to Step 9.
If a fuse is installed on the battery, please cut off the zip-tie that fixed the original
battery, as shown in Figure 7.8. Remove the battery from the battery holder and
disconnect the connector of the original battery from the battery adapter cable,
as shown in Figure 7.9.
After removing the original battery, please wrap the connector of the battery
adapter with insulating tape to prevent short circuit.

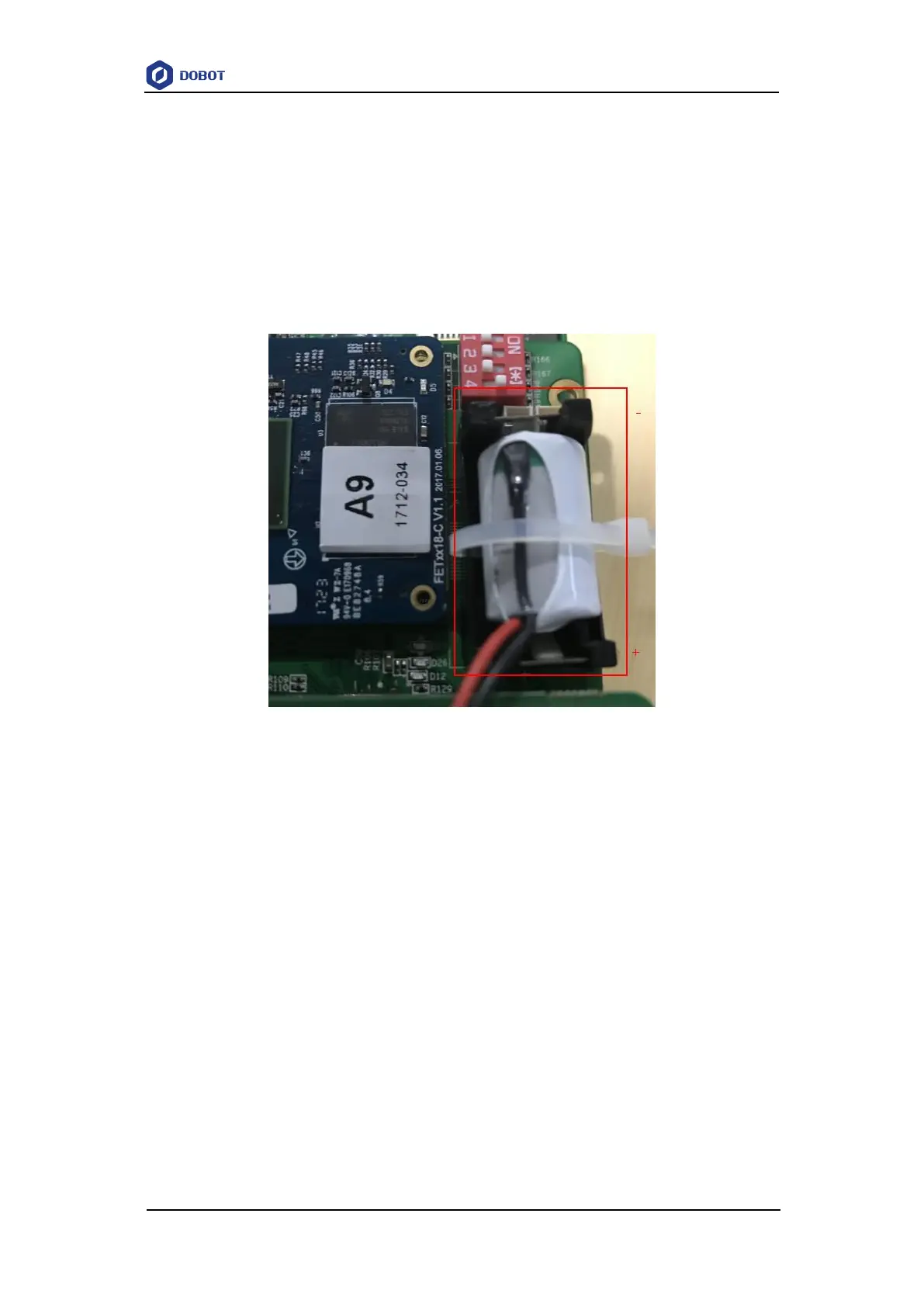

Figure 7.8 Location of the battery holder
