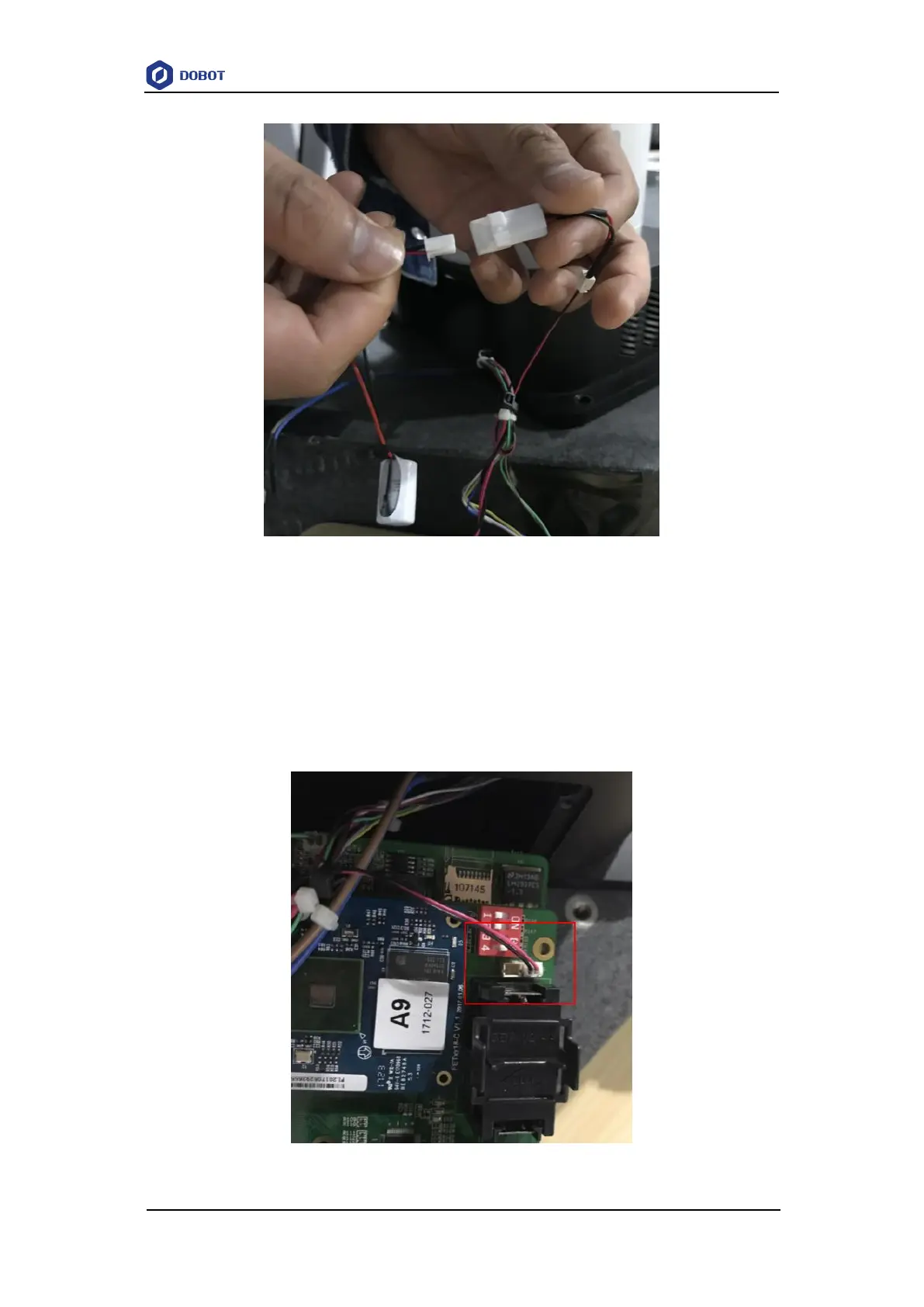

Figure 7.9 Disconnect the connector of the battery from the battery adaptor cable
If a fuse is not installed on the battery, please remove the cover of the battery
holder to take out the original battery and unplug the battery connector of bus
cable connecting to the battery holder, as shown in Figure 7.10.
After removing the original battery, please wrap the battery connector of the bus
cable with insulating tape to prevent short circuit.
Figure 7.10 Connection between the battery and robotic arm
