Operation Summary
Instructions for Use Apollo SW 4.5n 119
Part Number: 9053586, 3rd edition
Leakage is tested in the automatic (mechanical)
ventilation line (leak (system)) and in the overall
system (leak (Man/Spont)).

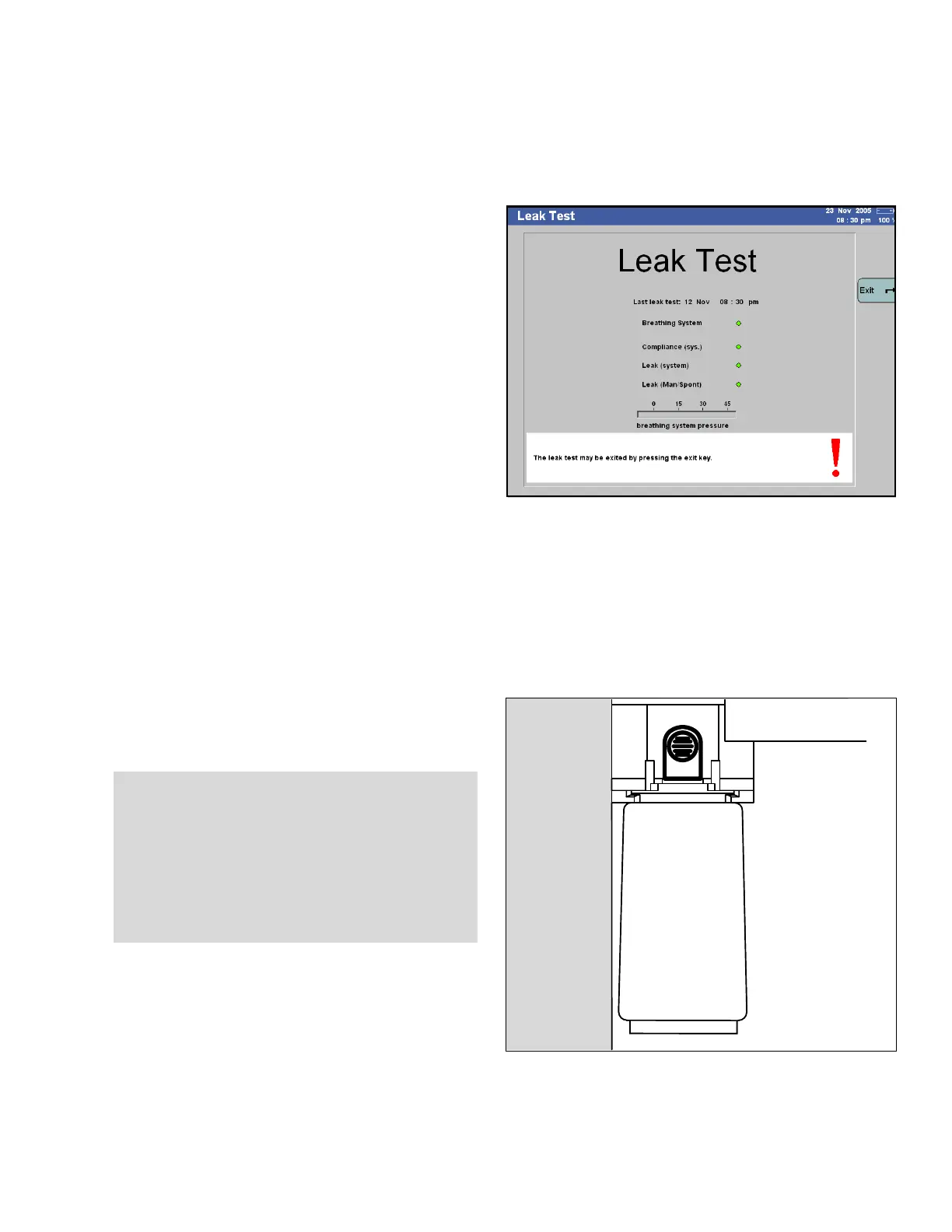

Figure 57. Leak test Results ScreenThe clock symbol disappears when the test is
complete and Apollo displays the following test
results:
The results of the leak test are displayed on the data
screen at all times.
To return to the standby screen:
1. Press the >Exit< key (1 in Figure 57).
2. Turn the handwheel of the vaporizer being tested
to the >0< position.
Repeat leak test for each additional installed
vaporizer, if present.
Activating the CO2 bypass function
(Optional)
Figure 58. Release Button on CLIC Adapter1. Press the release button (1 in Figure 58).
The disposable absorber swings open on its
mounting. The breathing system is sealed at the
same time and ventilation continues.
– Breathing system Breathing System
– System compliance Compliance (sys.)
– Leak system Leak (system)
– Leak Man/Spont Leak (Man/Spont)
if applicable (values >150 mL/min), see “Leak
Man/Spont” on page 104.
WARNING!
Risk of increased inspiratory carbon dioxide
concentrations
CO
2 is not absorbed in the breathing system
when the absorber is swung out.
Always make sure the absorber is clicked into
place after installing or replacing.
