Screen timer

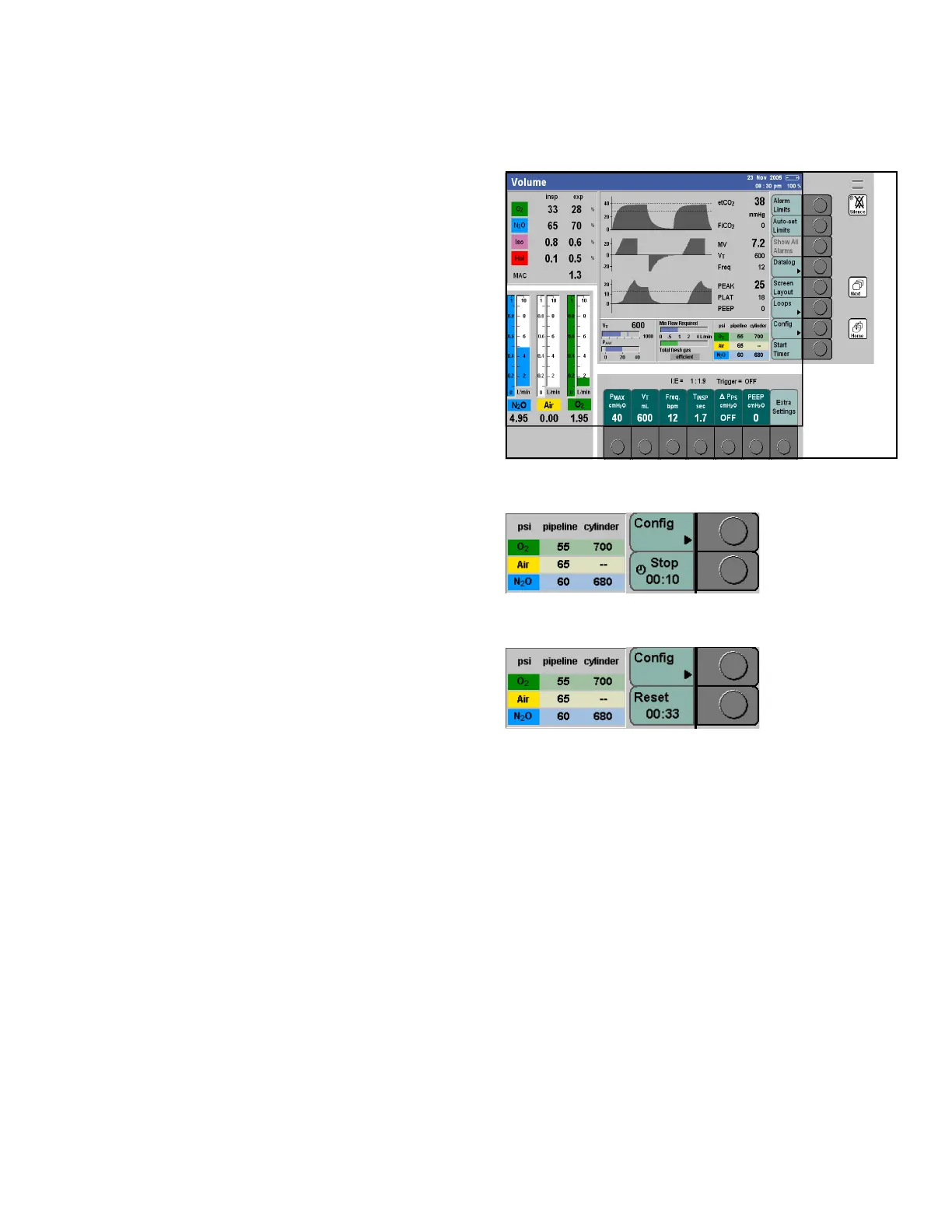

Figure 97. Location of Start Timer Key - Standard ScreenThe timer function allows the user to time an event
using a button available in any operating mode.
To start the timer:
– Press the >Start timer< button (1 in Figure 97)
on the standard, data, or trend screen.
To stop the timer:
Figure 98. Stop Timer Soft Key– Press the >Stop< button (1 in Figure 98).
The measured time is displayed on the key.
To reset the timer:
Figure 99. Reset Timer Soft Key– Press the >Reset timer< button
(1 in Figure 99).
The time is reset and the key label changes back to
>Start timer<.
