Monitoring
174 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
Data screen

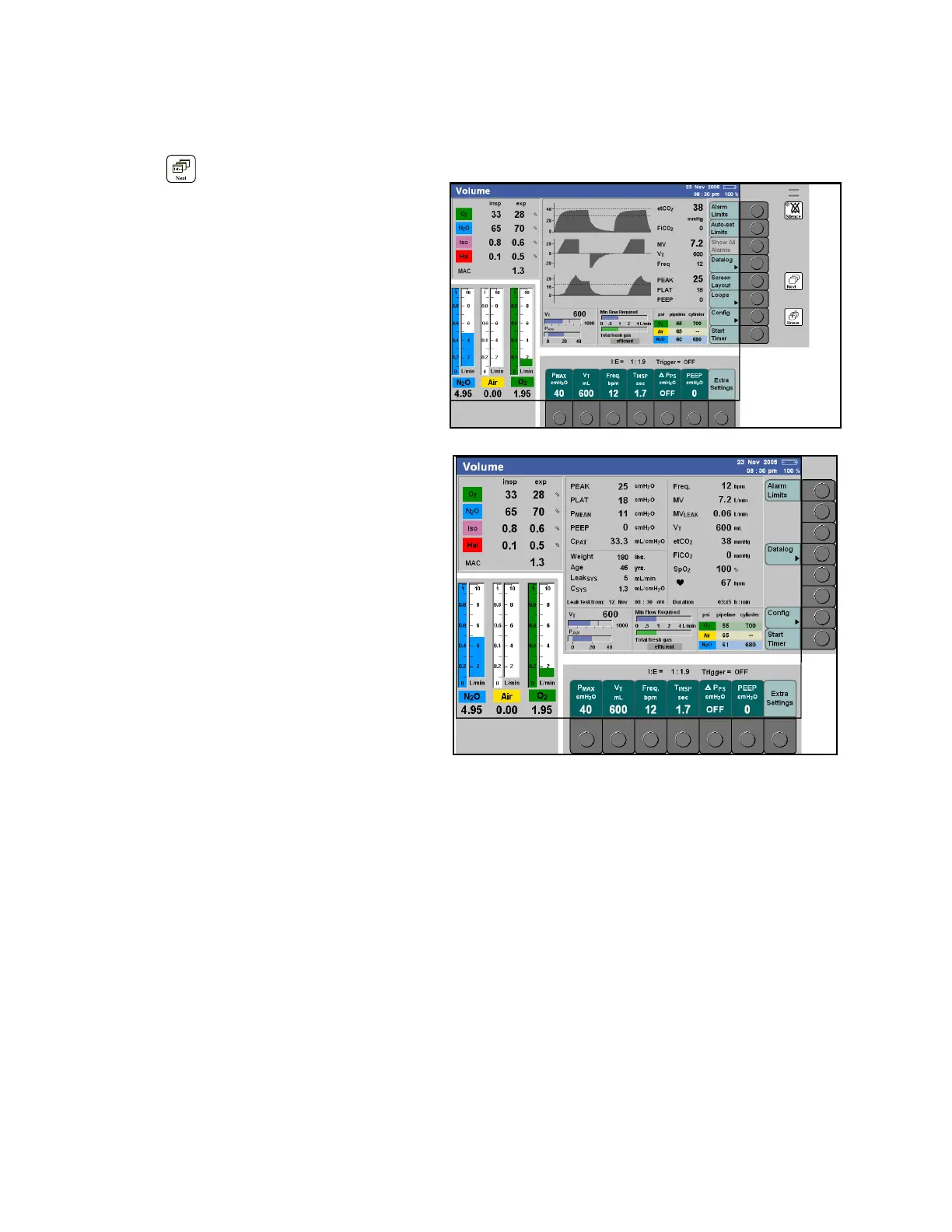

Figure 100. Location of Next Key1. Press the > < key repeatedly until the data
screen appears (1 in Figure 100).
Figure 101. The Data ScreenAll numerical values are displayed on the data
screen with their units of measurement (see Figure
101).
It shows patient data for all monitored parameters,
including data for optional SpO
2 and pulse (if
available). System compliance C
SYS and leakage
Leak
SYS, along with the date and time of the last leak
test, are displayed in the middle left part of the data
screen. The modules displayed below and the
numerical values are the same as those configured
for the standard screen (see “Screen layout” on
page 156).
1

Dräger Apollo Specifications

General

Type	Anesthesia Workstation
Gas Supply	O2, N2O, Air
Integrated Monitoring	Yes
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Vaporizer	Dräger Vapor 2000
Patient Monitoring	ECG, SpO2, NIBP, Temperature
Power Supply	100 – 240 VAC, 50/60 Hz
Tidal Volume Range	20-1500 ml
Vaporizer Mounts	Up to 2
