Dräger Apollo User Manual

Monitoring
172 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
Datalog

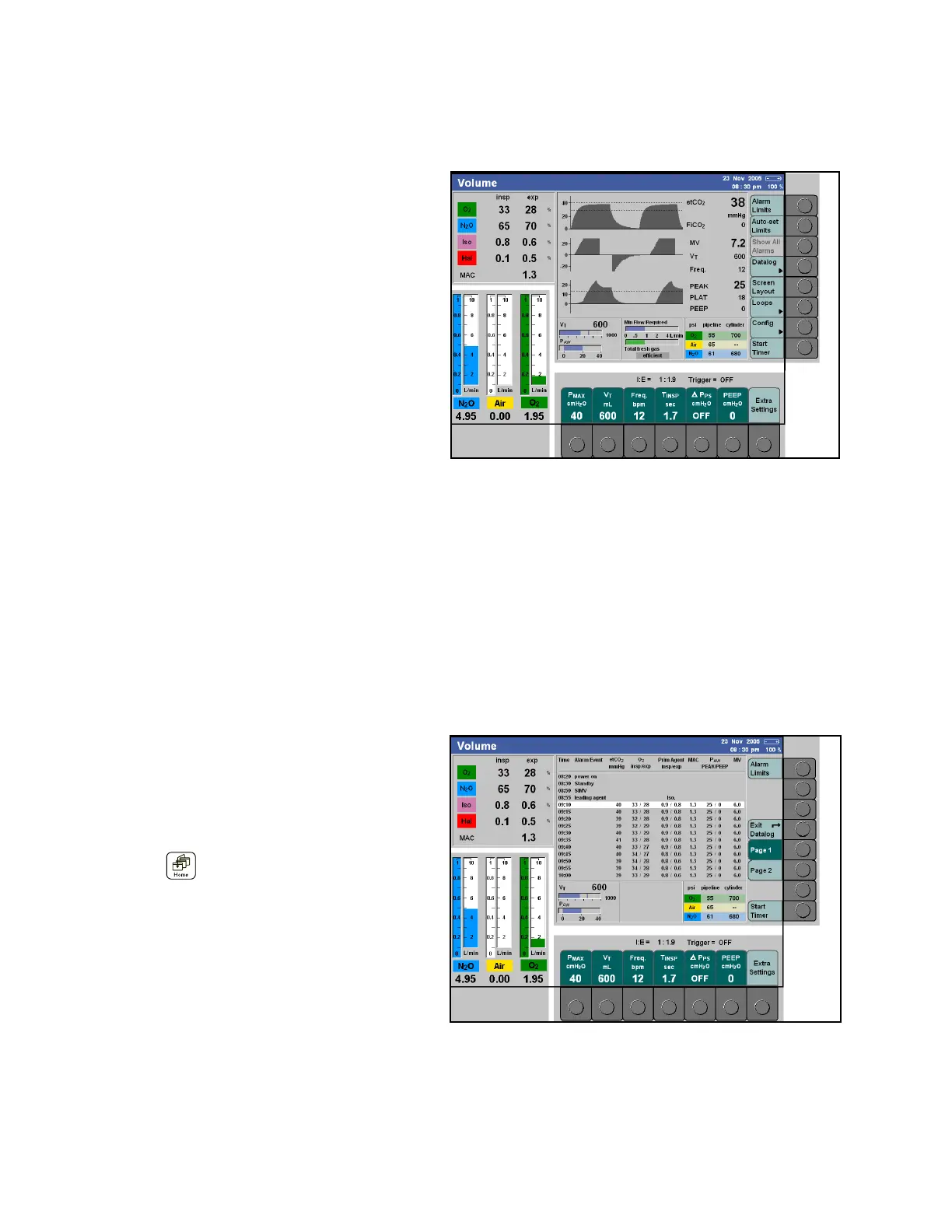

Figure 95. Datalog Button - Standard ScreenThe Datalog is a chronological record of measured
values and events that occur during the case. The
Apollo automatically records events such as
performed or canceled tests, changes of agent, and
changes of ventilation mode (followed by the date).
At the end of each case, the case duration, the use of
each fresh gas, patient uptake, and total use of
anesthetic agent are recorded. The device also
records the time when the device was switched off.
The datalog can also be configured by the user to
record each WARNING or CAUTION or to record
patient parameter data at specified intervals of 1, 2,
5, or 10 minutes. Each WARNING and CAUTION
entry is followed by the measured values recorded at
the time of the alarm’s occurence. See the chapter
“Configuration” for more information.
The Datalog can be accessed during operation as
well as in Standby. It consists of two pages:
>page 1< lists standard patient parameters, and
>page 2< lists more standard parameters as well as
optional parameters, such as SpO
2 and pulse.
To display the Datalog:
– Press the >Datalog< button on the standby
screen, data screen, or standard screen
(1 in Figure 95).
Page 1 of the Datalog is displayed (see Figure 96).
To display the second page:
Figure 96. Page 1 of the Datalog– Press the >Page 2< button on the Datalog
screen (1 in Figure 96)
To return to the previous screen
– Press the >Exit Datalog< button
(2 in Figure 96)
or
– Press the > < key on the side of the monitor
screen
To delete the Datalog:
Datalog and trend memory are deleted
simultaneously!
The Datalog will be maintained even after switching
off the Apollo completely. It can only be deleted by
using the “Delete Trend” functionality in Standby.
Refer to “Deleting the trend memory” on page 176.
1
1
2
