Dräger Apollo User Manual

Specifications
302 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition

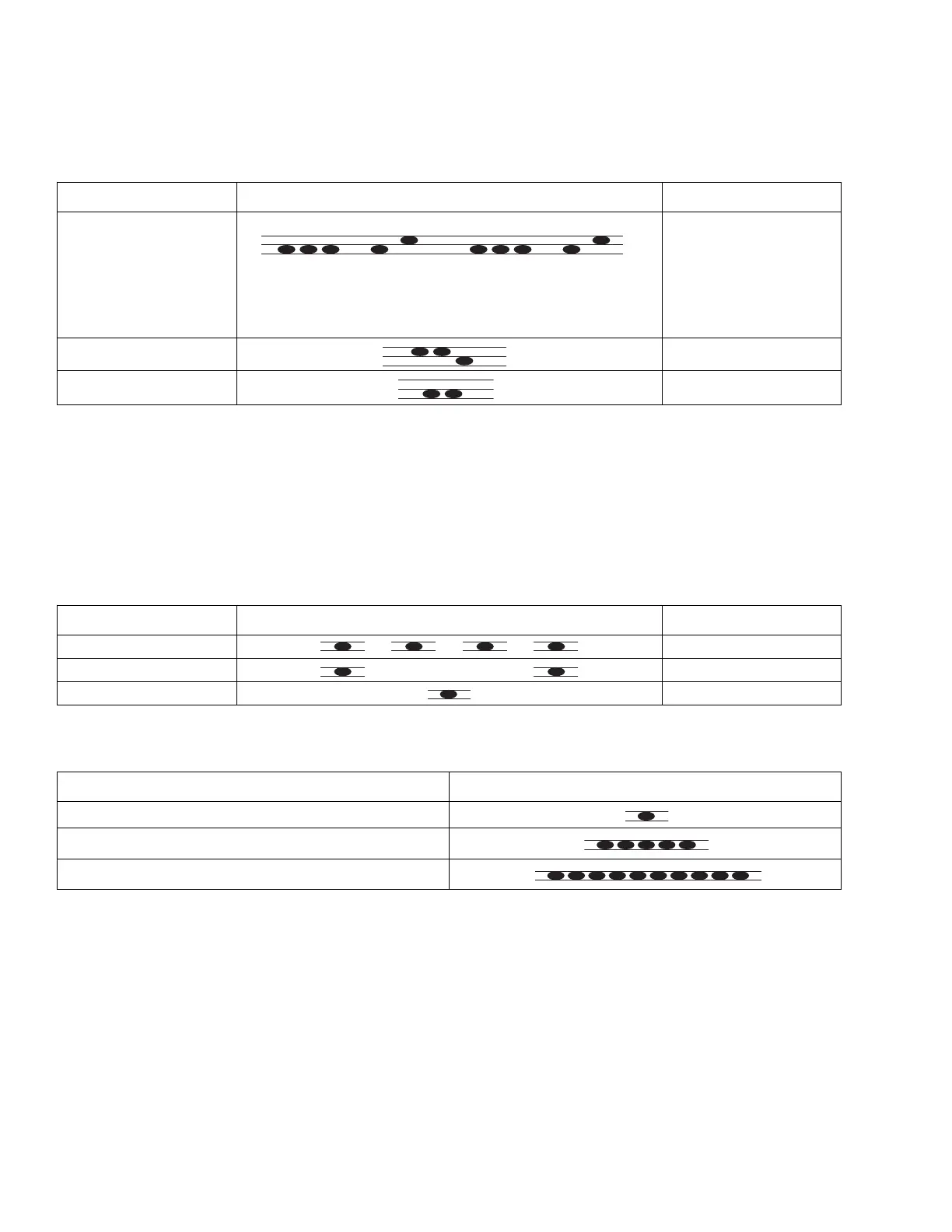

Schematic diagram of alarm tones
Tone sequence for various alarm priorities
If the primary loudspeaker fails, any acoustic alarm
signal will be issued by a backup speaker.
Backup speaker
The alarm volume for the backup speaker cannot be
adjusted. The backup speaker issues simplified
acoustic alarm signals. The pitch of the tone
sequence is the same, but the intervals are different:
Tone signals during operation
Alarm priority Tone sequence (according to IEC 60601-1-8) Repetitive
Warning
Depending on the overall alarm situation, this tone sequence may
be played as a 5-tone sequence due to the timing of the individual
alarms.
Yes
Caution Yes
Note No
Alarm priority Tone sequence Repetitive
Warning Yes
Caution Yes
Note No
When Signal
Therapy start or change of ventilation mode
Time-out is imminent because setting has not been confirmed.
Shutting down the device

Dräger Apollo Specifications

General

Type	Anesthesia Workstation
Gas Supply	O2, N2O, Air
Integrated Monitoring	Yes
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Vaporizer	Dräger Vapor 2000
Patient Monitoring	ECG, SpO2, NIBP, Temperature
Power Supply	100 – 240 VAC, 50/60 Hz
Tidal Volume Range	20-1500 ml
Vaporizer Mounts	Up to 2
