System Setup
86 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
1. Connect the potential equalization cable to the
potential equalization pin located at the back of
the anesthesia machine.
2. Connect the potential equalization cable to a
potential equalization connector of the hospital
(e.g., wall, ceiling supply unit, operating table).
3. Establish potential equalization to additional
devices.
Connecting the power supply

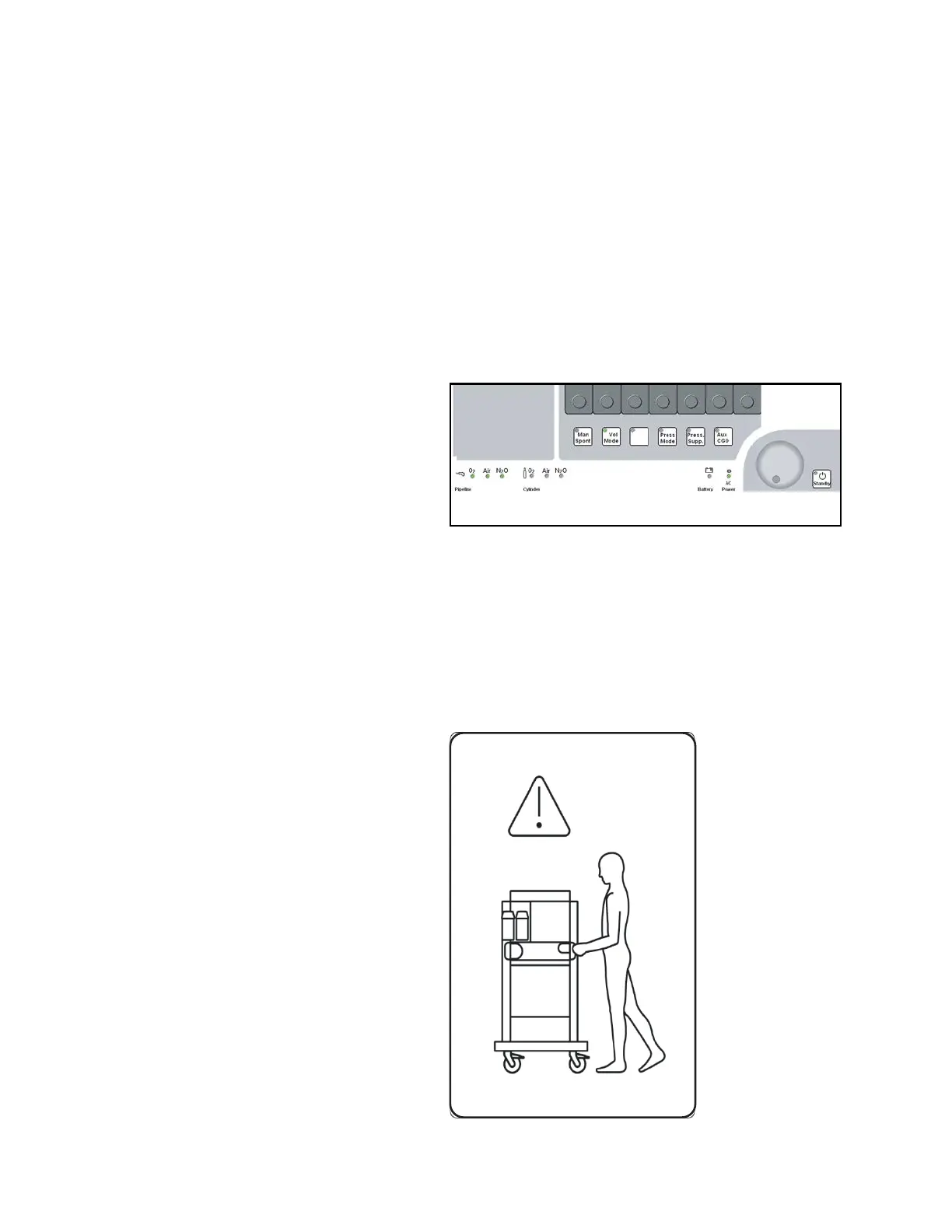

Figure 35. Location of AC Power LEDThe mains voltage must correspond to that specified
on the rating plate on the back of the machine.
1. Plug the mains power plug of the Apollo
anesthesia machine into the mains outlet. The
green LED labeled >
N AC Power< lights up
(1 in Figure 35).
Note: The main circuit breaker for the machine is
located on the back of the machine below
the pipeline supply connections and behind
the cylinder mounts (2 in Figure 33).
Note: The mains plug must be readily accessible
so that the power supply to Apollo can be
quickly interrupted if there is a device failure.
Information about transport within
the clinic
Transport is defined as:
– Moving the device, other than for pure calibration
purposes.
– Removing the ceiling/wall-mounted variant from
the corresponding holder.
When transporting the anesthesia device:
– Only move the device using the handles
provided for this purpose.
– The anesthesia device should only be moved by
persons who are physically able.
– Dräger recommends that the anesthesia device
should be moved by two persons. This also helps
to improve maneuverability.
– Take special care not to bump or knock the
device when moving it over uneven surfaces,
around corners or at thresholds (e.g. in doors or
elevators).
