Dräger Apollo User Manual

System Components
30 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition

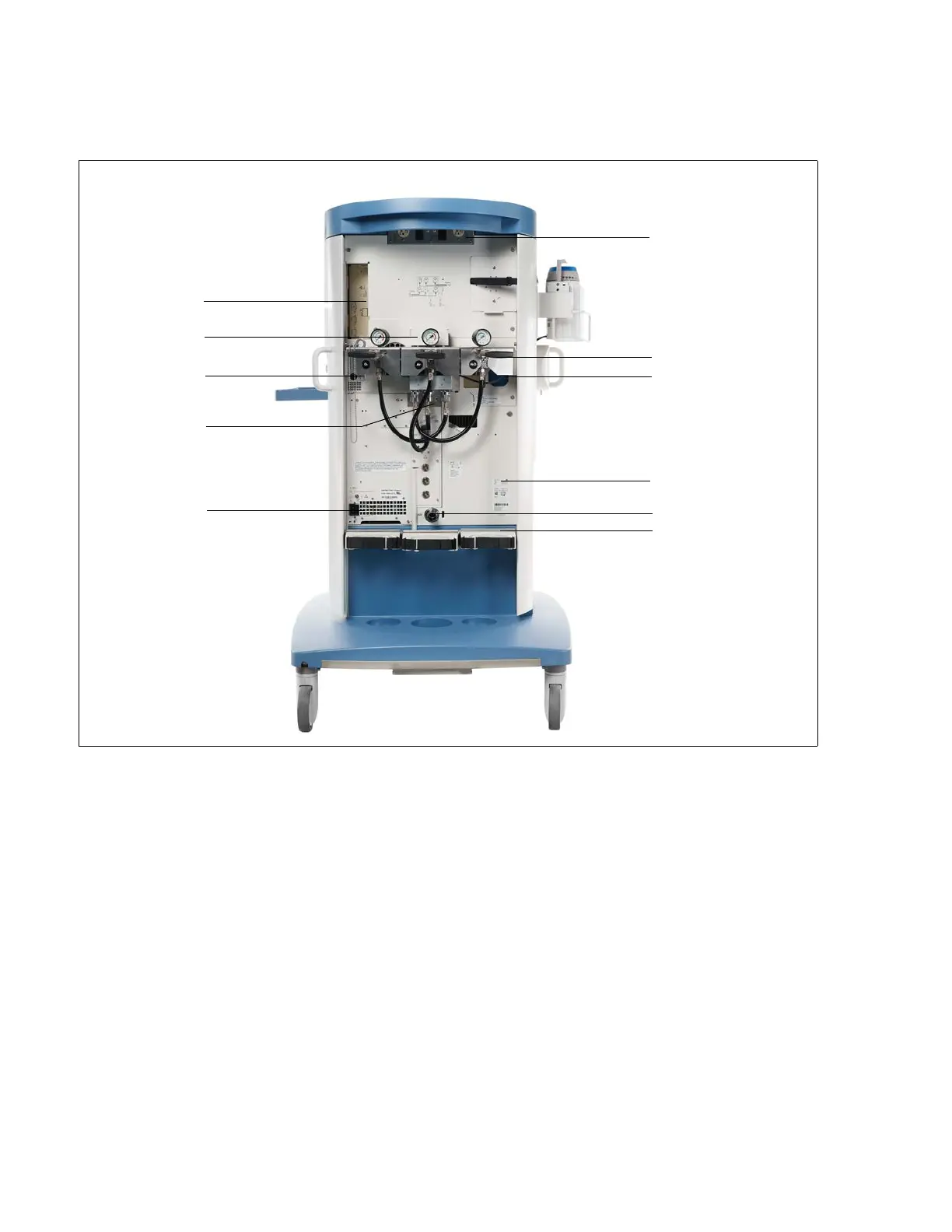

Machine Rear view
1
2
3
6
5
7
8
9
10
11
4
1 Auxiliary outlet panel
2 Cylinder tank yoke bar
3 Filter for fan
4 Type plate
5 Scavenging nozzle
6 Cylinder support bar
7 AC power connector
8 Gas supply block
9 Connector for optional halogen lamp (remove cap
before use). Use the lamp specified in the list of
accessories only.
10 Connectors (3) for backup gas cylinder pressure
sensors (covered; access from behind gas supply
block)
11 Interface panel
