Starting Manual/Spontaneous Ventilation
Presetting the Manual/Spontaneous mode

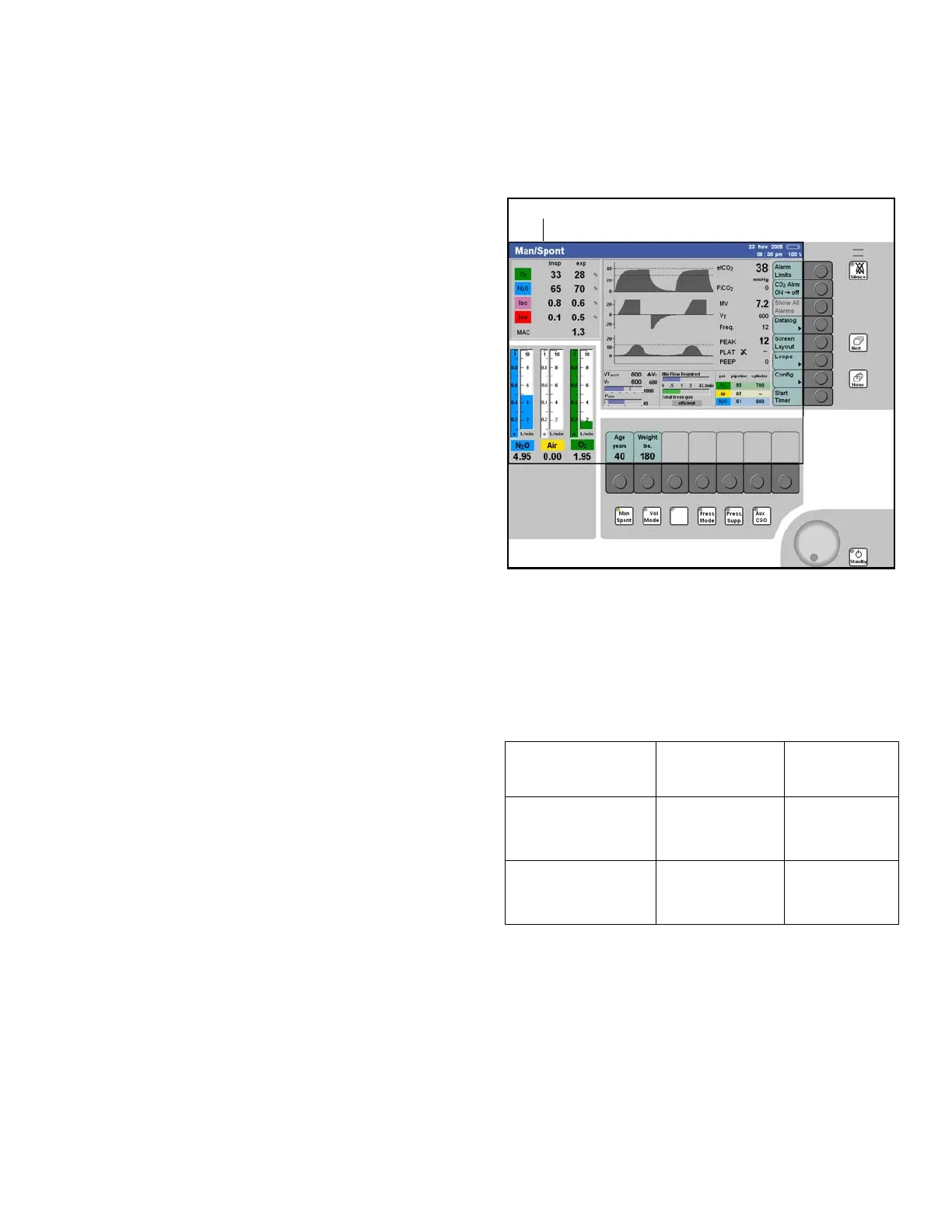

Figure 62. Man/Spont ScreenPrior to activating Man/Spont mode, the user can
preset the Man/Spont parameters.
1. Press the >Man Spont< key located at the
bottom of the display panel (1 in Figure 62). The
LED on the key and the status field at the top of
the screen (2 in Figure 62) flash on and off.
The row of buttons for the ventilation parameters
valid for ManSpont mode are displayed light
green (4 in Figure 62). This means that they are
not yet active.
2. Press the button for the parameter to be
changed; its color changes to yellow to indicate
that it’s selected.
3. Turn the rotary knob to adjust the parameter to
the desired value, and press the rotary knob to
confirm (3 in Figure 62).
Continue to set the values for the other
parameters.
The parameters that can be set for ManSpont
mode are shown in Table 3, along with their
adjustment ranges and factory default values.
The patient’s ideal body weight is the actual
weight minus estimated excess fat.
Starting the Manual/Spontaneous mode
Table 3 . Adjustment ranges and factory settings for
Man/Spont mode
4. When all the Man/Spont parameters have been
preset, press the rotary knob to start Man/Spont
ventilation (3 in Figure 62).
The parameter buttons turn dark green and
display the preset parameter values. The “Man/
Spont” indication in the status field stops flashing
and is displayed continuously. Manual/
Spontaneous ventilation begins.
5. Set an appropriate fresh-gas flow. Verify
adequate flow by checking the total flow meter.
If a Man/Spont parameter has to be changed
during ventilation:
– Press the button for the parameter to be
changed, turn the rotary knob to the desired
value, and press the rotary knob to confirm.
Vol . AF
Mode
1
4
2
3
Ventilation
parameters
Adjustment
ranges
Factory
settings
1)
1) Site defaults can be set instead.
Age
>Age<
[years]
<1 to 120 40
Ideal body weight
>Weight<
2)
[kg/lbs.]
2) Optional
1 to 120 kg,
1 to 240 lbs.
--
