Dräger Apollo User Manual

Cleaning and Maintenance
Instructions for Use Apollo SW 4.5n 247
Part Number: 9053586, 3rd edition
should be attached to the expiratory port of the
breathing system.
Note: Apollo (without accessories) is not made with
natural rubber latex. To minimize the risk of
exposure to latex, use latex-free breathing
bags and breathing hoses.
Note: Only use original sample line - other lines
may change the technical data of the device.
Reassembling the anesthetic gas receiv-
ing system AGS (Optional)

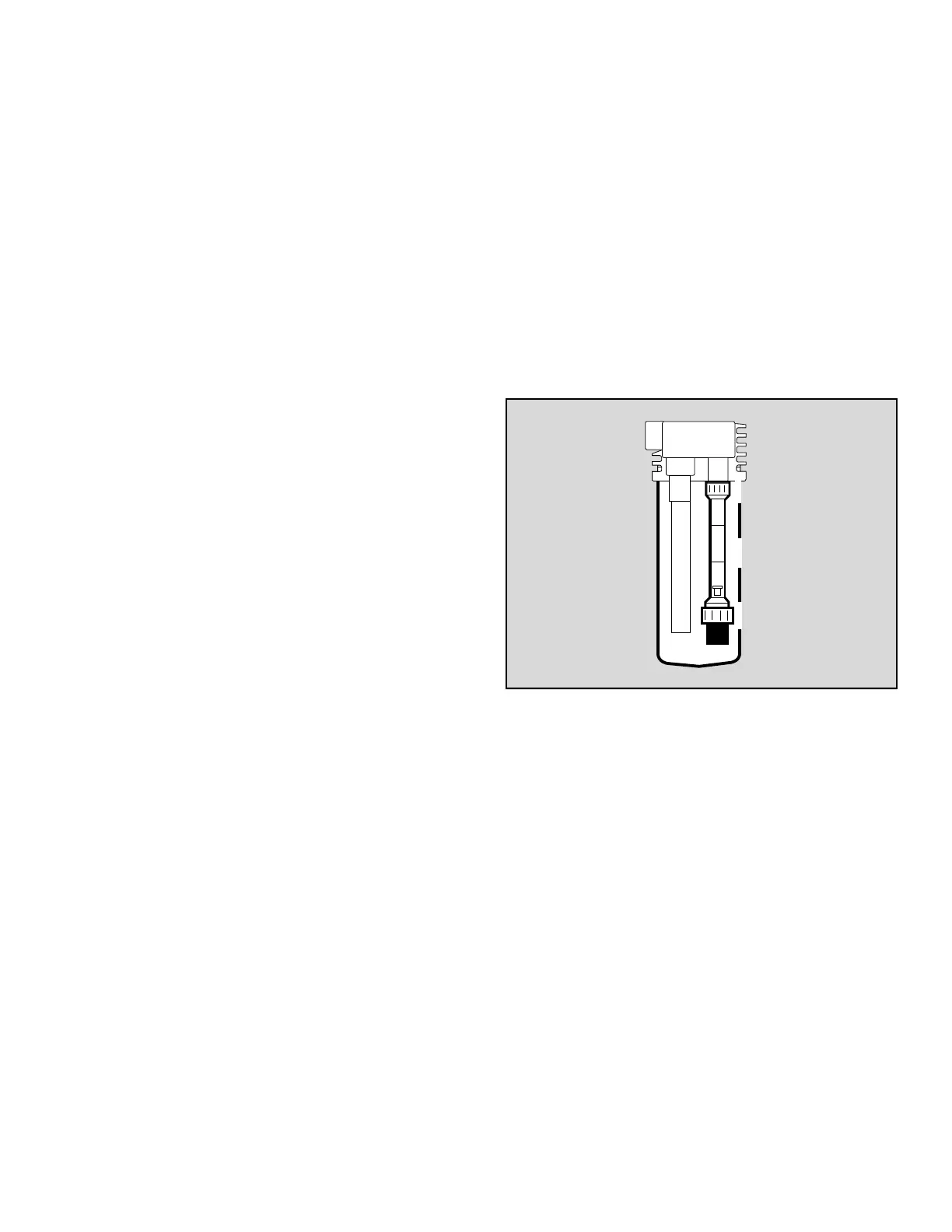

Figure 168. Reassembling the anesthetic gas receiving
system AGS
1. Install the particle filter and tighten the union nut
(1 in Figure 168).
2. Reinstall the flow tube (2 in Figure 168) with the
scale facing the front of the machine, and tighten
the union nut (3 in Figure 168).
3. Reinstall the buffer volume container into the
scavenger body.
2
D
3
1

Dräger Apollo Specifications

General

Type	Anesthesia Workstation
Gas Supply	O2, N2O, Air
Integrated Monitoring	Yes
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Vaporizer	Dräger Vapor 2000
Patient Monitoring	ECG, SpO2, NIBP, Temperature
Power Supply	100 – 240 VAC, 50/60 Hz
Tidal Volume Range	20-1500 ml
Vaporizer Mounts	Up to 2
